RIGOL Chapter 12 Signal Source
DS1000Z User’s Guide
12-4

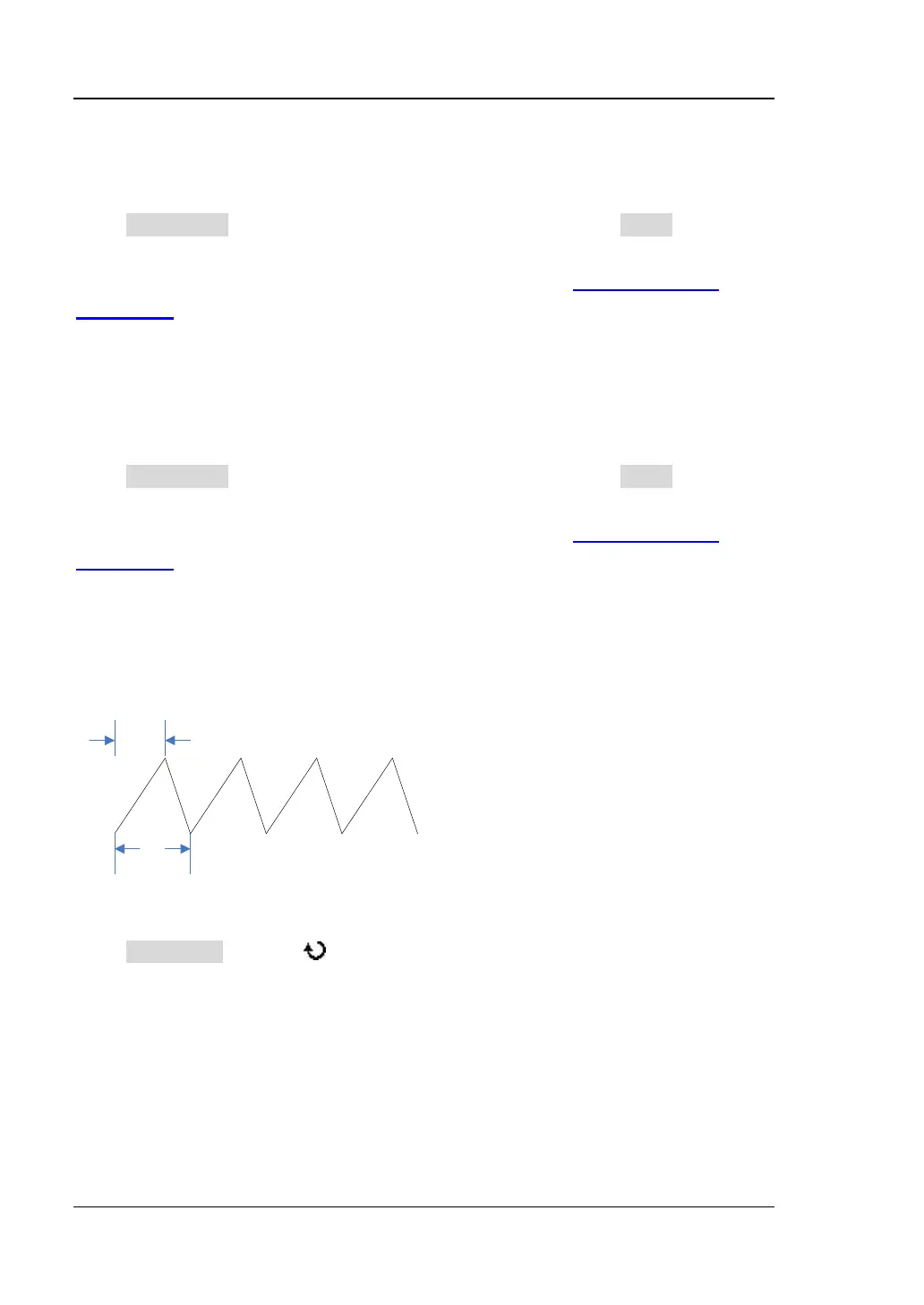

To Output Square Waveform
Press Src1 Setup to enter the waveform setting interface. Press Wave to select
“Square”, at this point, you can set relative parameter of the sine signal. For the
specified setting method, please refer to the instruction of “
To Output Sine
Waveform”.
To Output Ramp Waveform
Press Src1 Setup to enter the waveform setting interface. Press Wave to select
“Ramp”, at this point, you can set relative parameter of the sine signal. For the
specified setting method, please refer to the instruction of “
To Output Sine
Waveform”. “symmetry” is introduced only in this chapter.
Symmetry
Symmetry is difined as the percentage that the rising period of ramp waveform takes
up in the whole period.
T
t
Symmetry=t/T*100%
To set the symmetry
Press Symmetry and use to set the symmetry of the current ramp and the
range available is from 0% to 100%.
