Rigol DS1000Z Series User Manual

Chapter 1 Quick Start RIGOL
DS1000Z User’s Guide
1-19
User Interface
DS1000Z provides 7.0 inches, WVGA (800*480) 160,000 color TFT LCD.

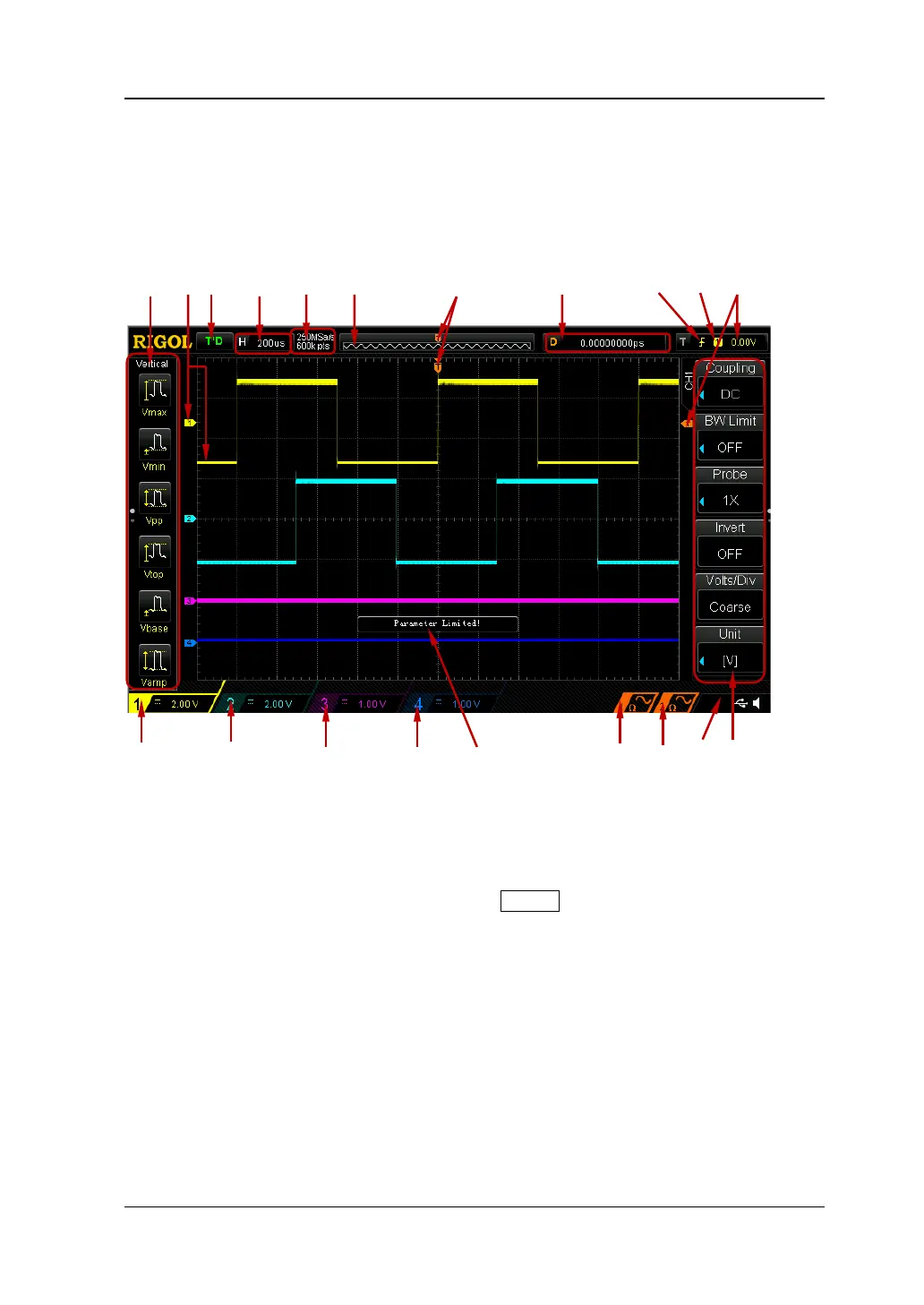

Figure 11 User Interface
1. Auto Measurement Items
Provide 12 horizontal (HORIZONTAL) and 12 vertical (VERTICAL) measurement
parameters. Press the softkey at the left of the screen to activate the
corresponding measurement item. Press MENU continuously to switch between
the horizontal and vertical parameters.
2. Channel Label/Waveform
Different channels are marked by different colors and the color of the waveform
complies with the color of the channel.
3. Status
Available states include RUN, STOP, T’D (triggered), WAIT and AUTO.
4. Horizontal Time Base
 Represent the time per grid on the horizontal axis on the screen.
12 13 14 15 16 17 18 19 20
1 2 3 4 5 6 7 8 9 10 11
