Chapter 5 LCD and Keypad

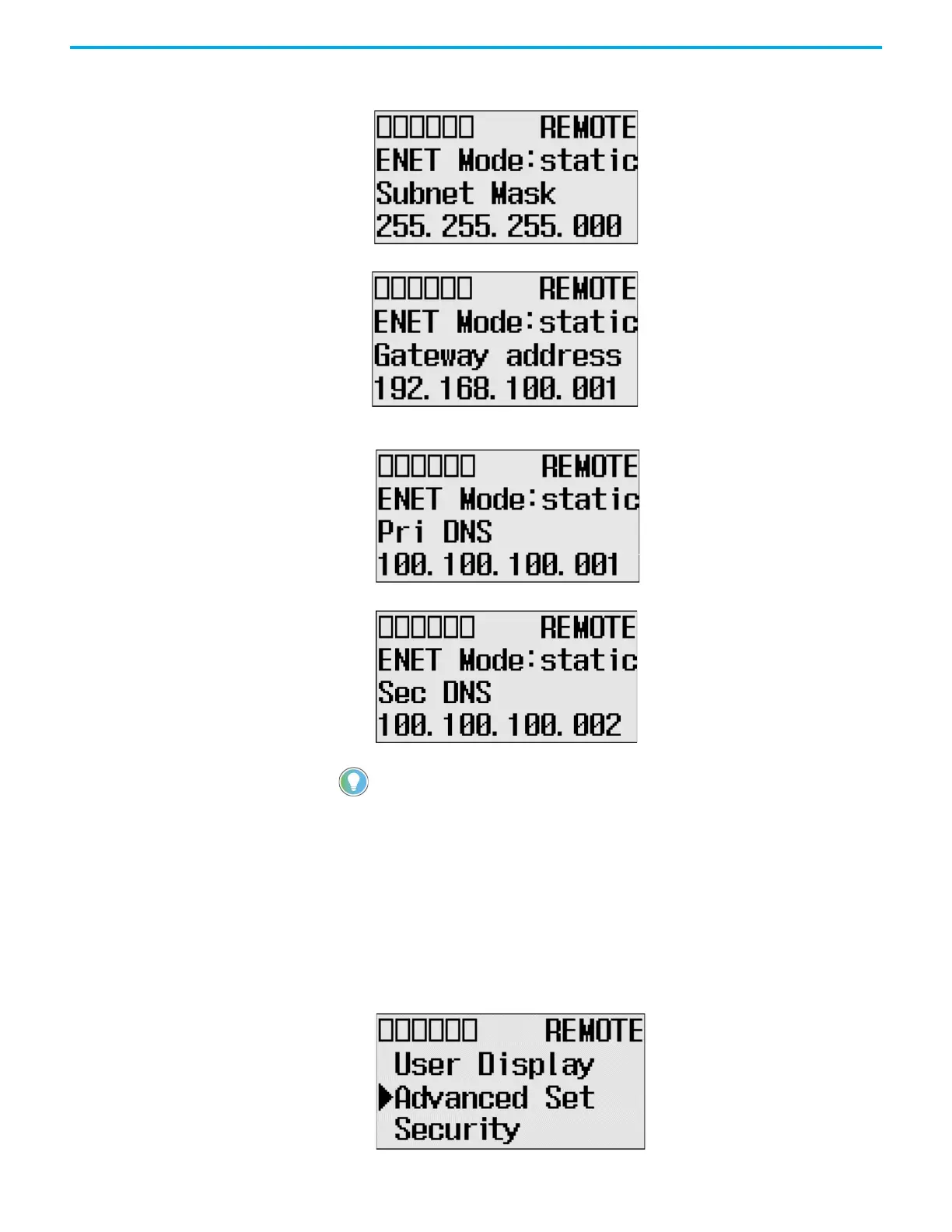

9. Configure the IP address and press OK. The Subnet Mask screen
displays.
10. Configure the Subnet Mask and press OK. The Gateway address displays.
11. Configure the Gateway address and press OK. The Primary DNS
displays.
12. Configure the Primary DNS and press OK. The Secondary DNS displays.
Configure the Ethernet Port
The Port Settings screen of the LCD displays the Ethernet port settings
assigned to the controller.
Follow these steps to edit the Ethernet port settings for your controller.
1. On the Main Menu screen, select Advanced Set by using the Up and
Down keys on the LCD keypad. If the menu items do not display on the
Main Menu screen as shown, scroll down the screen by pressing the
Down key.
To exit the Network configuration Menu, press ESC on the LCD keypad at any time.
To Next Page
