Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 27
Chapter 2 Install Your Controller

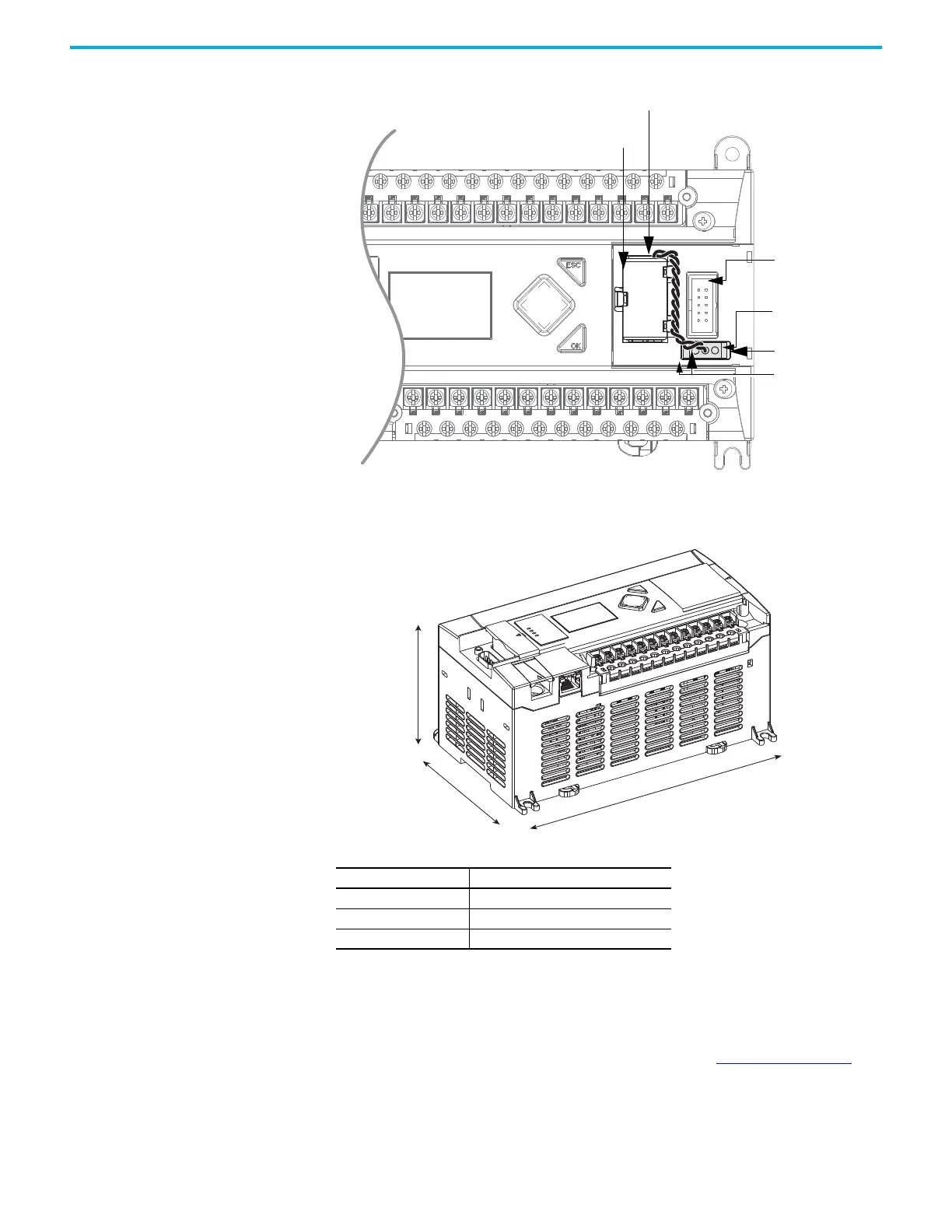

Figure 5 - Secure Battery Connector Wires
Controller Mounting
Dimensions
Mounting Dimensions
Controller and Expansion I/O
Spacing
The controller mounts horizontally, with the expansion I/O extending to the
right of the controller. Allow 50 mm (2 in.) of space on all sides of the controller
system for adequate ventilation. Maintain spacing from enclosure walls,
wireways, adjacent equipment, and so on, as shown in Figure 6 on page 28
.
1762 I/O expansion
bus connector
Battery wires
twisted pair
Battery
Battery wire
connector
Battery connector
Battery compartment
Dimension Measurement
A 90 mm (3.5 in.)
B 180 mm (7.087 in.)
C87 mm (3.43 in.)
1766-L32BWA, 1766-L32AWA, 1766-L32BXB, 1766-L32BWAA, 1766-L32AWAA, 1766-L32BXBA
