Appendix F MicroLogix 1400 Distributed Network Protocol

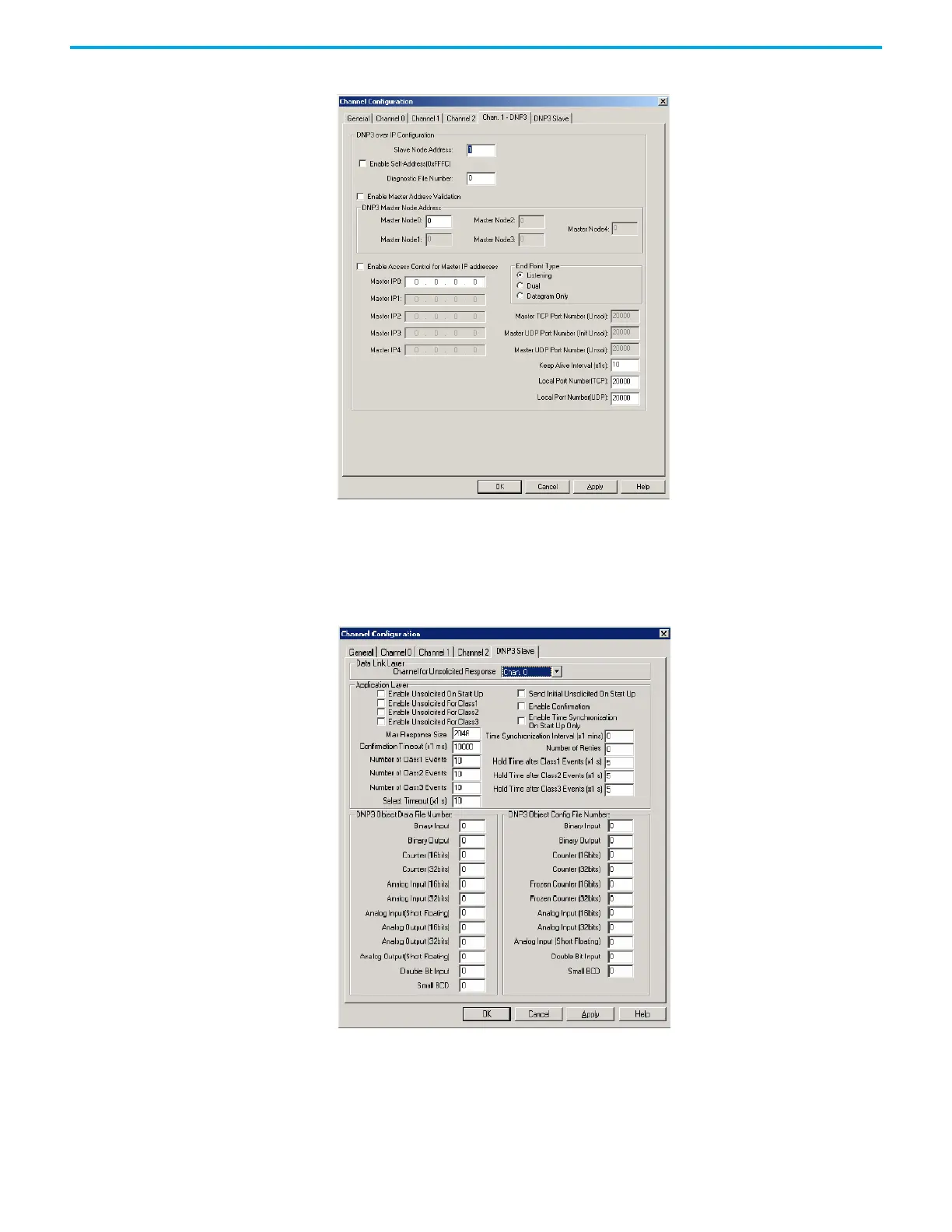

Link Layer related configuration can also be done in the Chan. 1 – DNP3 tab.
DNP3 Slave Application Layer Configuration
Application Layer related configuration can be done in the DNP3 Slave tab.
For the MicroLogix 1400 Series A controllers, you can see the following tabs.
If you want to communicate with DNP3 protocol using Channel 0 port, set
both Channel 0 and DNP3 Slave configurations. If you want to communicate
with DNP3 protocol using Channel 2 port, set Channel 2 and DNP3 Slave
configurations.
