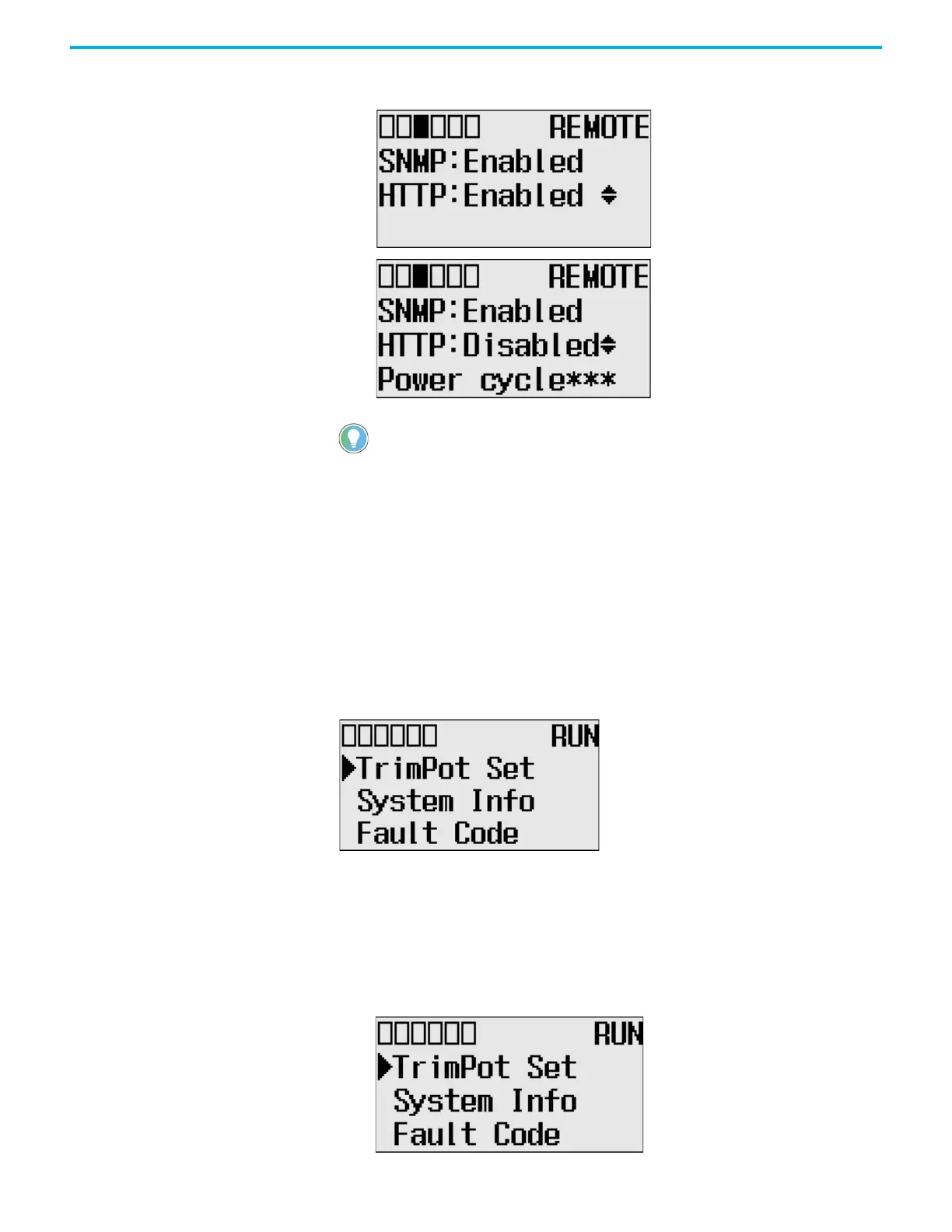

8. To change the HTTP setting, press Up or Down and press OK to apply the
change.
Trim Pots Trim Pot Operation
The MicroLogix 1400 controller provides two trimming potentiometers (trim
pots, POT0 and POT1) which allow modification of integer data within the
controller. The data value of each trim pot can be used throughout the control
program for timers, counters, analog presets, depending upon the
requirements of the application.
You can change the data value of each trim pot using the trim pot screens
provided by the LCD. To access to the Trim Pot Set screen, which is the top
screen for the trim pot functionality, select TrimPot Set on the LCD default
menu screen, as shown below, and press OK on the LCD keypad.
Trim pot data is updated continuously whenever the controller is powered-up.
Change Data Value of a Trim Pot
Follow these steps to change the data value of a trim pot, either POT0 or POT1.
1. On the Main Menu screen, select TrimPot Set by using the Up and Down
keys on the LCD keypad.
To exit the Protocol Setup Menu, press ESC on the LCD keypad at any time.
