Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 105
Chapter 5 LCD and Keypad

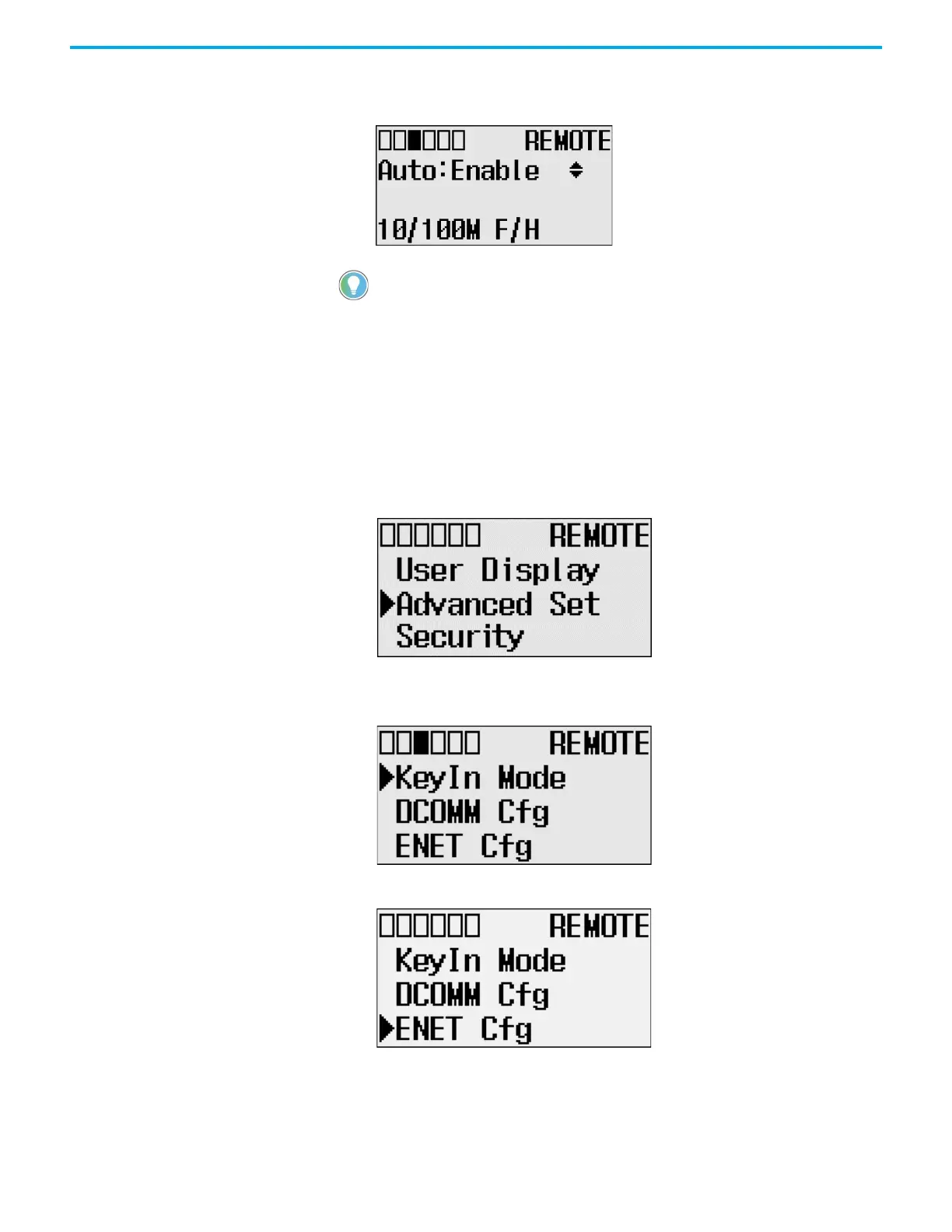

7. Press Up and Down to select auto disable menu, then press OK. The
fourth line on the LCD flashes. Press Up and Down to configure the
Ethernet port to 100 Mbps Full-duplex forced.
Configure Ethernet Protocol Setup
The Ethernet Protocol Setup screen of the LCD displays Ethernet Protocol
settings assigned to the controller.
Follow these steps to edit the Ethernet Protocol settings for your controller.
1. On the Main Menu screen, select Advanced Set by using the Up and
Down keys on the LCD keypad, as shown below. If the menu items shown
in the figure below are not displayed on the Main Menu screen, you need
to scroll down the screen by pressing the Down key.
Note: The Security menu is available in firmware revision 21.000 or later.
2. Press OK on the LCD keypad. The Advanced Settings Menu screen
displays, as shown below.
3. If ENET Cfg is selected, press OK. If not, select ENET Cfg using the Up
and Down keys, and then press OK.
Any change to this feature’s configuration does not take effect until after the next
power cycle.
