282 Rockwell Automation Publication 1766-UM001O-EN-P - September 2021
Appendix G Connect to Networks via Ethernet Interface
MicroLogix 1400
Performance Considerations
Actual performance of an MicroLogix 1400 controller varies according to:
• size of Ethernet messages.
• frequency of Ethernet messages.
• network loading.
• the implementation of and performance of your processor application
program.
MicroLogix 1400 and PC
Connections to the
Ethernet Network
The MicroLogix 1400 Ethernet connector conforms to ISO/IEC 8802-3 STD
802.3 and utilizes 10/100Base-T media. Connections are made directly from
the MicroLogix 1400 to an Ethernet hub or switch. The network setup is simple
and cost effective. Typical network topology is pictured in Figure 76 on
page 283.

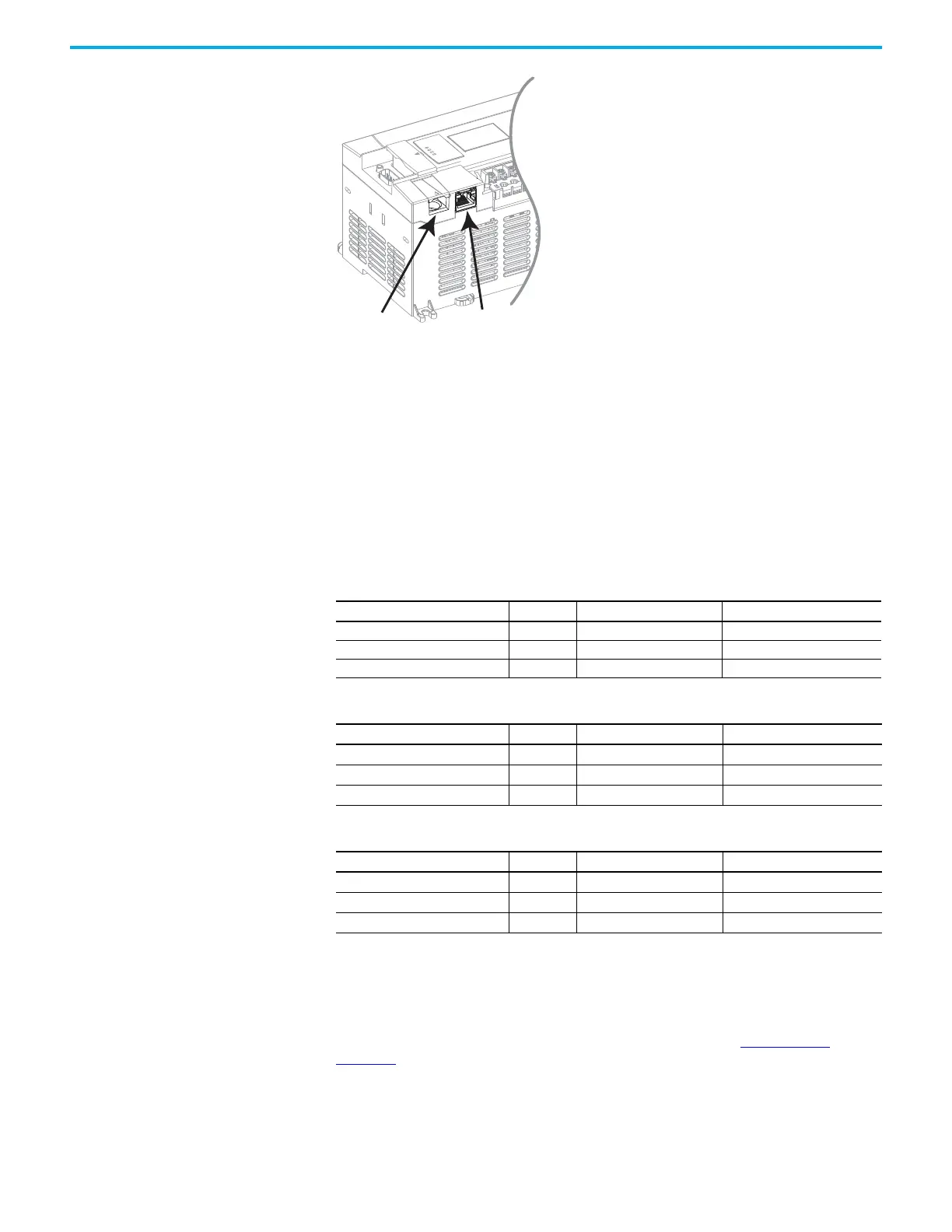

Channel 1
Ethernet
(10/100Base-T)
Channel 0
RS-232/RS-485
(DH-485, DF1, or ASCII)
Table 39 - Optimal Performance: MicroLogix 1400 controller to MicroLogix 1100 Series B and Series C OS
FRN 4 controller (2-node Ethernet network)
Operation Words MSG per Second Words per Second
Single Typed Read 120 20
Single Typed Reads 20 20 400
Single Typed Reads 100 20 2000
Table 40 - Optimal Performance: MicroLogix 1400 controller to RSLinx
Operation Words MSG per Second Words per Second
Single Typed Read 125 25
Single Typed Reads 20 25 500
Single Typed Reads 100 25 2,500
Table 41 - Optimal Performance: MicroLogix 1400 to MicroLogix 1400 controller
Operation Words MSG per Second Words per Second
Single Typed Read 120 20
Single Typed Reads 20 20 400
Single Typed Reads 100 20 2,000
