Appendix F MicroLogix 1400 Distributed Network Protocol

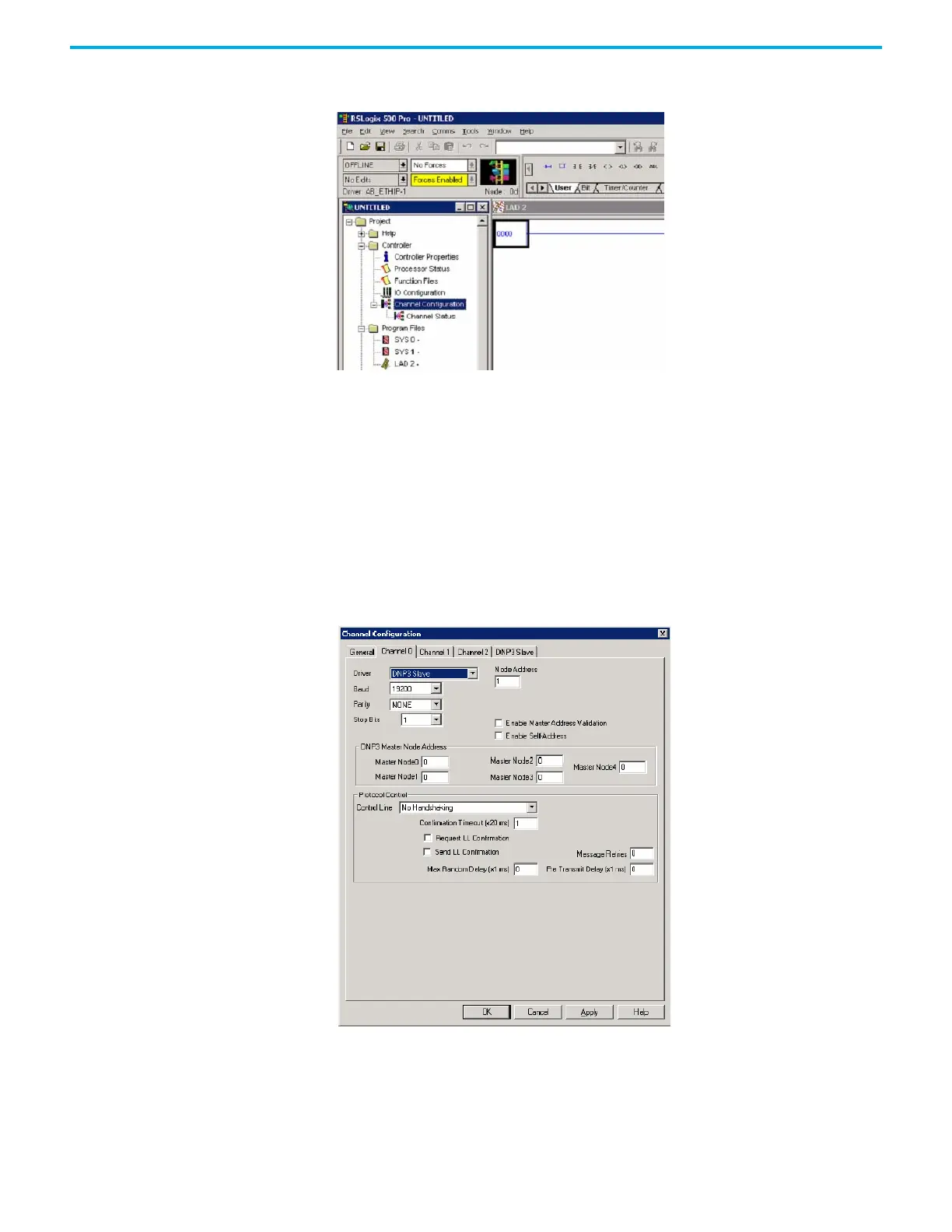

In RSLogix 500/RSLogix Micro, open Channel Configuration in the
MicroLogix 1400 controller project tree.
There are 4 configurations related to DNP3 protocol in RSLogix 500/RSLogix
Micro software:
• Channel 0 configuration
• Channel 2 configuration
• Channel 1 configuration
• DNP3 Slave Application Layer configuration.
Channel 0 and Channel 2 Link Layer Configuration
Link Layer related configuration can be done in the Channel 0 and/or
Channel 2 tab.
