Rockwell Automation 1766-L32BWAA User Manual

Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 143
Appendix A Specifications

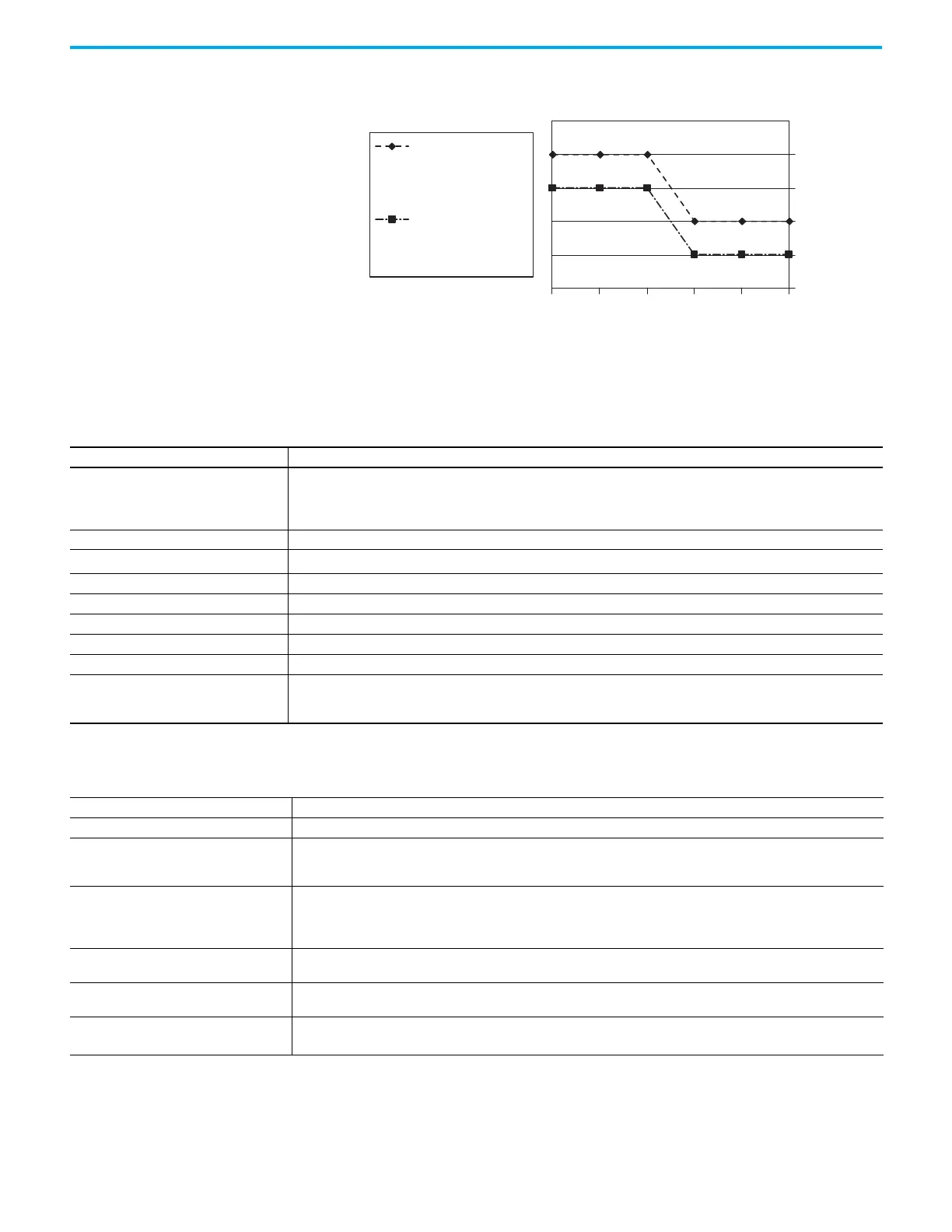

Figure 65 - Relays Used vs. Maximum Current per Relay (24V DC) 1762-OX6I
Analog Modules
123
3
4
5
6
7
8
45 6
Number of Relays Controlling Loads
Maximum Current per Relay (Amps)
Ambient Temperature
below 40 °C (104.°F)
Ambient Temperature
above 40 °C (104.°F)
Common Specifications – 1762-IF2OF2, 1762-IF4, 1762-IR4, 1762-IT4, 1762-OF4
Specification 1762-IF2OF2, 1762-IF4, 1762-IR4, 1762-IT4, 1762-OF4
Dimensions
HxWxD
90 x 87 x 40 mm
height including mounting tabs is 110 mm
(3.54 x 3.43 x 1.58 in.)
height including mounting tabs is 4.33 in.
Temperature, storage -40…85 °C (-40…185 °F)
Temperature, operating
-20…65 °C (-4…149 °F)
(1)
Operating humidity 5…95% non-condensing
Operating altitude 2000 m (6561 ft)
Vibration Operating: 10…500 Hz, 5 g, 0.030 in. max. peak-to-peak
Shock Operating: 30 g
Module power LED On: indicates power is applied.
Recommended cable
Belden 8761 (shielded)
— For 1762-IT4, shielded thermocouple extension wire for the specific type of thermocouple you are using. Follow thermocouple
manufacturer’s recommendations.
(1) See the module’s Installation Instruction for exact operating temperature range.
Environmental Specifications
Attribute Value
Emissions IEC 61000-6-4
ESD immunity
IEC 61000-4-2:
6 kV contact discharges
8 kV air discharges
Radiated RF immunity
IEC 61000-4-3:
10V/m with 1 kHz sine-wave 80% AM from 80…1000 MHz
3V/m with 1 kHz sine-wave 80% AM from 1.4…2.0 G Hz
1V/m with 1 kHz sine-wave 80% AM from 2.0…2.7 G Hz
EFT/B immunity
IEC 61000-4-4:
±2 kV @ 5 kHz on signal ports
Surge transient immunity
IEC 61000-4-5:
±1kV line-earth(CM) on shielded ports
Conducted RF immunity
IEC 61000-4-6:
10V rms with 1 Hz sine-wave 80% AM from 150 kHz…80 MHz
(1)
(1) For grounded thermocouples, the 10V level is reduced to 3V.
