Chapter 4 Communication Connections
For additional information on connecting the AIC+, see Advanced Interface
Converter (AIC+) User Manual, publication 1761-UM004.

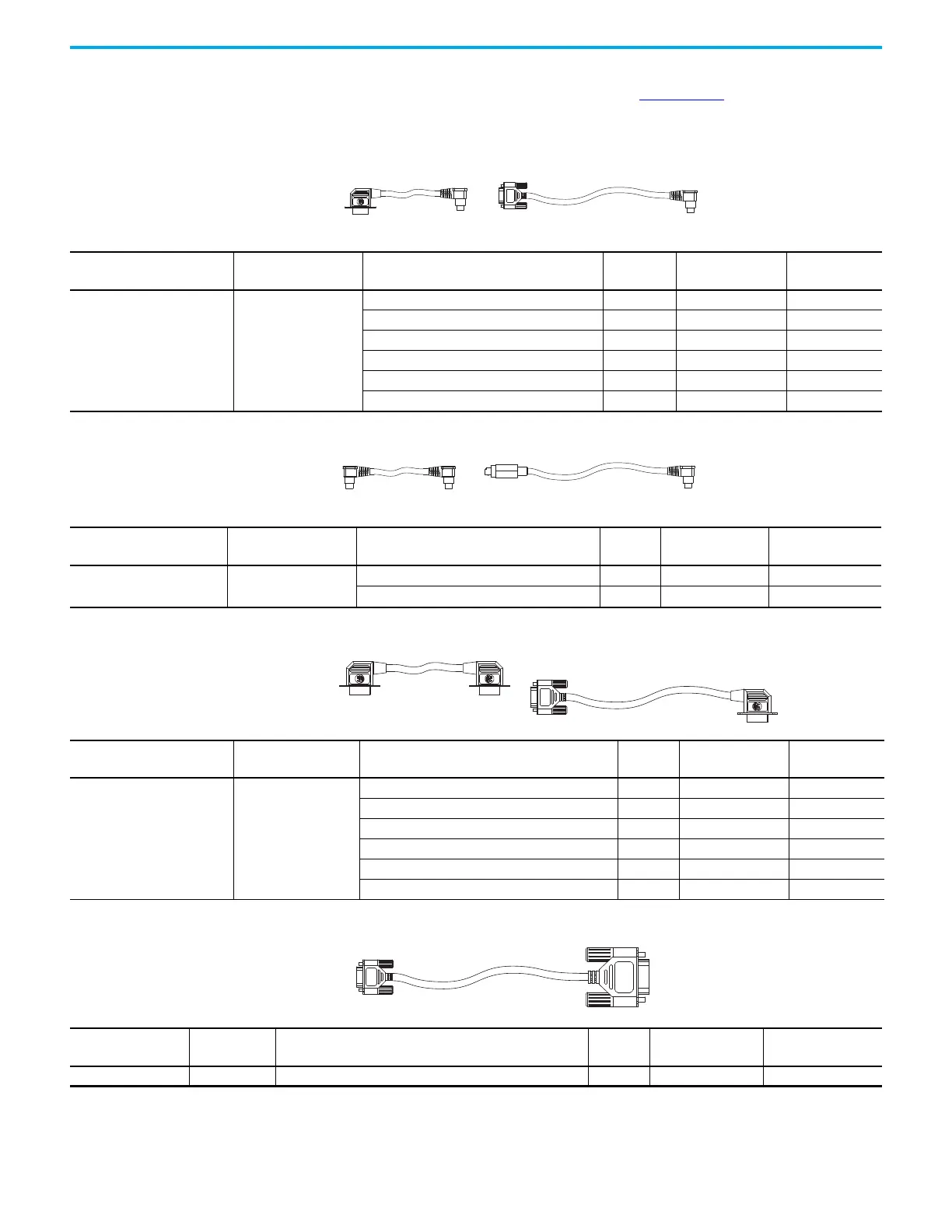

Cable Selection Guide
1761-CBL-PM02
(2)
1761-CBL-AP00
(2)
Cable Length Connections from to AIC+
External Power
Supply Required
(1)
Power Selection
Switch Setting
(1)
1761-CBL-AP00
(2)
1761-CBL-PM02
(2)
45 cm (17.7 in.)
2 m (6.5 ft)
SLC 5/03 or SLC 5/04 processors, ch 0 Port 2 Yes External
MicroLogix 1200 ch 0 Port 1 Yes External
MicroLogix 1400 ch 2 Port 2 Yes External
PanelView 550 through NULL modem adapter Port 2 Yes External
DTAM™ Plus / DTAM™ Micro Port 2 Yes External
PC COM port Port 2 Yes External
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
(2) Series C or later cables are required.
1761-CBL-HM02
(2)
1761-CBL-AM00
(2)
Cable Length Connections from to AIC+
External Power
Supply Required
(1)
Power Selection
Switch Setting
1761-CBL-AM00
(2)
1761-CBL-HM02
(2)
45 cm (17.7 in.)
2 m (6.5 ft)
MicroLogix 1200 ch 0 Port 2 No Cable
To port 2 on another AIC+ Port 2 Yes External
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
(2) Series C or later cables are required.
1761-CBL-AC00 1747-CP3
Cable Length Connections from to AIC+
External Power
Supply Required
(1)
Power Selection
Switch Setting
(1)
1747-CP3
1761-CBL-AC00
(1)
3 m (9.8 ft)
45 cm (17.7 in.)
SLC 5/03 or SLC 5/04 processor, channel 0 Port 1 Yes External
PC COM port Port 1 Yes External
PanelView 550 through NULL modem adapter Port 1 Yes External
DTAM Plus DTAM Micro Port 1 Yes External
Port 1 on another AIC+ Port 1 Yes External
MicroLogix 1400 ch 2 Port 2 Yes External
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
user-supplied cable
Cable Length Connections from to AIC+
External Power
Supply Required
(1)
Power Selection
Switch Setting
(1)
straight 9-25 pin — Modem or other communication device Port 1 Yes External
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
