Chapter 1 Hardware Overview
1762 Expansion I/O
1762 expansion I/O can be connected to the MicroLogix 1400 controller, as
shown below.

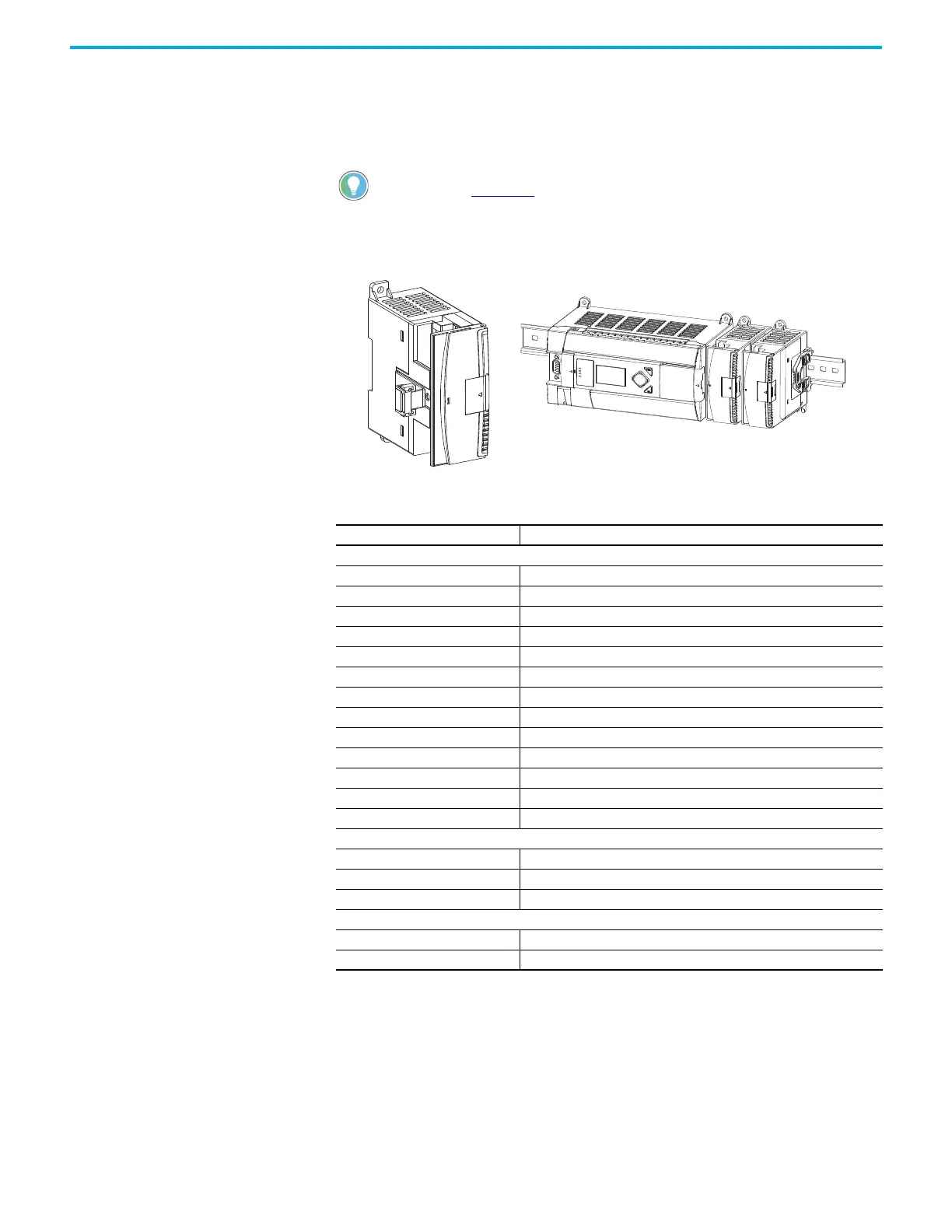

Figure 2 - 1762 Expansion I/O
Communication Cables Use only the following communication cables with the MicroLogix 1400
controllers. These cables are required for Class I Div. 2 applications.
• 1761-CBL-AM00 Series C or later
• 1761-CBL-AP00 Series C or later
• 1761-CBL-PM02 Series C or later
• 1761-CBL-HM02 Series C or later
A maximum of seven I/O modules, in any combination, can be connected to a
controller. See Appendix H
to determine how much heat a certain combination
generates.
Expansion I/O
Catalog Number Description
Digital
1762-IA8 8-Point 120V AC Input Module
1762-IQ8 8-Point Sink/Source 24V DC Input Module
1762-IQ16 16-Point Sink/Source 24V DC Input Module
1762-IQ32T 32-Point Sink/Source 24V DC Input Module
1762-OA8 8-Point 120/240V AC Triac Output Module
1762-OB8 8-Point Sourcing 24V DC Output Module
1762-OB16 16-Point Sourcing 24V DC Output Module
1762-OB32T 32-Point Sourcing 24V DC Output Module
1762-OV32T 32-Point Sinking 24V DC Output Module
1762-OW8 8-Point AC/DC Relay Output Module
1762-OW16 16-Point AC/DC Relay Output Module
1762-OX6I 6-Point Isolated AC/DC Relay Output Module
1762-IQ8OW6 8-Point Sink/Source 24V DC Input and 6-Point AC/DC Relay Output Module
Analog
1762-IF4 4-Channel Voltage/Current Analog Input Module
1762-OF4 4-Channel Voltage/Current Analog Output Module
1762-IF2OF2 Combination 2-Channel Input 2-Channel Output Voltage/Current Analog Module
Temperature
1762-IR4 4-Channel RTD/Resistance Input Module
1762-IT4 4-Channel Thermocouple/mV Input Module
1762 Expansion I/O 1762 Expansion I/O Connected to MicroLogix 1400 Controller
