Chapter 5 Dismantling components
156 SMSO-2-02.05- 15.07.03
5.4.16 Steam generator
For safety information see the section entitled
“Safety Regulations”"
Preparation
Disconnect supply connections
Dismantle the bean container
Dismantle the cup plate
Dismantle the left-hand casing

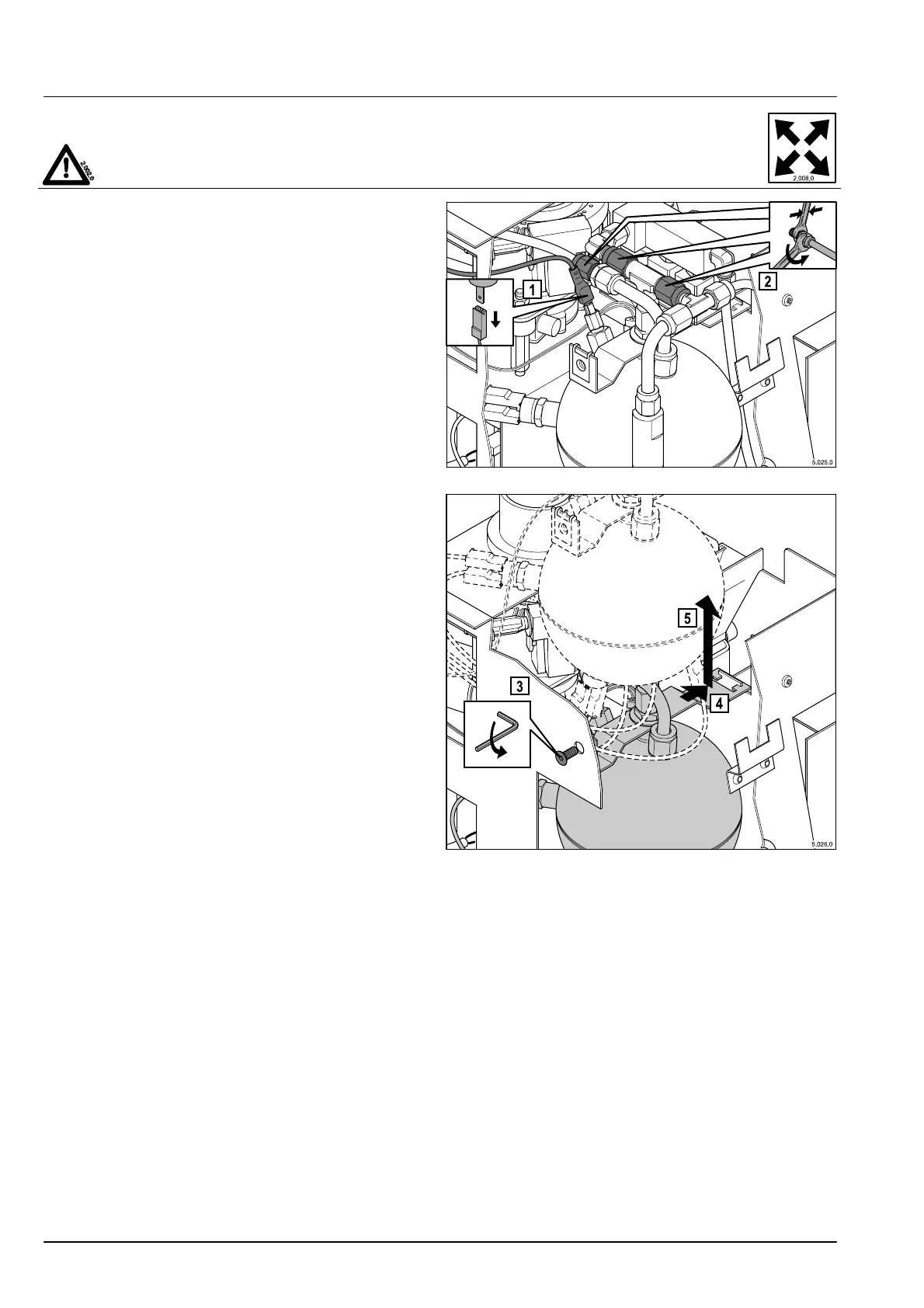

Dismantling
1. Disconnect the plug-in connection to the level probe
2. Loosen the union nuts at the steam connector T-piece;
remove the steam pipes together with the valves
3. Turn the fastening screw on the holder until it comes out
4. Push the holder containing the instant heater against the
centre of the machine and
5. move it out of the bracket in the holding blade, and lift it
up
