Chapter 6 Control system diagram
SMSO-2-02.06- 15.07.03 187

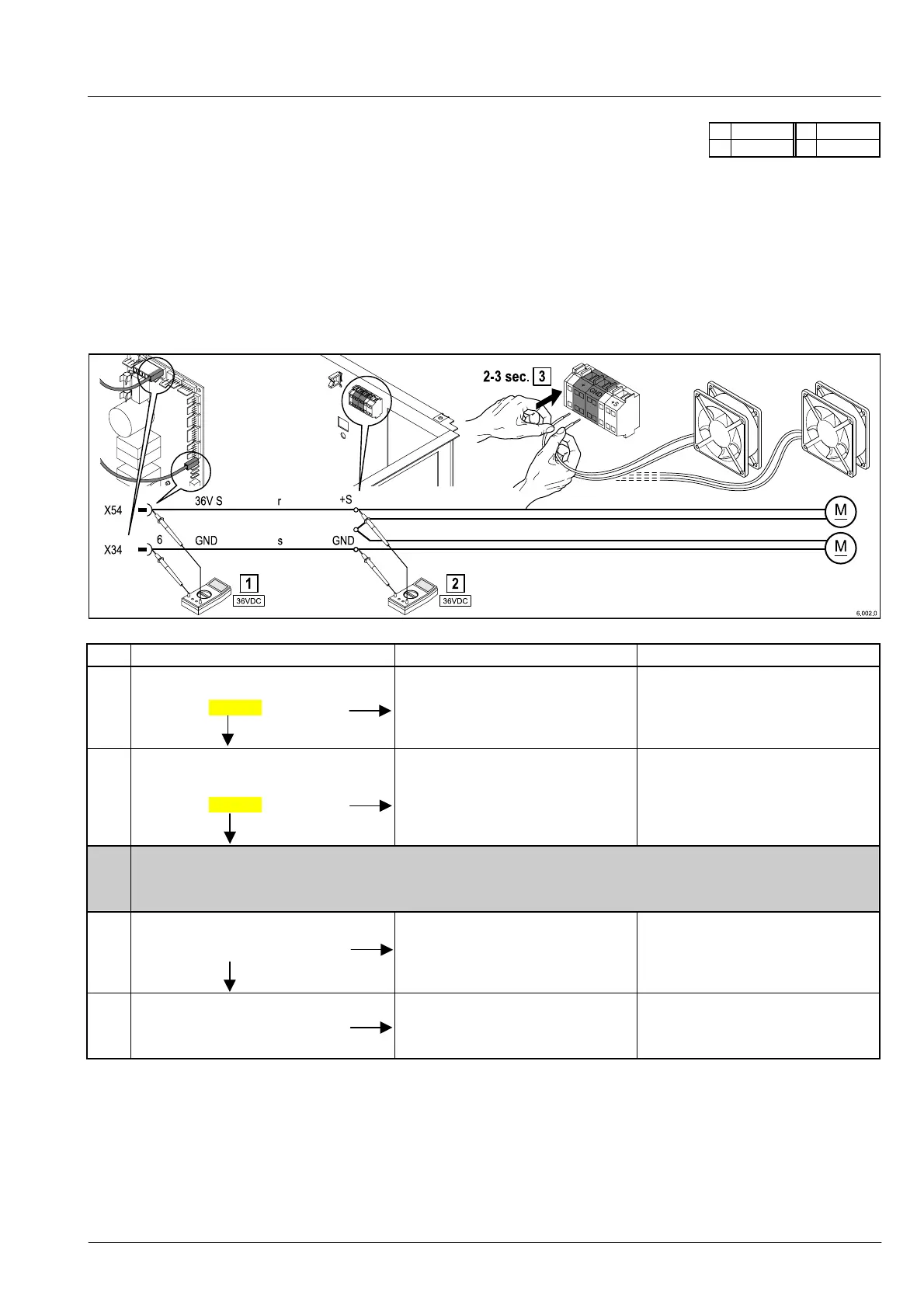

6.5.5 Ventilators ......... 01.04.2002
......... Serial no. 505123
36V 5V DC
36V S
L1, N
Operating condition
Both ventilators are operating with correct voltage supply, doors shut and software operating correctly. They are serial con-
nected.
Symptoms:
The ventilators are no longer operating.
Procedure
Process
step
Check Possible cause Remedy
1
Take voltage measurement at
plugs X34 6 and X54:
36 V DC ?
Check the voltage supply (see
“Power PCB, control voltage”)
36V S voltage supply faulty
2
Take voltage measurement at 36V
S and GND terminals on rear wall
of casing:
36 V DC ?
Plug contacts on power PCB
faulty / oxidised
Cable broken or pulled out of
terminal / plug
Check / replace plug contacts
Replace cable or reinsert it into
the terminal
Check connection cable / ventilators. To do this you need to connect each ventilator separately very briefly (2 or 3 sec-
onds) to the 36V voltage supply:
Switch off voltage
Loosen the cable from the terminals
3
Make a visual check as to whether
the ventilators function individually
(switch on the voltage for this test)
Ventilator defective
Ventilator cable faulty
Replace ventilator
Connect the cable to the two venti-
lators back onto the terminals. The
ventilators should now function.
Poor terminal contact or wire pul-
led out of terminal
Possible break in cable
Carefully make the connection
again to the terminal on the rear
casing panel.
Move the cable (if broken)
NO
YES
NO
YES
NO
YES
NO
