Schaerer Ambiente 2 Service Manual

Chapter 5 Dismantling components
158 SMSO-2-02.05- 15.07.03
5.4.17 Valve battery
For safety information see the section entitled
“Safety Regulations”"
Preparation
 Disconnect supply connections
 Dismantle the bean container
 Dismantle the cup plate
Dismantling

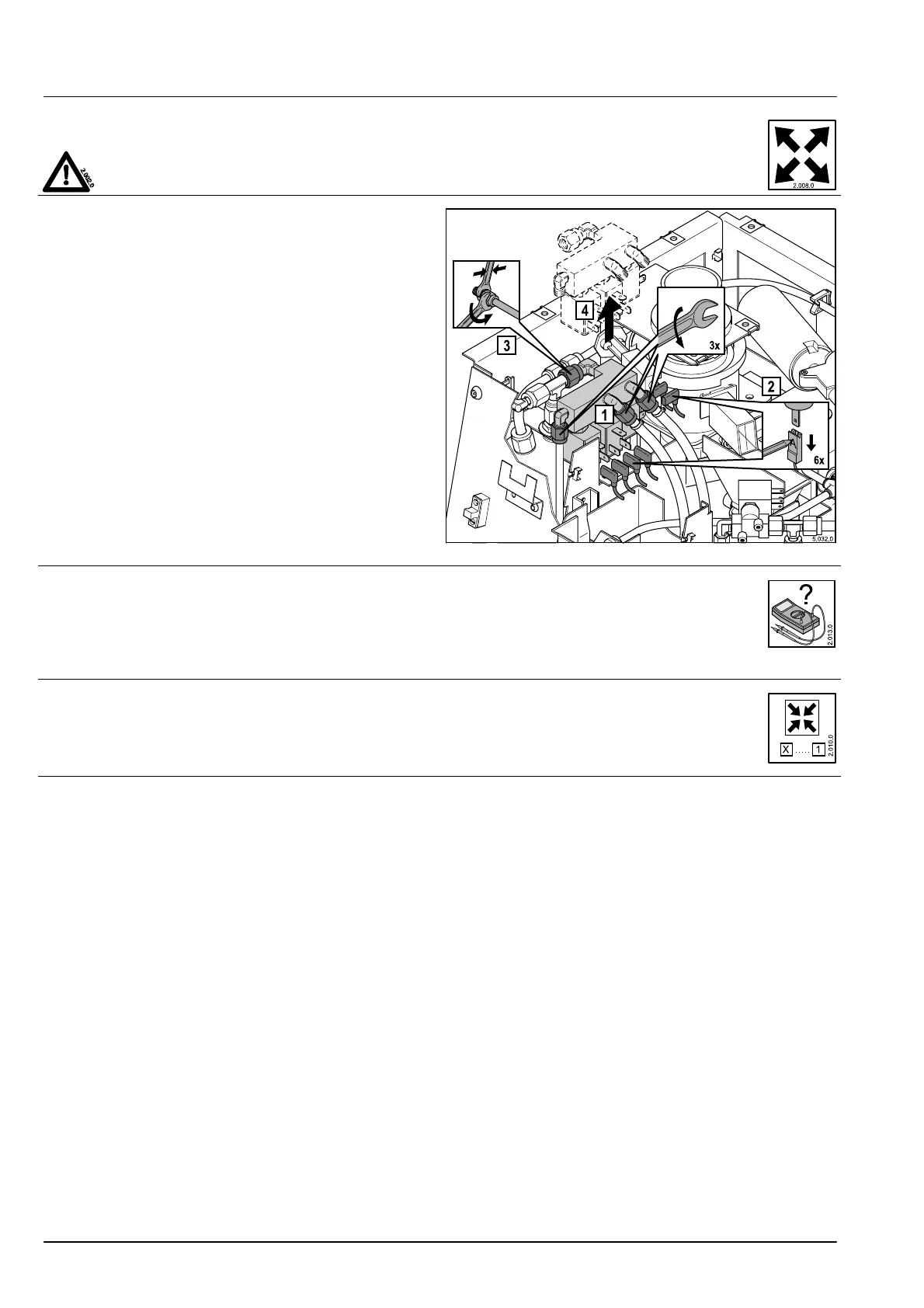

1. Loosen the union nuts on the steam outlet pipes and the
manometer pipe (optional feature)
2. Label the plug-in connections on the solenoid valves and
then pull out the plug
3. Loosen the union nuts on the T-piece on the steam
generator
4. Remove the valve battery
Repair (see 5.5.7)
 Dismantle /replace the valves (repair kit)
Electrical check
See section entitled “control system diagram”
 Discharge valve steam
 Discharge valve steam, milk
 Discharge valve steam, milk foam
Installation
Carry out assembly in reverse order to the dismantling pro-
cedure.
