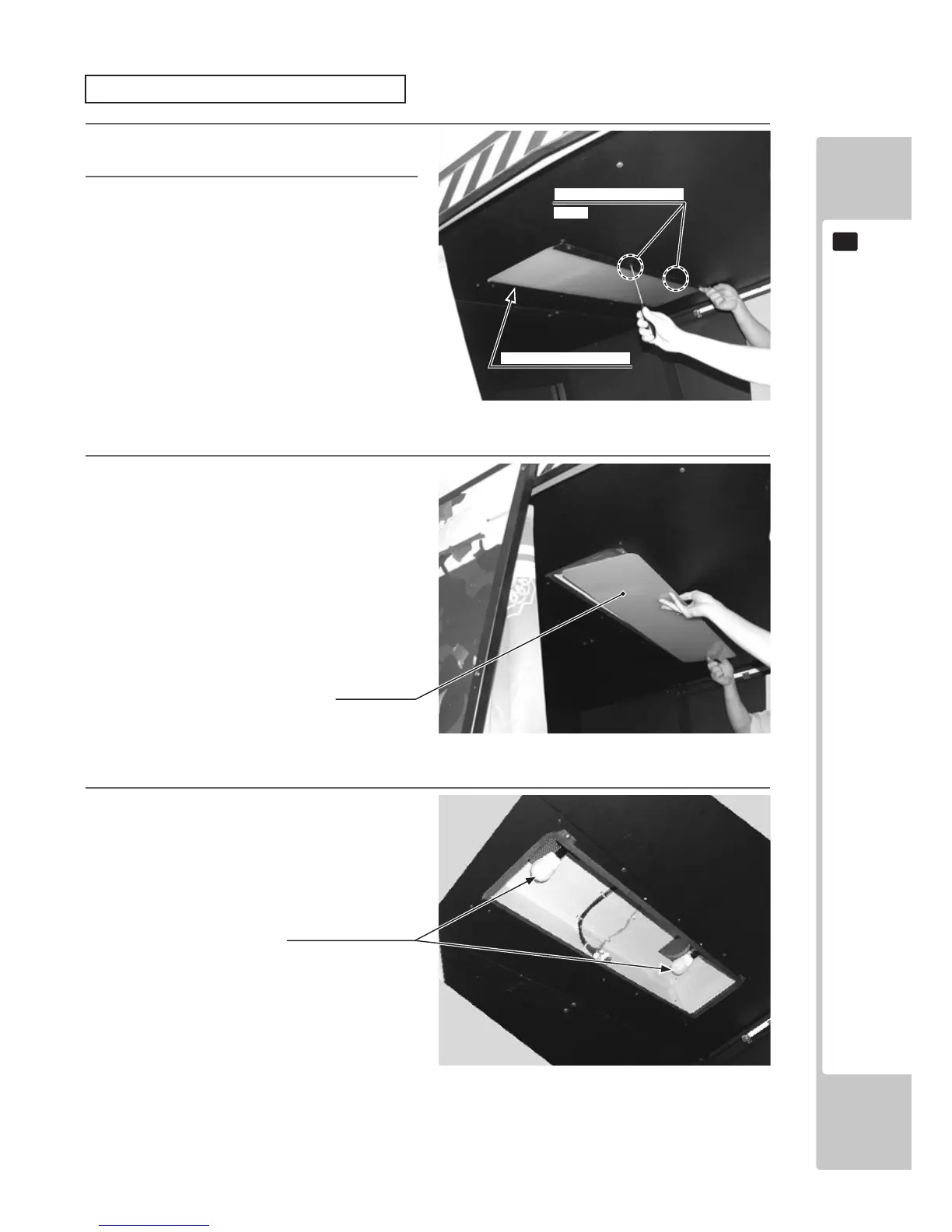

REPLACING THE FLUORESCENT LAMPS

103

Turn off the power.

Support the lamp acrylic bracket on the side

you want to change and remove the four truss

screws.

Remove the supported lamp acrylic bracket.

Replacing the Fluorescent Bulbs

FIG. 13d

Remove the lamp acrylic.

FIG. 13e

Replacetheuorescentbulb.

FIG. 13f

LAMP ACRYLIC BRACKET

LAMP ACRYLIC

FLUORESCENT BULB 9W

390-6844

TRUSS SCREW (4), black

M4x16

Default Chapter2
- Table of Contents2
- Introduction4
- Specifications4
1 Handling Precautions6
- Concerning the Sticker Display8
- Concerning Warning Displays8
2 Precautions Regarding Installation Location10
- Limitations of Usage11
- Operation Area12
- Installation and Operation Area12
3 Precautions Regarding Product Operation13
- Before Operation13
- During Operation (Paying Attention to Customers)15
4 Part Descriptions17
- Name of each Part17
- Major Measurements of each Unit Upon Purchase17
5 Accessories18
- DVD Drive Kit for LBG Eng19
6 Assembly and Installation20
- Tools Required for Assembly Operation22
- The Assembly of this Product Is Performed in the Following Steps22
- Connection of the DLP and Main Cabinet23
- For DLP Cabinet23
- For MAIN Cabinet23
- DLP Joint Side24
- DLP Joint Upper25
- Attaching the Side Cloth26
- Attaching the Top Board28
- Attaching the Billboard Box29
- Connection of the Seat Cabinet31
- Mat Brackets32
- Attaching Harness Covers33
- Harness Cover S33
- Attaching the Billboard34
- Attaching the Curtain36
- Installation of the Fluorescent Bulbs37
- Fixation to Installation Site38
- Bottom View38
- Aligning the Adjusters38
- Three Surface Views39
- Ventilation Space39
- Connecting the DVD Drive40
- Connection of Power and Ground43
- AC Unit44
- Engagement of Power Supply46
- Process for Turning on the Power48
- Confirmation of Assembly49
- Input Test Screen49
- Output Test Screen50
- Gun Calibration Screen50
7 Precautions When Moving the Machine51
- Moving the Machine51
- Separate Components When Moving over a Sloped or Stepped Area52
- Separating the Main Cabinet53
8 Game Description59
- Using the Control Unit60
- Targets60
- Game Rules61
- Action Icon61
- Mark61
- Mark Changes61
9 Explanation of Test and Data Display62
- Push Switch and Coin Meter64
- System Test Mode65
- System Test Menu Screen65
- Game Test Mode66
10 Projector77
- Cleaning the Screen78
11 Control Unit79
- How to Remove Control Unit80
- Adjusting or Changing the y Axis Volume88
  - Y Axis (up and Down) Volume89
  - Exchanging91
- Replacing the Trigger Switch94
- Greasing97
- Adjustment of Vibration Noise99
  - Handling the Coin Jam101
  - Cleaning the Coin Selector101
12 Coin Selector & Credit Settings101
- Coin Insertion Test102
- Credit Board Settings103
- Price of Play Settings Euro103
- VTS Credit Board Option Settings104
- Price of Play Settings UK105
13 Replacing the Fluorescent Lamps106
- Replacing the Billboard Box Fluorescent Lamp107
- Replacing the Fluorescent Bulbs108
14 Periodic Inspection109
- Periodic Inspection Table110
- Cleaning the Cabinet Surfaces110
15 Troubleshooting111
- Troubleshooting Table112
- Circuit Protector113
16 Game Board114
- How to Remove Game Board115
- Composition of the Game Board118
- Dip SW Setting118
17 Design Related Parts119
- Exterior119
- Interior119
18 Parts List120
- Top Assy LGJ121
- Assy Main Cabinet123
- Assy Front Cabinet125
- Assy Sub Cabi DLP127
- Assy Main BD128
- Assy Elec129
- Assy Rear Cabinet130
- Assy Push SW132
- Assy Button Box133
- Assy Sub Cabi Rear134
- Control Unit L136
- Control Unit R139
- Assy Motor142
- Assy Lamp Box143
- Assy Sub Cabi Lamp Box144
- Assy Front Door145
- Assy Front Door PCB146
- Assy Seat Cabinet147
- Assy Speaker Board149
- Assy Woofer Board150
- Assy Sub Cabi Seat151
- Assy DLP152
- Assy DLP Cabinet153
- Assy Fan155
- Assy Billboard Box157
- Assy Sub Cabi FL Box Door159
- Assy Top Board160
19 Wire Color Code Table163
20 Wiring Diagram164
