Sega Let's Go Jungle User Manual

110
GAME BOARD
16

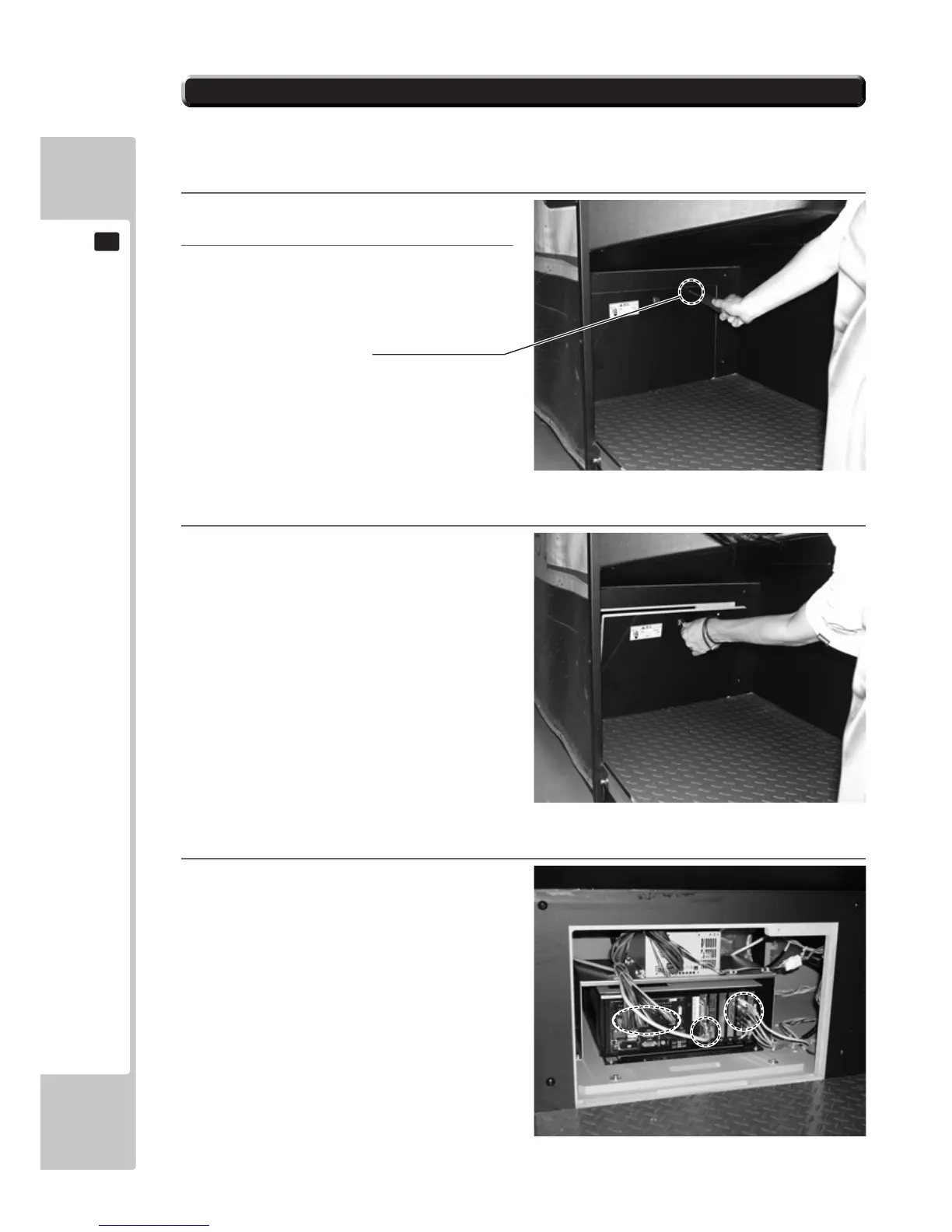

16-1 HOW TO REMOVE GAME BOARD
The game board (LINDBERGH) is inside the front door PCB to the right side when facing the projector screen.
Remove the LINDBERGH together with the wooden base (PCB Board) on which it has been mounted.
1
Turn off the power.
2
Remove the anti-release screw.
FIG. 16-1a
3
Unlock with the master key and remove the
front door PCB.
FIG. 16-1b
4
Disconnect all of the connectors connected to
the LINDBERGH.
FIG. 16-1c
TRUSS SCREW (1), black
M4x40
