Sega Let's Go Jungle User Manual

ASSEMBLY AND INSTALLATION
21
6
1

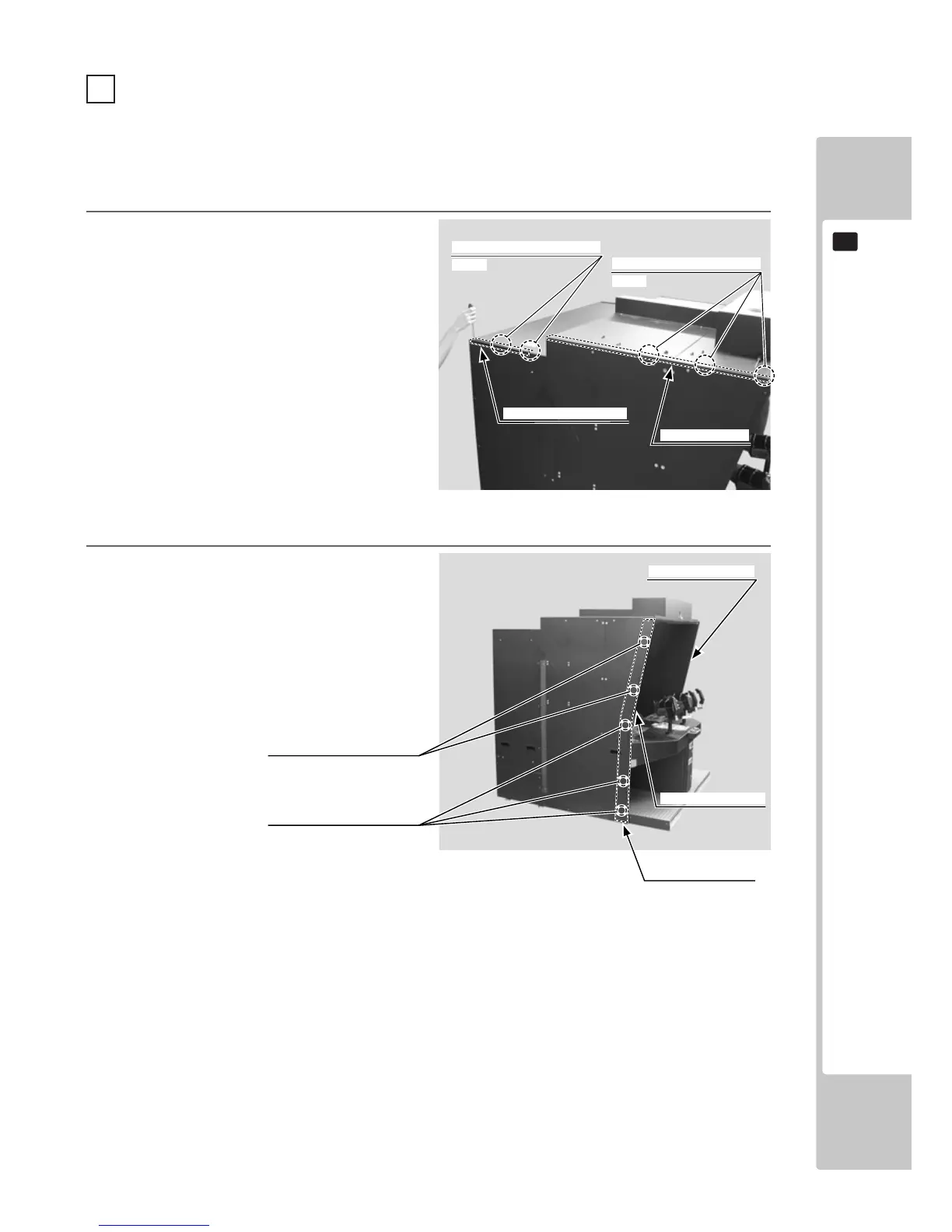

Remove the parts attached to the top edge of the
sides of the DLP and Main Cabinet. Remove
thetrussscrewsxingtheminplace.Theparts
removed can be replaced on either side.
Attach the side cloth to both sides of the DLP and Main Cabinet. The Side Cloth is more than 1.7 m tall and 1.5 m
across. At least two people must work together to perform this operation. The Side Cloth for the left and right sides
are different. Before attachment, make sure you have the correct Side Cloth for that side.
FIG. 6-2a
FIG. 6-2b
2 ATTACHING THE SIDE CLOTH
2
Remove the parts attached to the side edge of
the sides of the Main Cabinet.
Removethetrussscrewsxingtheminplace.
The top cloth brackets are different for the left
and right sides.
M4x16
M4x16
CLOTH BRACKET AR
CLOTH BRACKET AL
CLOTH BRACKET BL
TRUSS SCREW (3 ea.), black
TRUSS SCREW (5 ea.), black
CLOTH BRACKET
BRACKET DLP CURTAIN
TRUSS SCREW (4 ea.), black
TRUSS SCREW (3 ea.), black
M4x16
M4x16
