CONTROL UNIT
11
11-5 GREASING
Once every three months, grease the cam slide part, springs, gear engagement and the sliding part of the slide rail.
For all parts aside from the slide part of the slide rail, use Grease Mate (product number: 090-0066).
For the slide part of the slide rail, use Sumico Lubricant (Ltd.) Mori LG Grease NO. 2 (product number: 090-0290).
In order to grease the gear engagement for the X and Y axis volumes, you must cut the power, remove the Control
Unit from the cabinet, and remove the muzzle and Gun Cover. (See 11-1 & 11-2.)

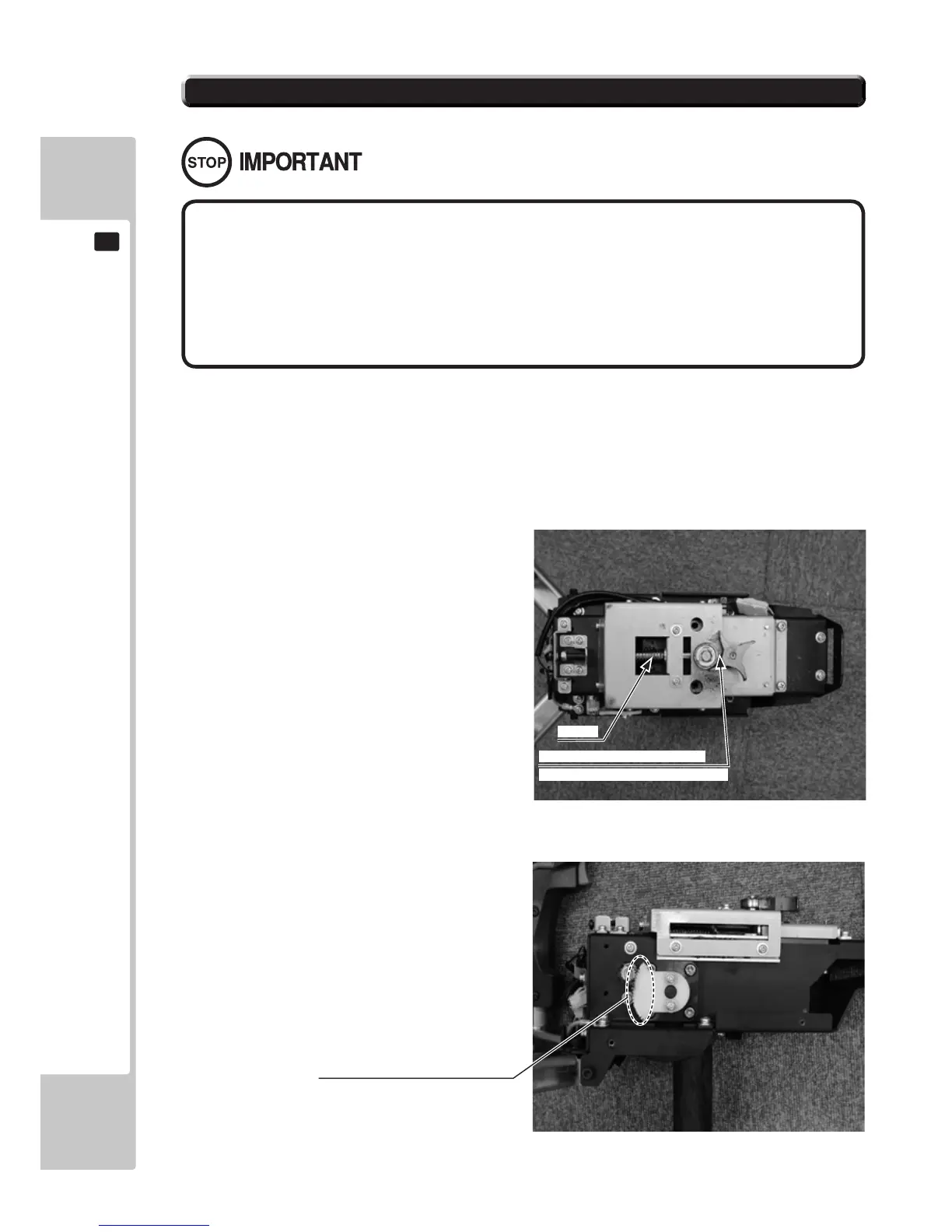

FIG. 11-5a
FIG. 11-5b
● Besuretousethedesignatedgrease.Usingundesignatedgreasecancause
partsdamage.
● Donotapplygreasetolocationsotherthanasspecied.Doingsomaycreate
ariskofoperationalproblemsanddeteriorationofparts.
● Thedesignatedperiodsforgreasingserveonlyasaguide.Wheneverthereare
squeaksorotheranomalies,applygreaseatdesignatedlocations.
SPRING
CAM AND BEARING SLIDE FACE
Y AXIS VOLUME GEAR ENGAGEMENT
CAM AND BEARING EXTERIOR FACE
