158
WIRE COLOR CODE TABLE
19
WIRE COLOR CODE TABLE
19
The DC power wire color for this product is different from previous SEGA titles.
Working from the previous wire colors will create a high risk of re.

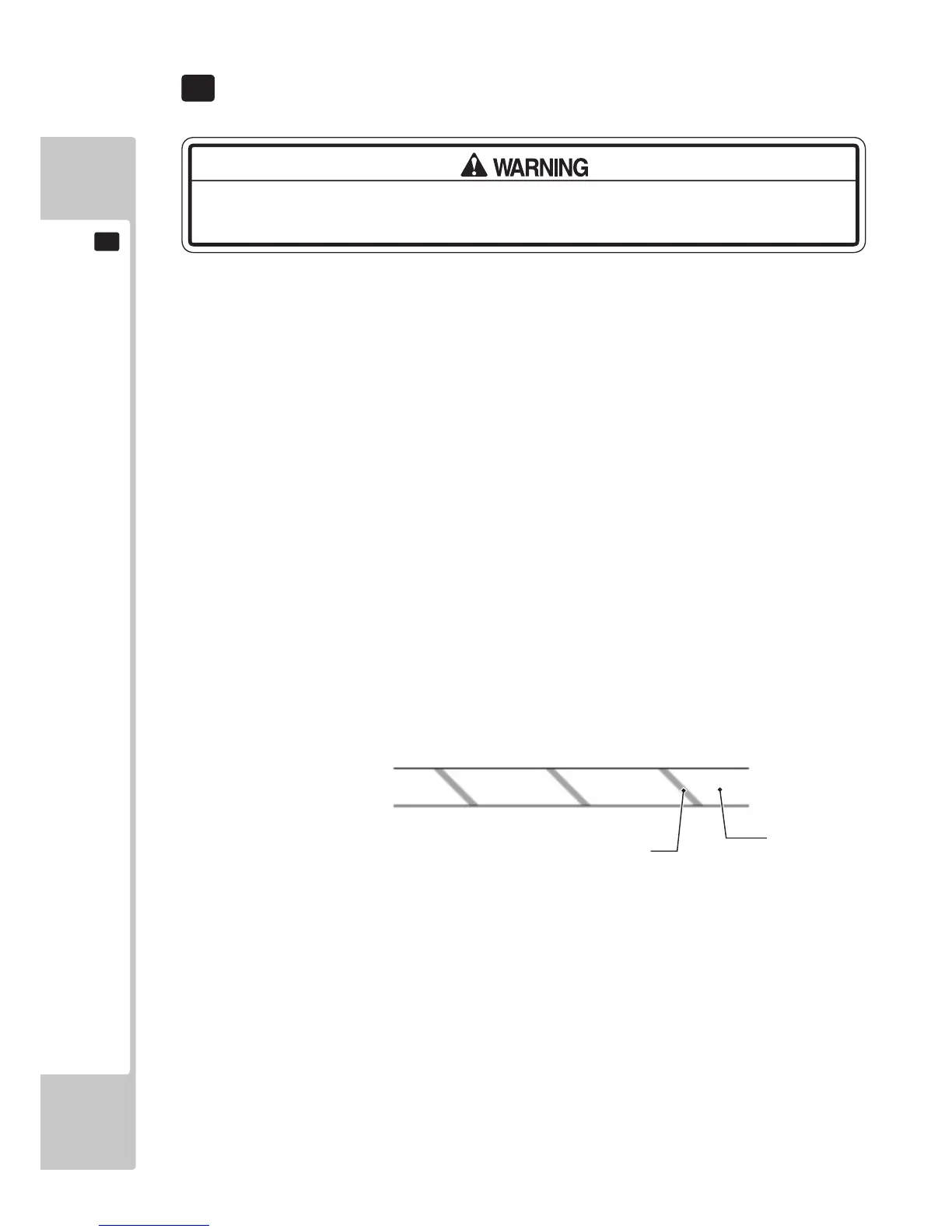

Note 1: If the right-hand side numeral is not 0, that particular wire has a spiral color code. The left-hand side
character shows the base color and the right-hand side one, the spiral color.
<Example> 51………WHITE/RED
Note 2: The character following the wire color code indicates the size of the wire.
U: AWG16
K: AWG18
L: AWG20
None: AWG22
The color codes for the wires used in the diagrams in the following chapter are as follows.
A PINK
B
SKY BLUE
C BROWN
D PURPLE
E LIGHT GREEN
Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters.
1 RED
2 BLUE
3 YELLOW
4 GREEN
5 WHITE
7 ORANGE
8 BLACK
9 GRAY
If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the left-hand side
numeral (see the above).
RED
WHITE
To Next Page
