CONTROL UNIT
11
1
Turn off the power and remove the Control Unit. (See 11-1).
2
Remove the muzzle and the Gun Cover.
3
Remove the two screws xing the volume
bracket upper in place. The screws have at and
spring washers attached. These screws will be
used with the replacement volume.
Exchanging

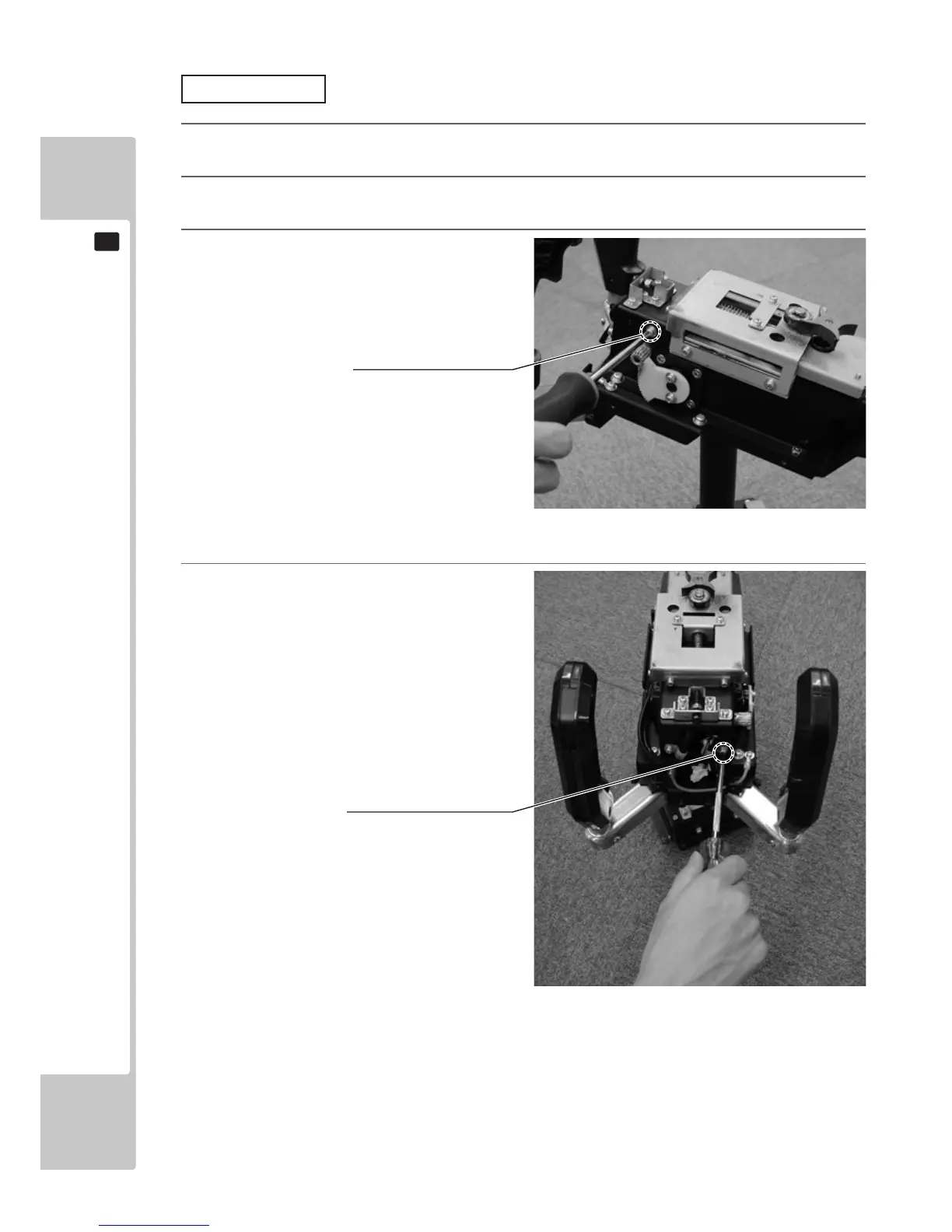

FIG. 11-3g
4
Remove the volume wire restraint and free the
wires. Remove the single screw holding the
restraint in place.
FIG. 11-3h
SCREW (2)
M4x8, w/at & spring washers
SCREW (1)
M4x8, w/at & spring washers
To Next Page
