84
CONTROL UNIT
11
3

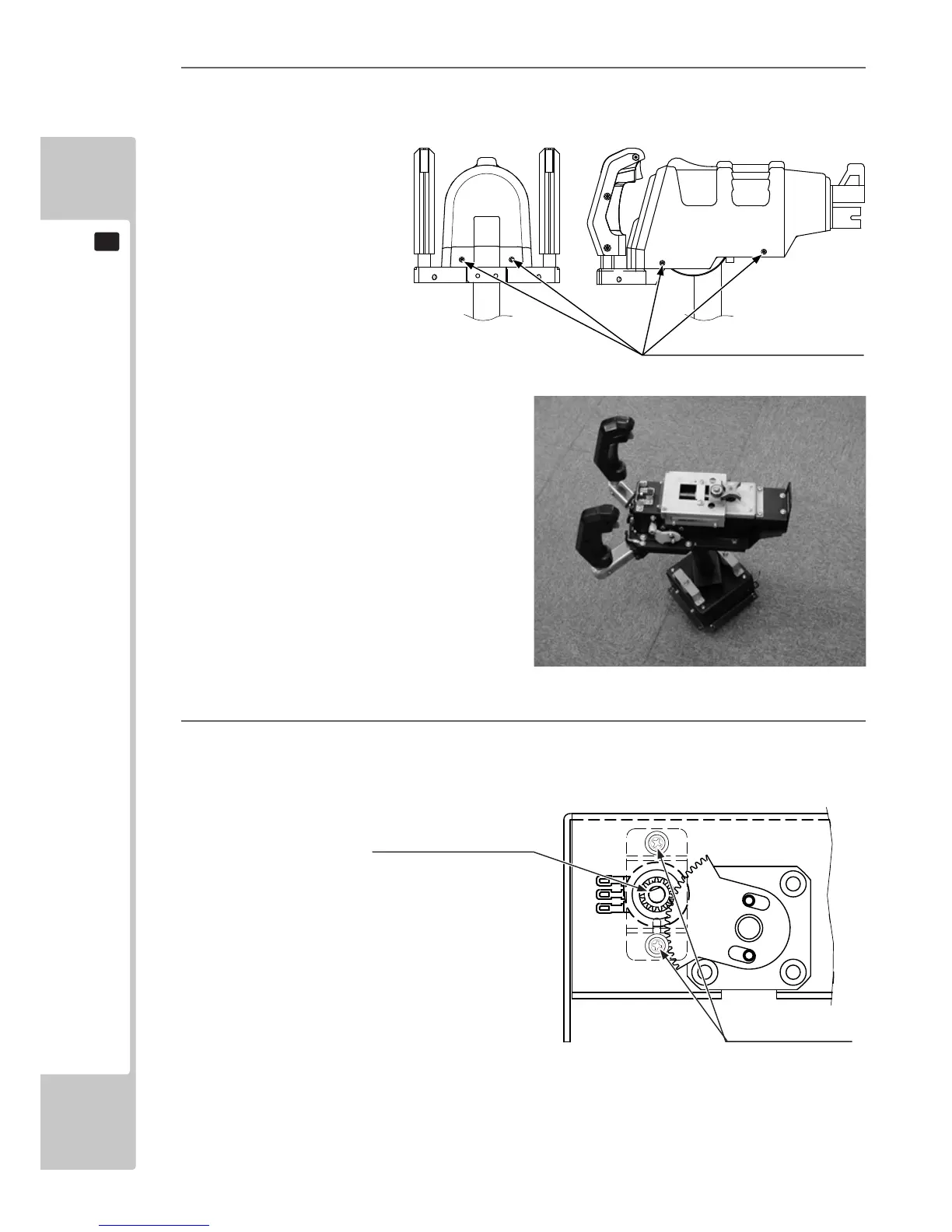

Remove the Gun Cover.
Remove the six tamperproof screws.
With the Control Unit pointing at the screen, the Y axis volume is located on the right side.
FIG. 11-3c
FIG. 11-3d
4
Loosen the two screws holding the volume bracket upper and adjust the gear engagement.
With the Control Unit level, engage the D cut face of the volume axis in the direction shown in the diagram.
FIG. 11-3e Y Axis (up and down) Volume
M4x8
Loosen the two screws.
The D cut direction when the
up and down access is level.
TAMPERPROOF SCREW (total 6), black
To Next Page
