PARTS LIST

147

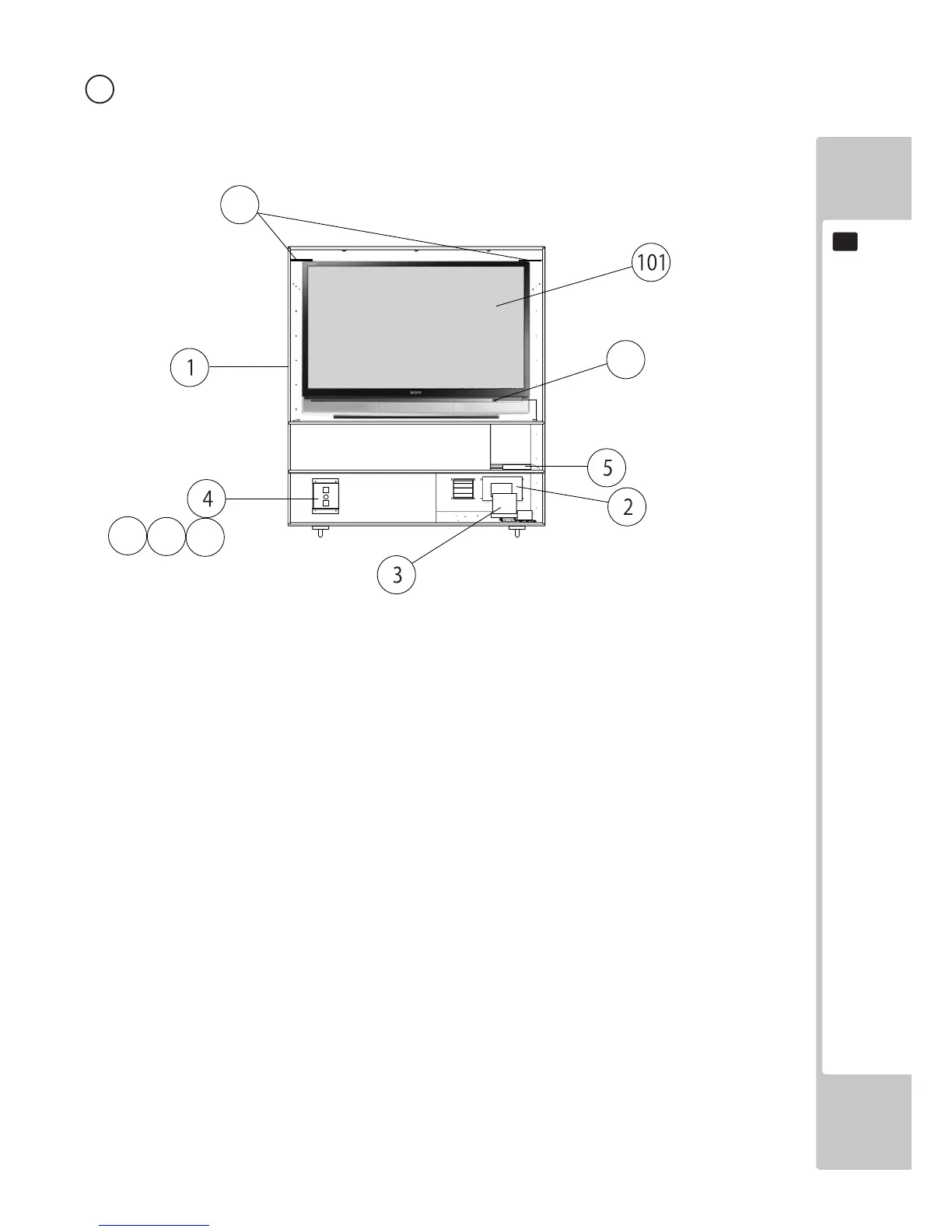

22 ASSYDLP(LGJ-1300UK)

ITEM NO. PART NO. DESCRIPTION NOTE

1 LGJ-1320UK ASSY DLP CABINET

2 LGJ-1330UK ASSY AC BKT

3 LGJ-1360UK ASST XFMR

4 LGJ-1353UK CONNECTOR BRKT

5 838-0001UK I/R PCB

7 LGJ-1357&8UK BRKT L&R DLP

8 RND-60031 CA-IR-EYE

101 200-6055-SNY DISPLAY 55" SONT BRAVIA

301

302

303

Default Chapter2
- Table of Contents2
- Introduction4
- Specifications4
1 Handling Precautions6
- Concerning the Sticker Display8
- Concerning Warning Displays8
2 Precautions Regarding Installation Location10
- Limitations of Usage11
- Operation Area12
- Installation and Operation Area12
3 Precautions Regarding Product Operation13
- Before Operation13
- During Operation (Paying Attention to Customers)15
4 Part Descriptions17
- Name of each Part17
- Major Measurements of each Unit Upon Purchase17
5 Accessories18
- DVD Drive Kit for LBG Eng19
6 Assembly and Installation20
- Tools Required for Assembly Operation22
- The Assembly of this Product Is Performed in the Following Steps22
- Connection of the DLP and Main Cabinet23
- For DLP Cabinet23
- For MAIN Cabinet23
- DLP Joint Side24
- DLP Joint Upper25
- Attaching the Side Cloth26
- Attaching the Top Board28
- Attaching the Billboard Box29
- Connection of the Seat Cabinet31
- Mat Brackets32
- Attaching Harness Covers33
- Harness Cover S33
- Attaching the Billboard34
- Attaching the Curtain36
- Installation of the Fluorescent Bulbs37
- Fixation to Installation Site38
- Bottom View38
- Aligning the Adjusters38
- Three Surface Views39
- Ventilation Space39
- Connecting the DVD Drive40
- Connection of Power and Ground43
- AC Unit44
- Engagement of Power Supply46
- Process for Turning on the Power48
- Confirmation of Assembly49
- Input Test Screen49
- Output Test Screen50
- Gun Calibration Screen50
7 Precautions When Moving the Machine51
- Moving the Machine51
- Separate Components When Moving over a Sloped or Stepped Area52
- Separating the Main Cabinet53
8 Game Description59
- Using the Control Unit60
- Targets60
- Game Rules61
- Action Icon61
- Mark61
- Mark Changes61
9 Explanation of Test and Data Display62
- Push Switch and Coin Meter64
- System Test Mode65
- System Test Menu Screen65
- Game Test Mode66
10 Projector77
- Cleaning the Screen78
11 Control Unit79
- How to Remove Control Unit80
- Adjusting or Changing the y Axis Volume88
  - Y Axis (up and Down) Volume89
  - Exchanging91
- Replacing the Trigger Switch94
- Greasing97
- Adjustment of Vibration Noise99
  - Handling the Coin Jam101
  - Cleaning the Coin Selector101
12 Coin Selector & Credit Settings101
- Coin Insertion Test102
- Credit Board Settings103
- Price of Play Settings Euro103
- VTS Credit Board Option Settings104
- Price of Play Settings UK105
13 Replacing the Fluorescent Lamps106
- Replacing the Billboard Box Fluorescent Lamp107
- Replacing the Fluorescent Bulbs108
14 Periodic Inspection109
- Periodic Inspection Table110
- Cleaning the Cabinet Surfaces110
15 Troubleshooting111
- Troubleshooting Table112
- Circuit Protector113
16 Game Board114
- How to Remove Game Board115
- Composition of the Game Board118
- Dip SW Setting118
17 Design Related Parts119
- Exterior119
- Interior119
18 Parts List120
- Top Assy LGJ121
- Assy Main Cabinet123
- Assy Front Cabinet125
- Assy Sub Cabi DLP127
- Assy Main BD128
- Assy Elec129
- Assy Rear Cabinet130
- Assy Push SW132
- Assy Button Box133
- Assy Sub Cabi Rear134
- Control Unit L136
- Control Unit R139
- Assy Motor142
- Assy Lamp Box143
- Assy Sub Cabi Lamp Box144
- Assy Front Door145
- Assy Front Door PCB146
- Assy Seat Cabinet147
- Assy Speaker Board149
- Assy Woofer Board150
- Assy Sub Cabi Seat151
- Assy DLP152
- Assy DLP Cabinet153
- Assy Fan155
- Assy Billboard Box157
- Assy Sub Cabi FL Box Door159
- Assy Top Board160
19 Wire Color Code Table163
20 Wiring Diagram164
