PARTS LIST
123
18
 5 ASSYMAINBD(LGJ-4100UK)
ITEM NO. PART NO. DESCRIPTION NOTE
1 LGJ-4101XUK PCB BOARD
2 LGJ-4102UK SWITCHING BRACKET
3 HDF-4202UK BRKT PWR SPLY
4 844-0001D-91-12 ASSY CASE LBG L 1GB 7800 EXP <Taiwan, Hong Kong,
Singapore, Korea>
101 400-5457-91UK SW REGU ATX/JVS
201 000-P00416-W M SCR PH W/FS M4 × 16
202 000-P00408-W M SCR PH W/FS M4 × 8
203 000-P00308-W M SCR PH W/FS M3 × 8
301 LGJ-60001UK WH DC POWER
302 600-7360-0500 WH LBG PWR 24P P TO P 0500MM
303 600-7361-0500 WH LBG PWR 18P P TO P 0500MM
DIP SW SETTING

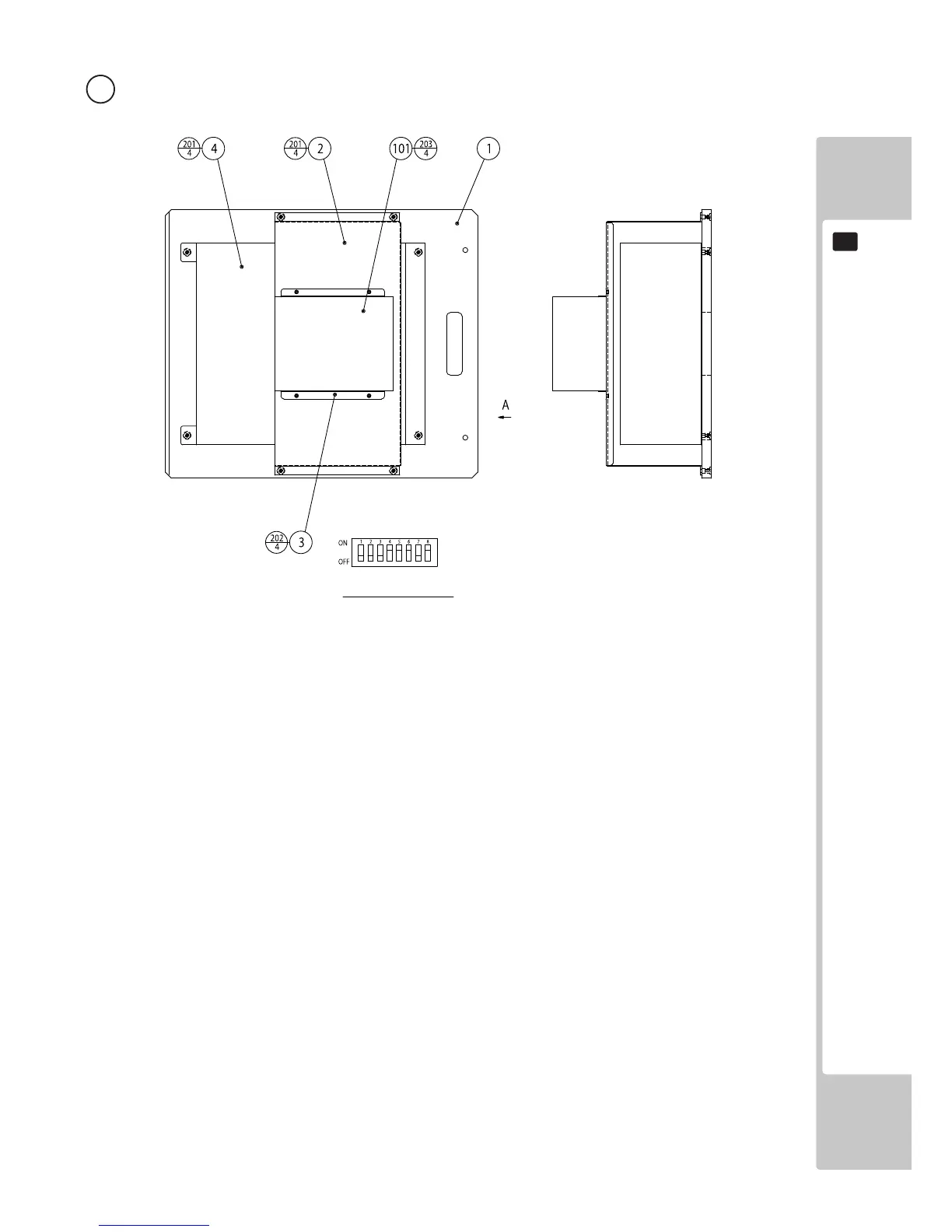

Figure seen from A
