CONTROL UNIT
83
11
11-3 ADJUSTING OR CHANGING THE Y AXIS VOLUME
The Y (up and down) axis volume is inside the Control Unit on the side.
If the Y axis volume does not seem to be working properly and the TEST Mode calibration screen has no effect, the
cause is likely to be a problem with or damage to the gears of the Y axis volume.
When replacing the volume, you will need a replacement volume and three heat shrink tubes (product number:
310-5029-D20). You will also need the following tools and some solder.
- Phillips head screwdriver (for M4, M6)
- Wrench or screwdriver for tamperproof screws (for M4)
- A 7 millimeter spanner or hexagonal screwdriver or socket wrench
- A 1.5 millimeter hexagonal bar wrench or screwdriver
- An 11-12 millimeter spanner
- Nippers
- Cutters
- Wire Stripper
- Soldering iron
- Industrial dryer
1

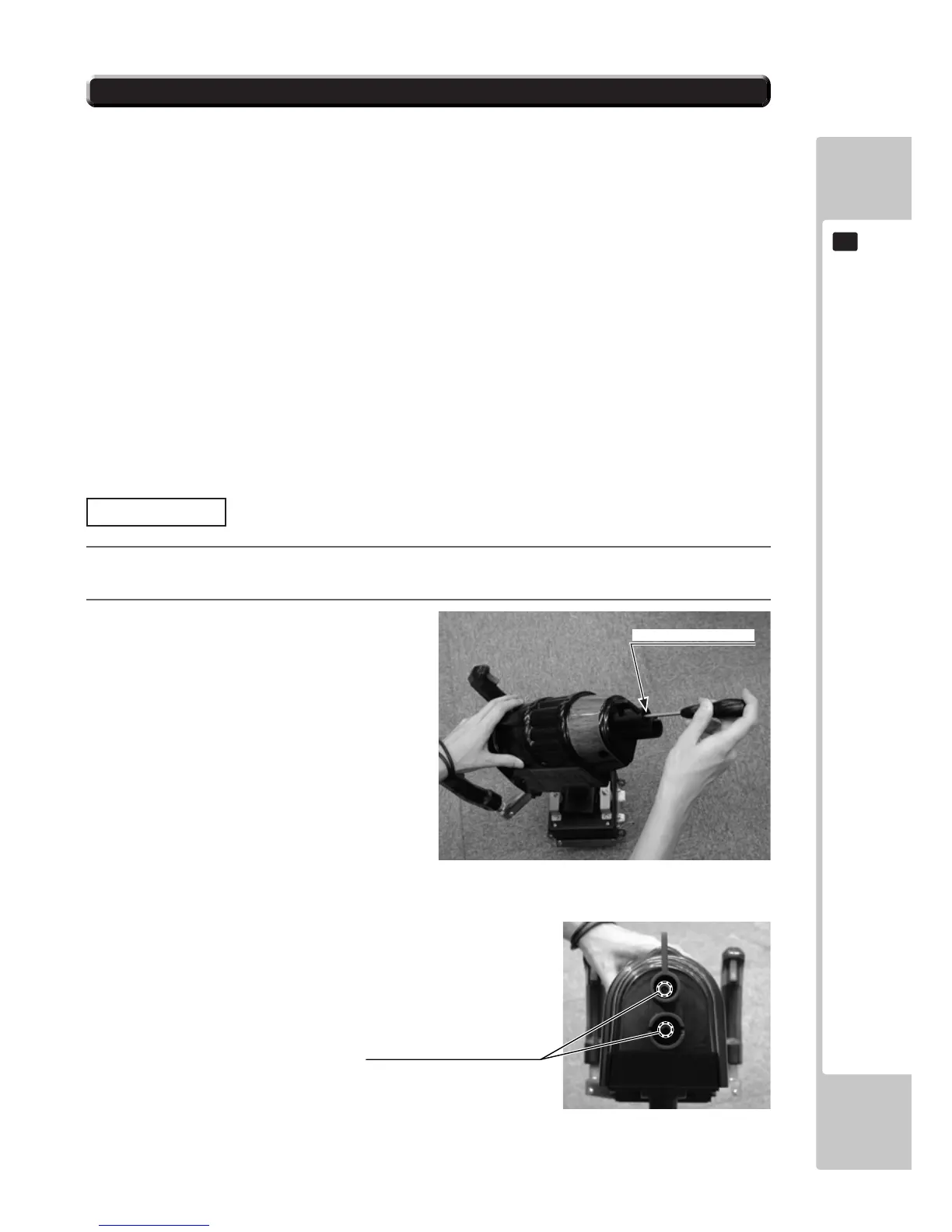

Turn off the power and remove the Control Unit. (See 11-1).
2
Remove the muzzle. Insert the tool into the gun
barrel and remove the two tamperproof screws.
Adjustment
FIG. 11-3a
FIG. 11-3b
MUZZLE (GUN BARREL)
M4x8
TAMPERPROOF SCREW (2), black
To Next Page
