ASSEMBLY AND INSTALLATION
6
1

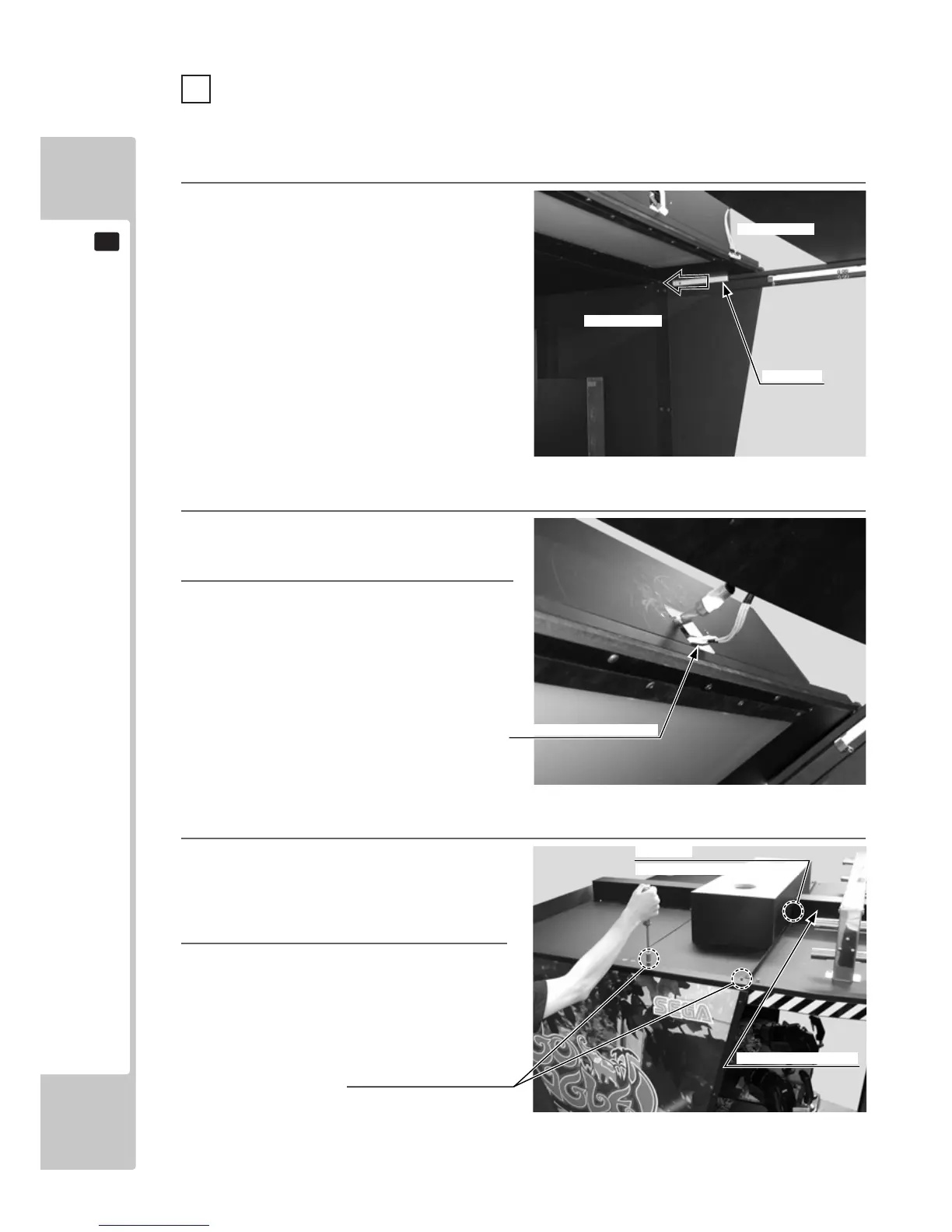

Move the Seat Cabinet close to the Main Cabi-
net, inserting the joint pipes on the left and right
of the top board into the inside Main Cabinet.
Place the two levels with each other and with an
approx. 10 cm gap between them.
2
Connect the two wire connectors from the top
board to the two connectors on the Main Cabi-
net.
3
Move the Seat Cabinet up against the Center
Cabinet. Be careful not to damage the wire
between the connectors.
4
Pass four hexagon bolts through from the top
oftheMainCabinetceilingplateandxthe
left and right joint pipes on the top board in
place.Theboltshaveatandspringwashers
attached.
5
Fix the rear harness cover to the Main Cabinet
usingtwoscrews.Thescrewshaveatand
spring washers attached.
FIG. 6-5a
FIG. 6-5b
FIG. 6-5c
The
followingoperationcannotbeperformediftheworkspaceisnotatandlevel.Movetosuchalocationbefore
beginning the operation.
5 CONNECTION OF THE SEAT CABINET
JOINT PIPE
SEAT CABINET
MAIN CABINET
Connect the two connectors.
HEXAGON BOLT (4), black
REAR HARNESS COVER
SCREW (2)
M4x16, w/at & spring washers
M6x30, w/at & spring washers,
large at washer used
