1
Move the DLP and the Main Cabinet close
together.
Perform the connection of the wires between
the two cabinets.
Leave a gap of approx 20 cm.
FIG. 6-1a
FIG. 6-1ba For DLP cabinet
3
Connect the three cables from the MAIN cabinet to the DLP cabinet.
FIG. 6-1ca

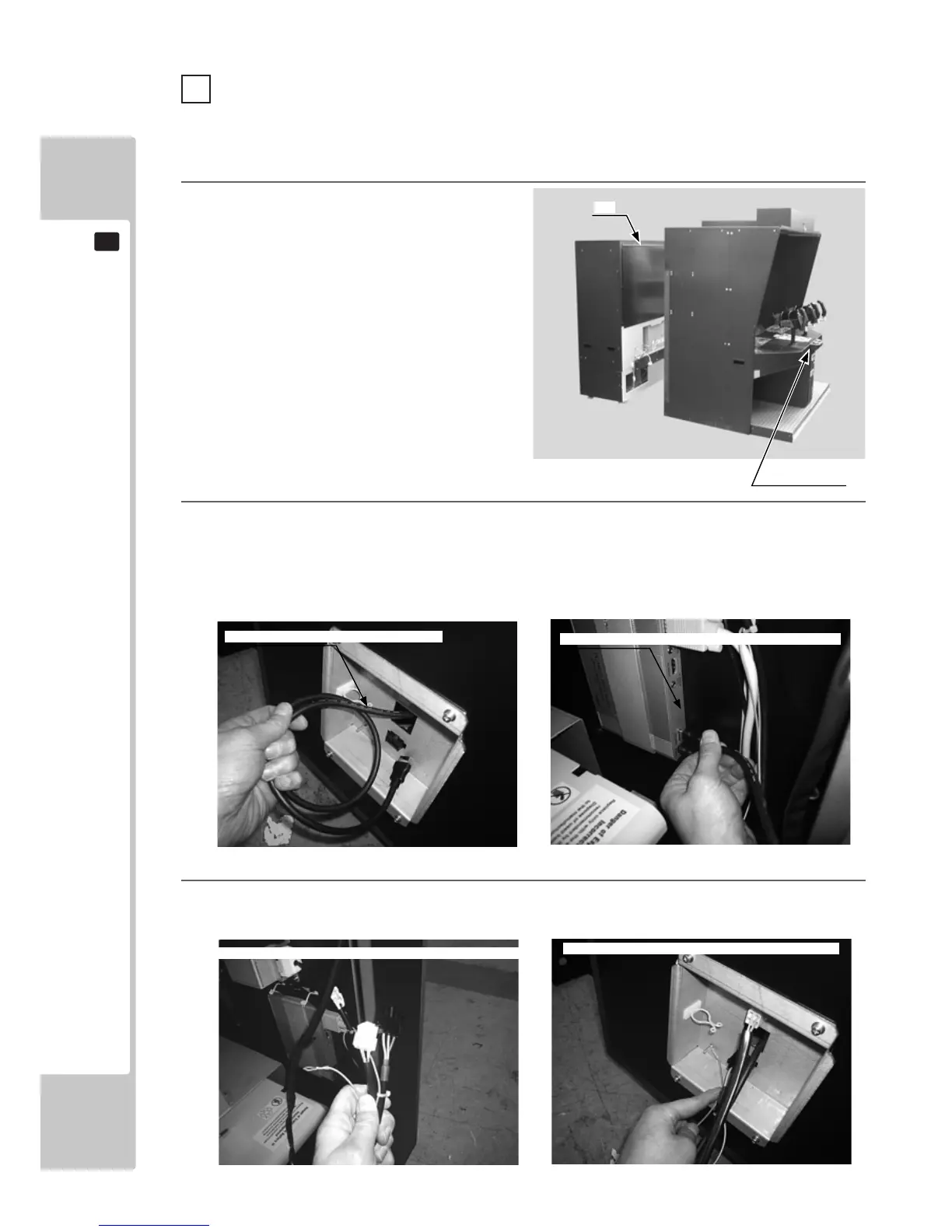

1 CONNECTION OF THE DLP AND MAIN CABINET
In this product the cabinet that contains both the DLP cabinet and projector is simply called the “DLP.”
FIG. 6-1bb For MAIN cabinet
FIG. 6-1cb
2
Connect the DVI cable from the DLP cabinet to the MAIN cabinet.
For the DLP cabinet. Uncoil the DVI/HDMI cable from the reccess in the bottom left hand corner of the
DLP cabinet. Feed the cable into the MAIN cabinet and connect it into the HDMI OUTPUT on the Scaler
Unit.
DLP
MAIN CABINET
Uncoil the DVI cable from the DLP cabinet
And connect into the HDMI INPUT on the Scaler Unit .
Locate the three wires to be connected to the DLP cabinet.
Connect into panel on DLP cabinet and secure earth..
To Next Page
