EXPLANATION OF TEST AND DATA DISPLAY
59
9

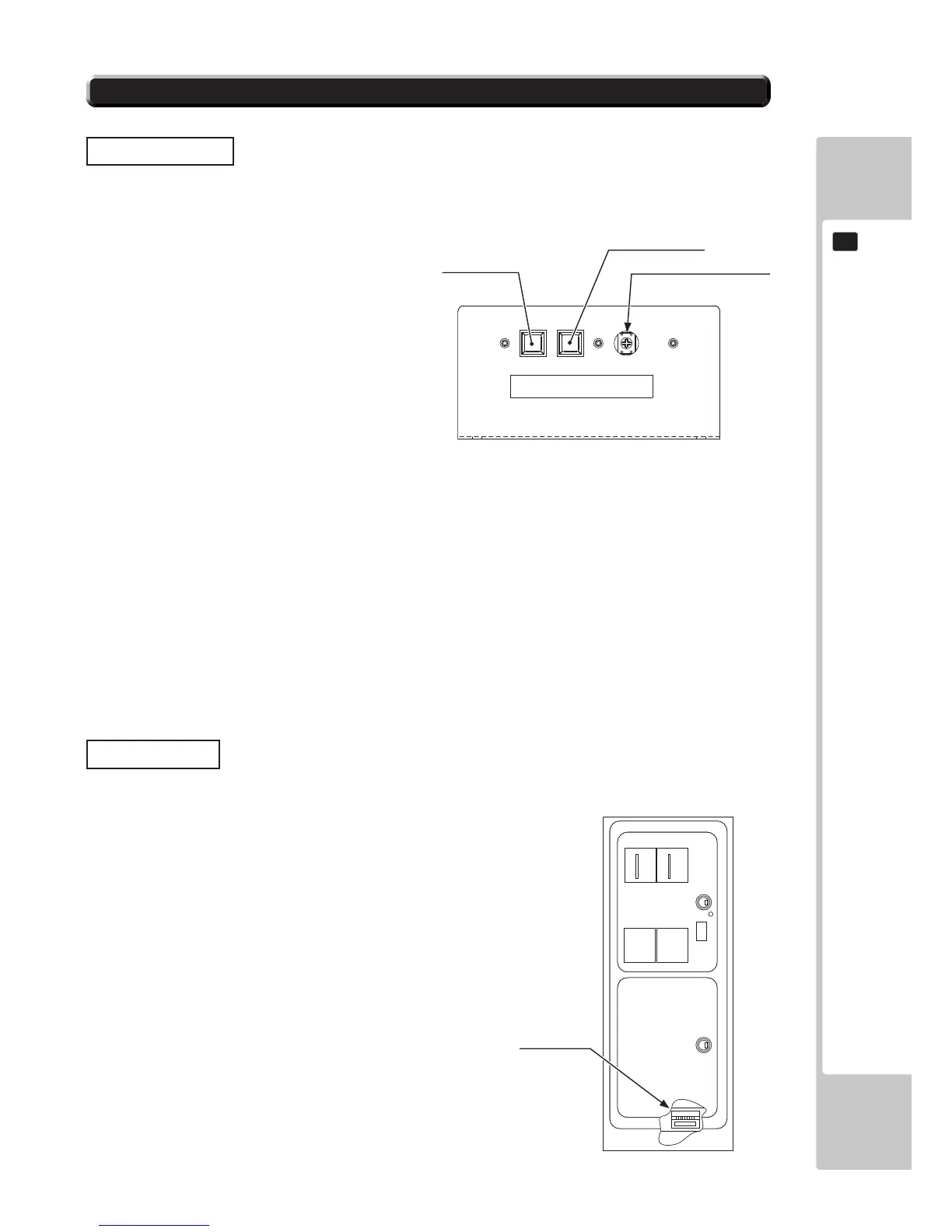

FIG. 9-1a Push Switch
FIG. 9-1b Coin Meter
Push Switch
In Test Mode, the push switch in the coin chute door is operated.
Unlock and open the coin chute door. Inside is the push switch.
Coin Meter
After using a special-purpose key to unlock the cashbox door, the coin meter can be found at the bottom of the cashbox.
9-1 PUSH SWITCH AND COIN METER
TEST Button (TEST):
Establishes Test Mode. Becomes the button to conrm selections in Test Mode.
SERVICE Button (SERVICE):
Makes it possible to enter credits for service without increasing the coin meter. Becomes the button to select
items in Test Mode.
Sound Volume Switch (SP.VOL):
Adjust the volume of the main cabinet left and right speakers, the control panel central speaker, the seat
cabinet left and right speakers and all of the woofers at once. You cannot independently adjust the output of
each speaker and woofer cannot be adjusted independently.
COIN METER
TEST BUTTON
SOUND VOLUME SWITCH
SERVICE BUTTON
