2
Store the wire from the connector connected in step 1 inside the Seat Cabinet. Be careful not to damage the
wire.
3
Fix the harness cover S in place on the left side of the billboard using two truss
screws.
Be careful not to pinch or trap the wire.
1
There is a wire connector, found on the left side
when facing the projector screen of the bill-
board.
Connect it with the connector on the Seat Cabi-
net side

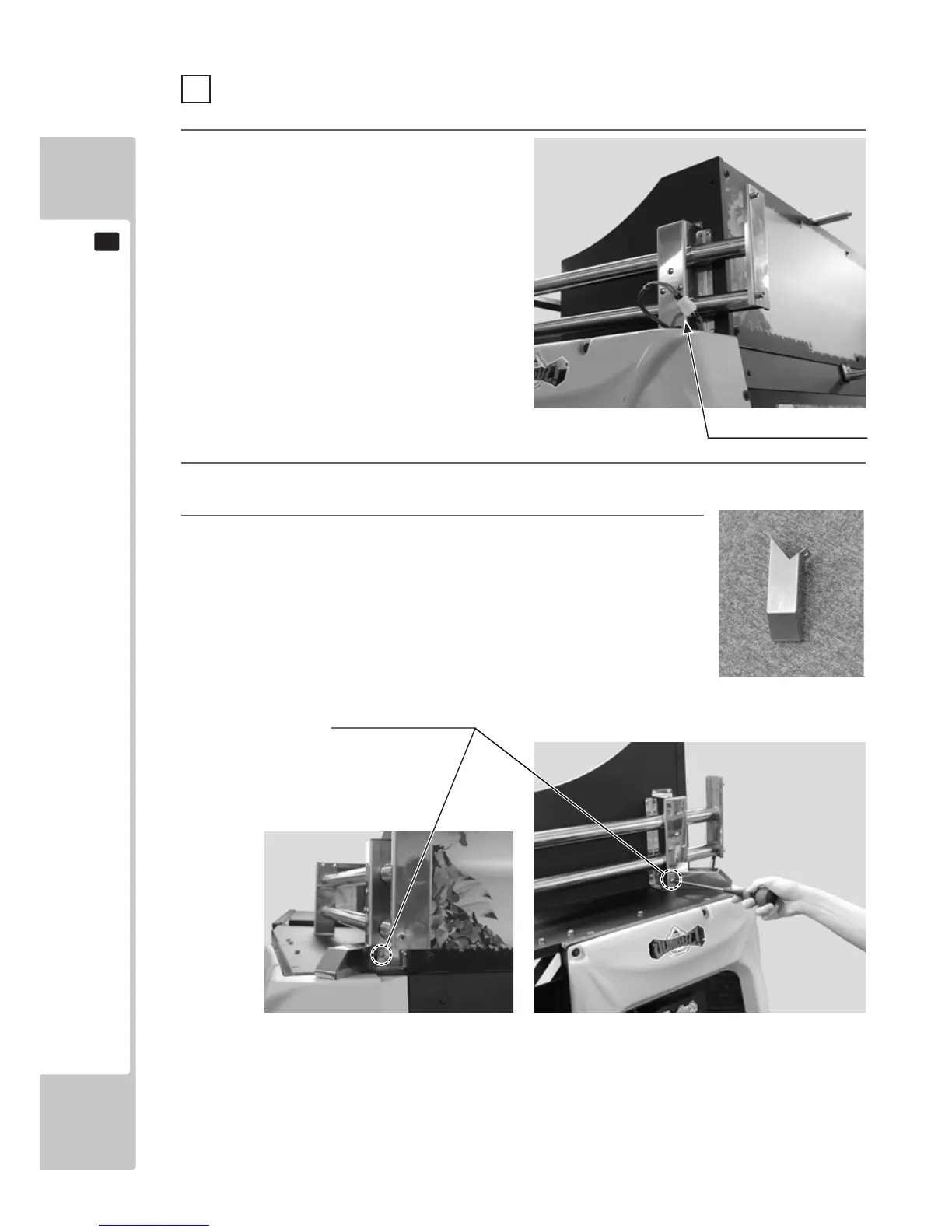

FIG. 6-6a
FIG. 6-6b Harness Cover S
FIG. 6-6cFIG. 6-6d
6 ATTACHING HARNESS COVER S
Connect the single connector.
TRUSS SCREW (2), chrome
M4x8
To Next Page
