ASSEMBLY AND INSTALLATION
23
6
1
Insert the top board under the Seat Cabinets
ceiling plate.
There is a plate metal bracket side on the upper
right and left sides inside the Seat Cabinet. In-
sert the top board riding on these bracket sides,
keeping it level.
The top board has wires attached to it, so be
careful not to damage them.
2
Make sure the top board has not been inserted
lopsided.
3
Fix the top board in place with four hexagon
bolts from the above the Seat Cabinet ceiling
plate.
Theboltshaveatandspringwashersattached.
Placeallfourboltsinlooselyatrsttomake
sure they can all be inserted, then tighten them
allequallyandxthetopboardinplace.
Attach the top board to the Seat Cabinet. This operation must be performed by at least two people.
Astwoormorepeoplewillbeworkingtogether,takeextracarenottotrapyourngersorhands.

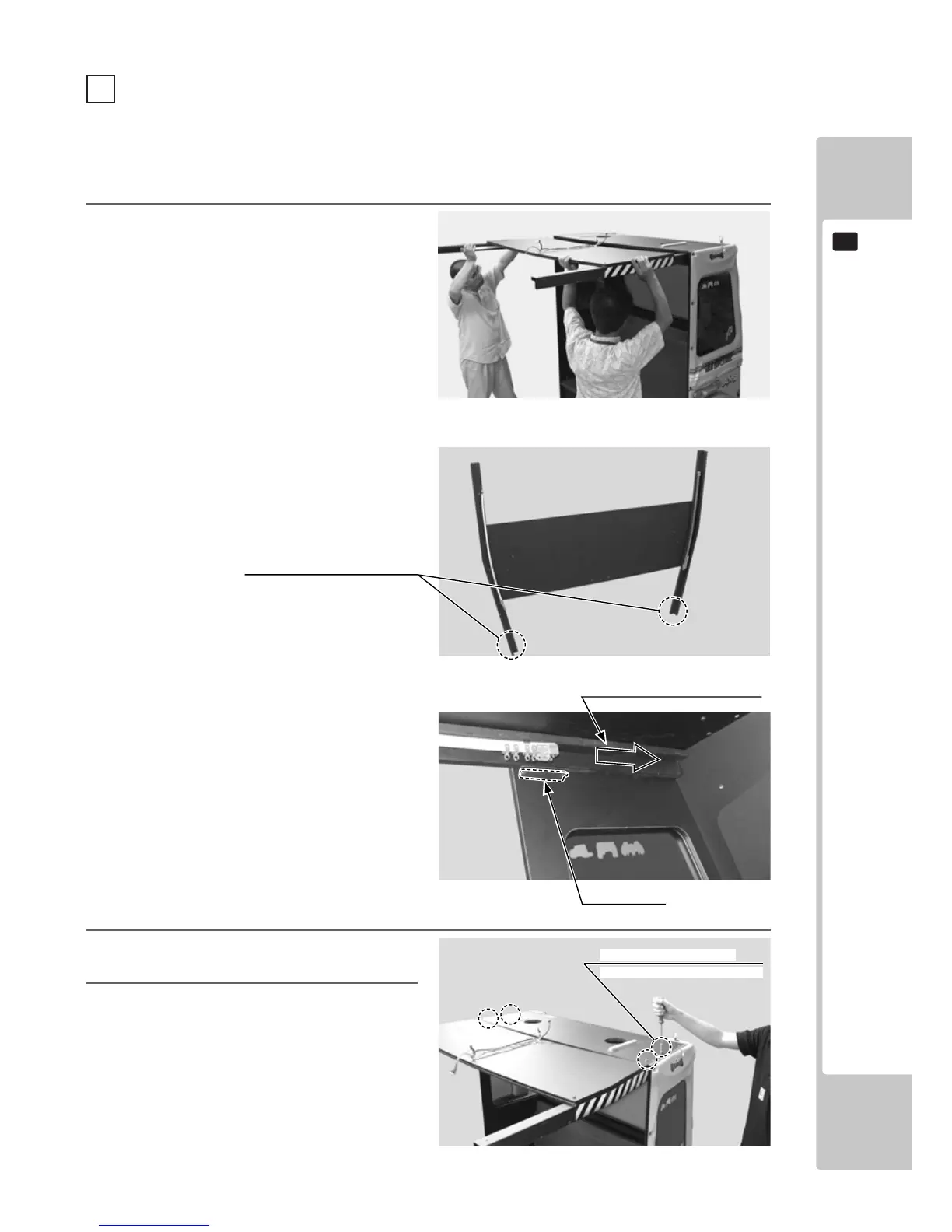

FIG. 6-3a
FIG. 6-3b Top Board
FIG. 6-3c
FIG. 6-3d
3
ATTACHING THE TOP BOARD
BRACKET SIDE
Insert riding on the bracket sides.
HEXAGON BOLT (4), black
M6x25, w/at & spring washers
Insert into the Seat Cabinet side.
To Next Page
