Programming via Rockwell controller
9.5 Programming add-on instructions
SIMATIC RF650R/RF680R/RF685R
162 Configuration Manual, 03/2018, C79000-G8976-C386-06
With the aid of the "Reset_RF68xR" block, you can reset the RF680R and RF685R readers.
The reader is reset to the settings configured on the reader with the WBM. The
"Reset_RF68xR" block does not have any device-specific parameters and is executed using
the "EXECUTE" parameter.
With the "Reset_RF68xR" block, you can interrupt any active Ident block at any time. The
blocks are then ended with "DONE = true" and "ERROR = false".

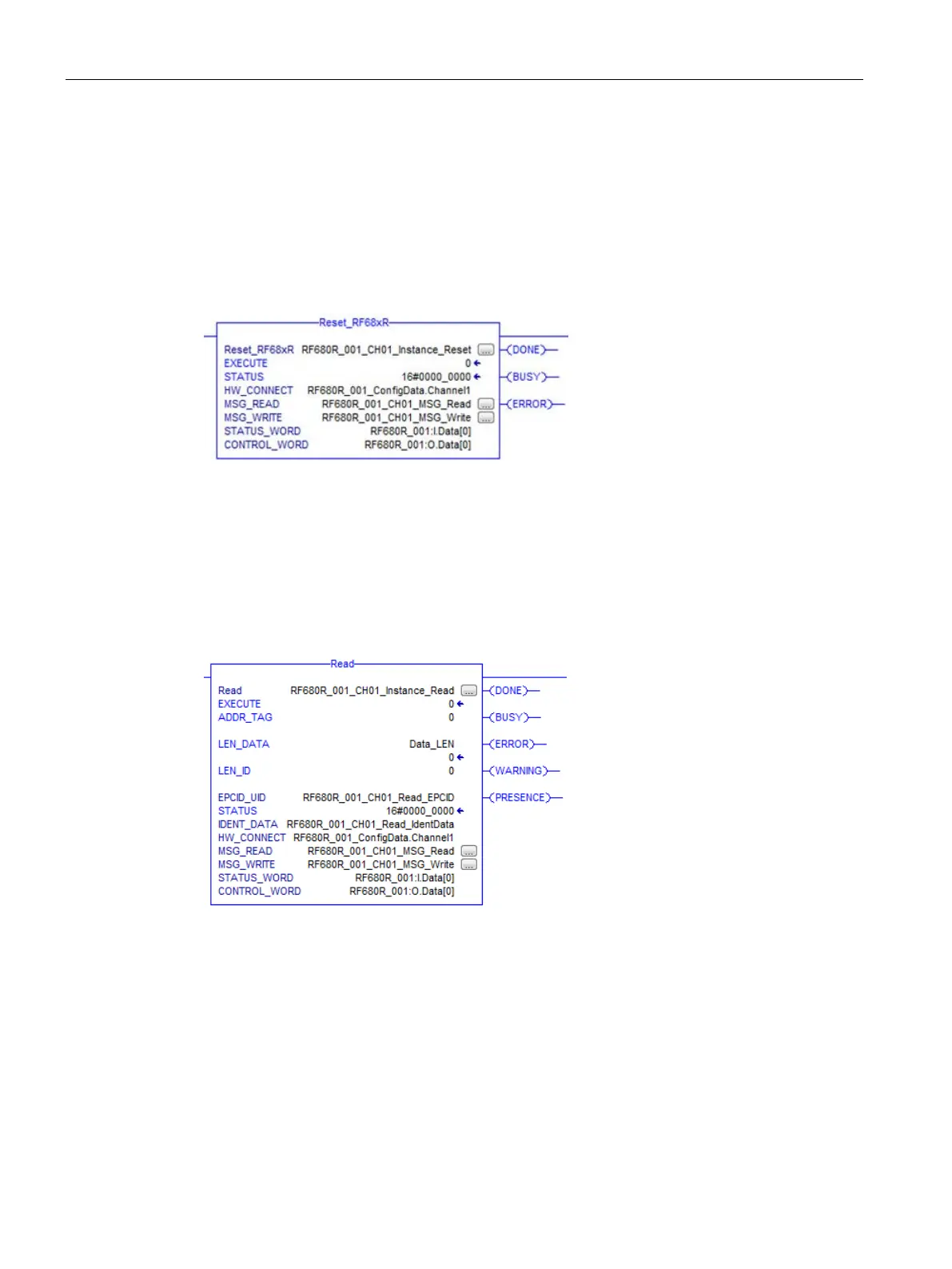

Figure 9-3 "Reset_RF68xR" block
The "Read" block reads the user data from the transponder from memory bank 3 (USER
area) and enters this in the "IDENT_DATA" buffer. The physical address and the length of
the data are transferred using the "ADDR_TAG" and "LEN_DATA" parameters. Specific
access to a certain transponder is made with the "EPCID_UID" and "LEN_ID".
Figure 9-4 "Read" block
