Siemens SIMATIC RF650R User Manual

Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF650R/RF680R/RF685R
48 Configuration Manual, 03/2018, C79000-G8976-C386-06
7.3
The menu items of the WBM
7.3.1
The "Start page" menu item
The "Start page" menu item is divided into 5 areas.
● Device-specific information
● Project ID
● Address information
● Reader clock
● Configuration display

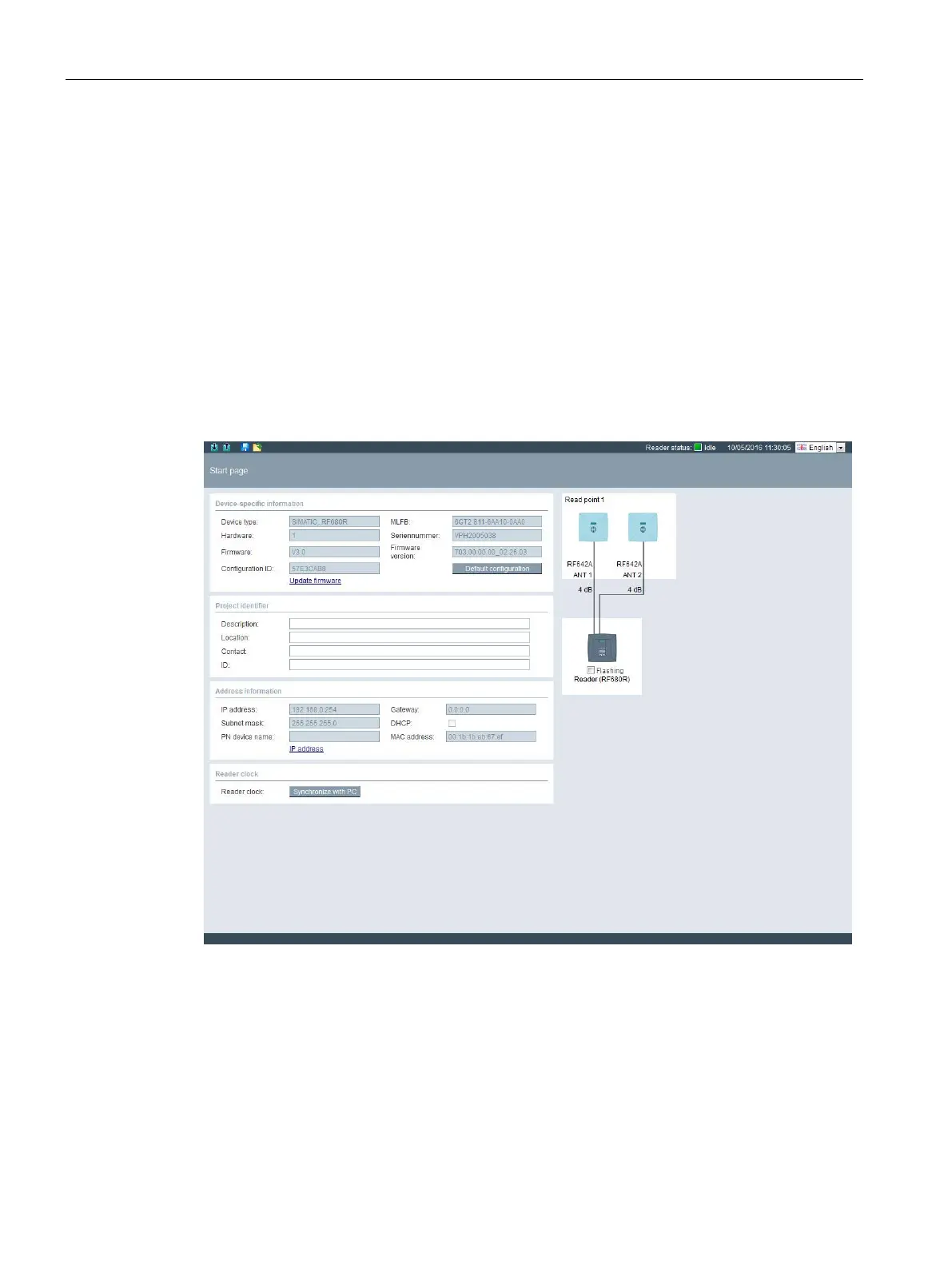

Figure 7-3 The "Start page" menu item
Device-specific information
The first area contains device-specific information. The "Device type", "MLFB", "Hardware"
and "Serial number" boxes are specified in the factory. The content of the "Firmware" and
"Firmware version" boxes depends on the firmware stored on the reader. Using the "Update
firmware" link, you jump to the "System" menu item in which you can update firmware. The
"Configuration ID" box contains a unique identifier for the configuration that was last
activated on the reader or loaded on the reader. Click the "Default configuration" button to
