Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF650R/RF680R/RF685R
50 Configuration Manual, 03/2018, C79000-G8976-C386-06
The "Settings - General" menu item
The "Settings - General" menu item is divided into 4 areas:
● Country profile
● Channels
● Advanced settings
● Log settings

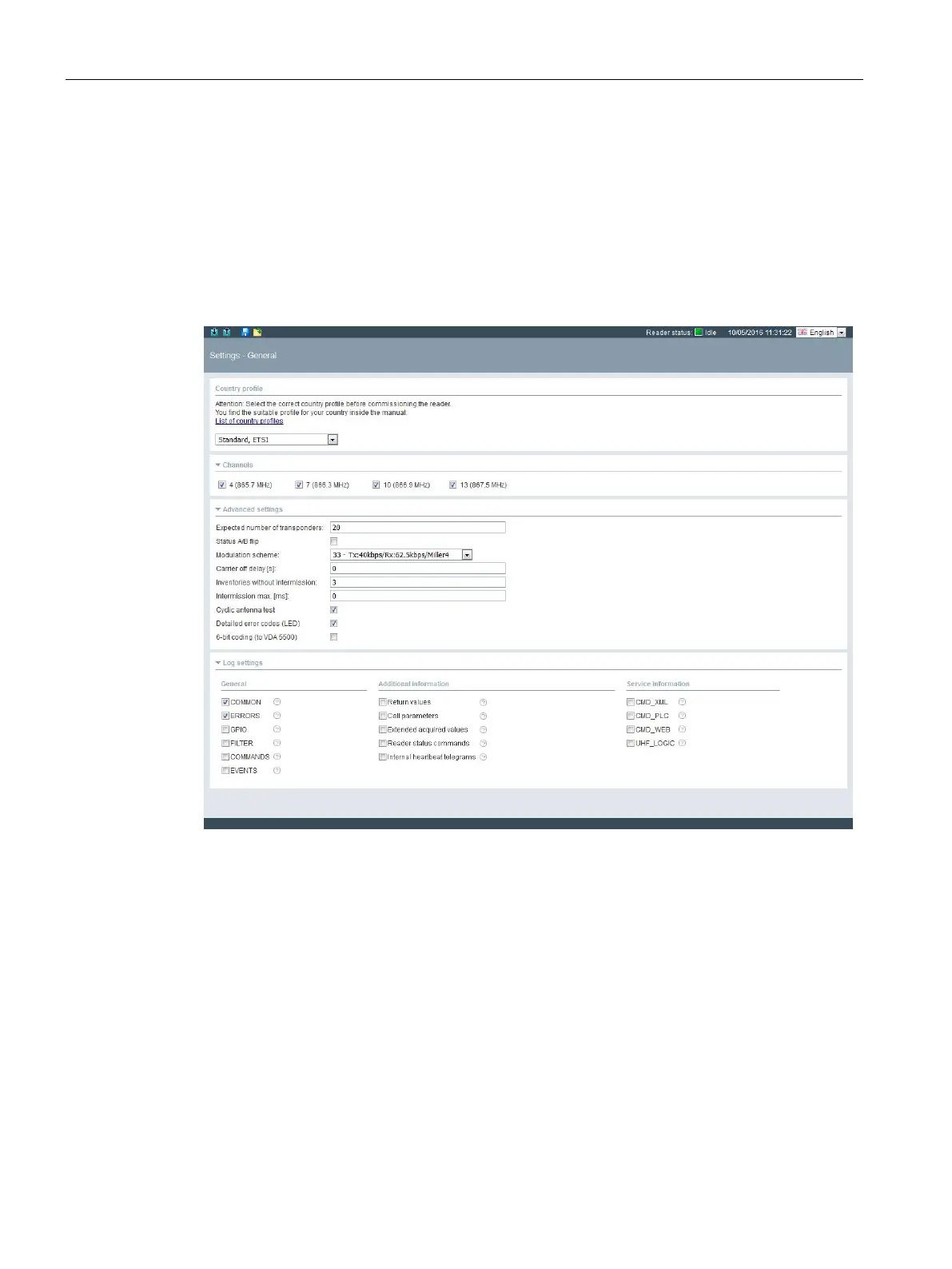

Figure 7-4 The "Settings - General" menu item
From the "Country profile" drop-down list, you can select the radio profile the reader will use.
The "Channels" area is adapted depending on the radio profile selected. The radio profiles
depend on the country or region. To ensure that the reader keeps to the local radio
regulations, select the country profile belonging to your country. You can find information on
which country profile applies to you in the "List of the country profiles (approvals)
(Page 340)".
The "Channels" area displays the channels with the frequencies of the selected country
profile. Disable the check boxes of the channels that the reader should not use. Note that
with FCC country profiles, the check boxes cannot be disabled.
