9.5 Programming add-on instructions
SIMATIC RF650R/RF680R/RF685R
Configuration Manual, 03/2018, C79000-G8976-C386-06
177
The "Write_EPC_Mem" block overwrites the EPC memory of the RF600 transponder. The
length of the EPC memory to be overwritten is specified by the "LEN_DATA" parameter.

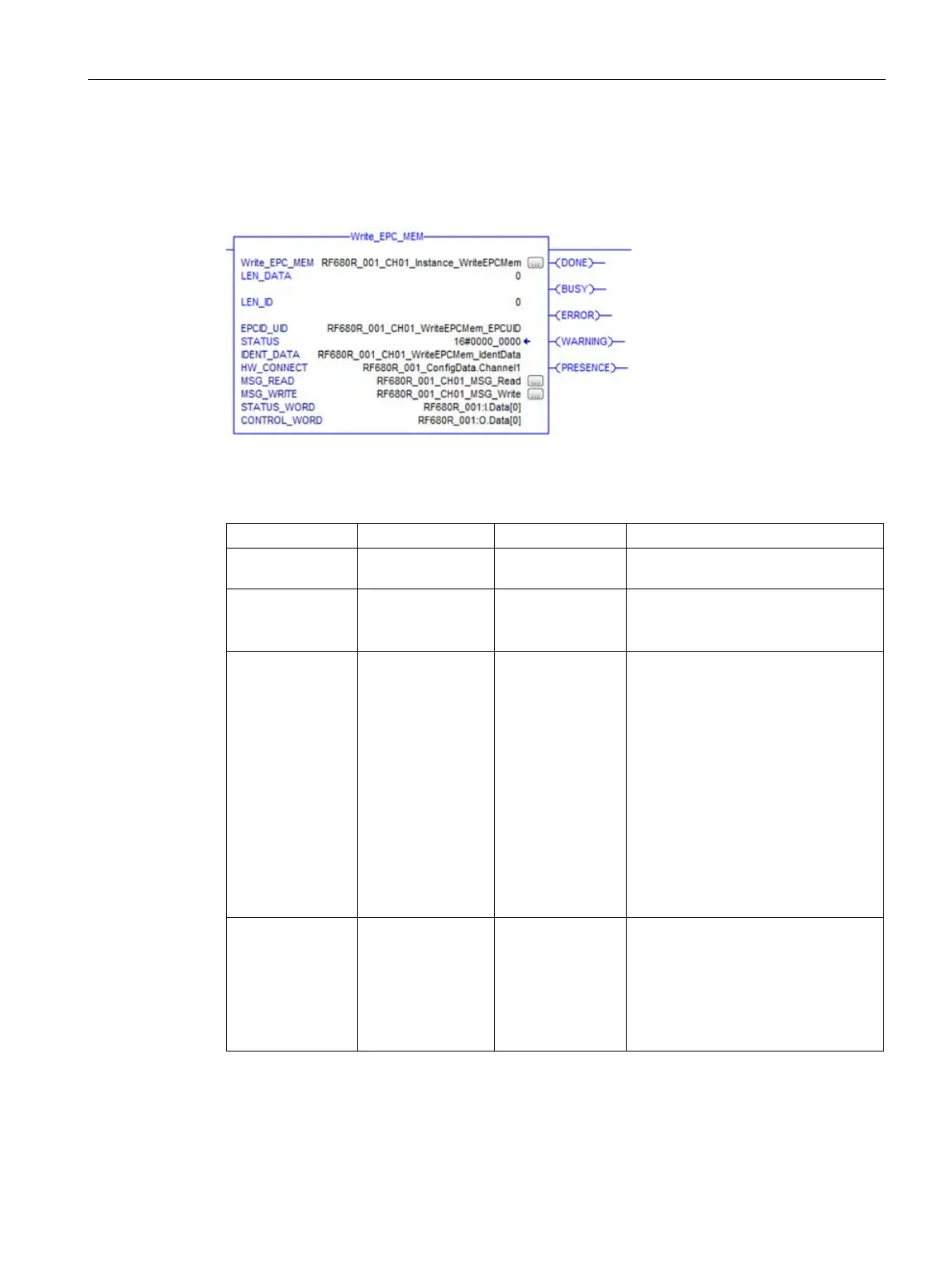

Figure 9-13 "Write_EPC_Mem" block
Table 9- 17 Explanation of the "Write_EPC_Mem" block
LEN_DATA DINT W#16#0 Length of the EPC memory to be
overwritten (1 ... 62 bytes)
LEN_ID DINT B#16#0 Length of the EPC-ID/UID
Default value: 0x00 ≙ unspecified
single tag access (RF680R, RF685R)
EPCID_UID SINT[62] 0 Buffer for up to 62 bytes EPC-ID, 8
bytes UID or 4 bytes handle ID.
• 2 - 62-byte EPC-ID is entered at
the start of the buffer (length is set
by "LEN_ID")
• 8-byte UID is entered at the start
of the buffer ("LEN_ID = 8")
• 4-byte handle ID must be entered
in the array element [5]-[8]
("LEN_ID = 8")
Default value: 0x00 ≙ unspecified
single tag access (RF620R, RF630R,
IDENT_DATA SINT[10] 0 Data buffer with the EPC memory data
to be overwritten.
Note.
When necessary a byte/array of any
size can be transferred to this parame-
ter. Note that the array must be ≥ 10
bytes long (e.g. "SINT[12400]").
