Configuration via STEP 7 (PROFINET device)
5.3 Overview of the configurable properties
SIMATIC RF650R/RF680R/RF685R
36 Configuration Manual, 03/2018, C79000-G8976-C386-06
Requirement
The reader is connected, has started up and a device name has been assigned to the
reader. The TIA Portal has been started.
Procedure
Follow the steps below to create a new project:
1. Call up the TIA Portal with "Start > All Programs > Siemens Automation > TIA Portal Vxx".
2. Create a new project.
3. Change to the Project view.
4. Using the project tree, insert a SIMATIC controller in the project using the "Add new
device" menu command.
The device view opens and the SIMATIC controller is displayed.
5. Drag the required reader type from the hardware catalog to the project ("Detecting &
Monitoring > Ident systems > PROFINET > SIMATIC RF600").
6. Change to the network view and connect the reader to the SIMATIC controller.
Note
Downloading the project
If you have already created an RF680R/RF685R project, you can select this in the start view
of the TIA Portal and open it with the "Load project" button.
5.3
Overview of the configurable properties
To display the reader properties, select the reader in the device view and open the
"Properties" tab.

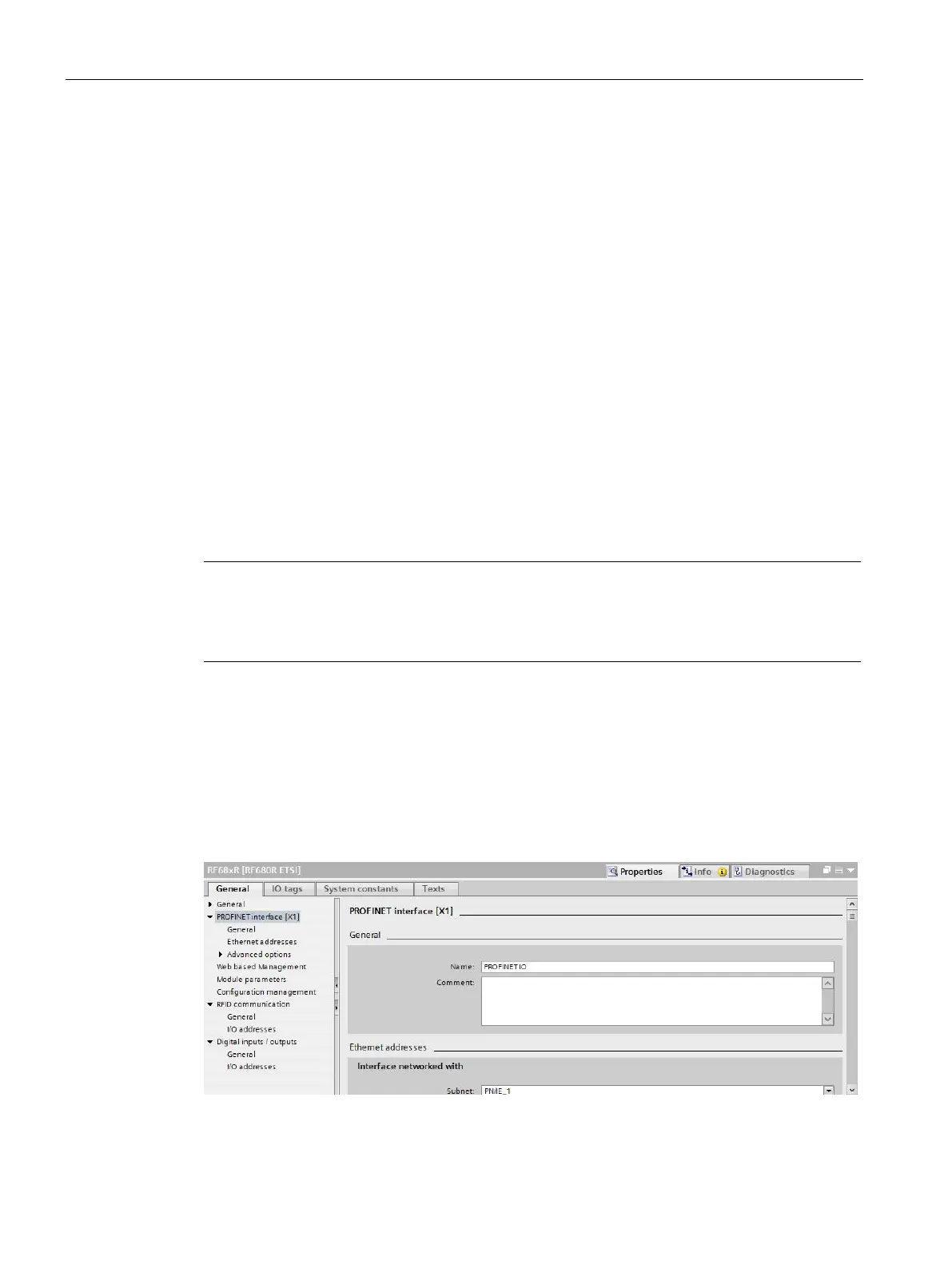

Figure 5-1 Properties of the reader
