6-1
MVC-CD200/CD300
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian model.
HK : Hong Kong model.
AUS : Australian model.
CN : Chinese model.
KR : Korea model.
J : Japanese model.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

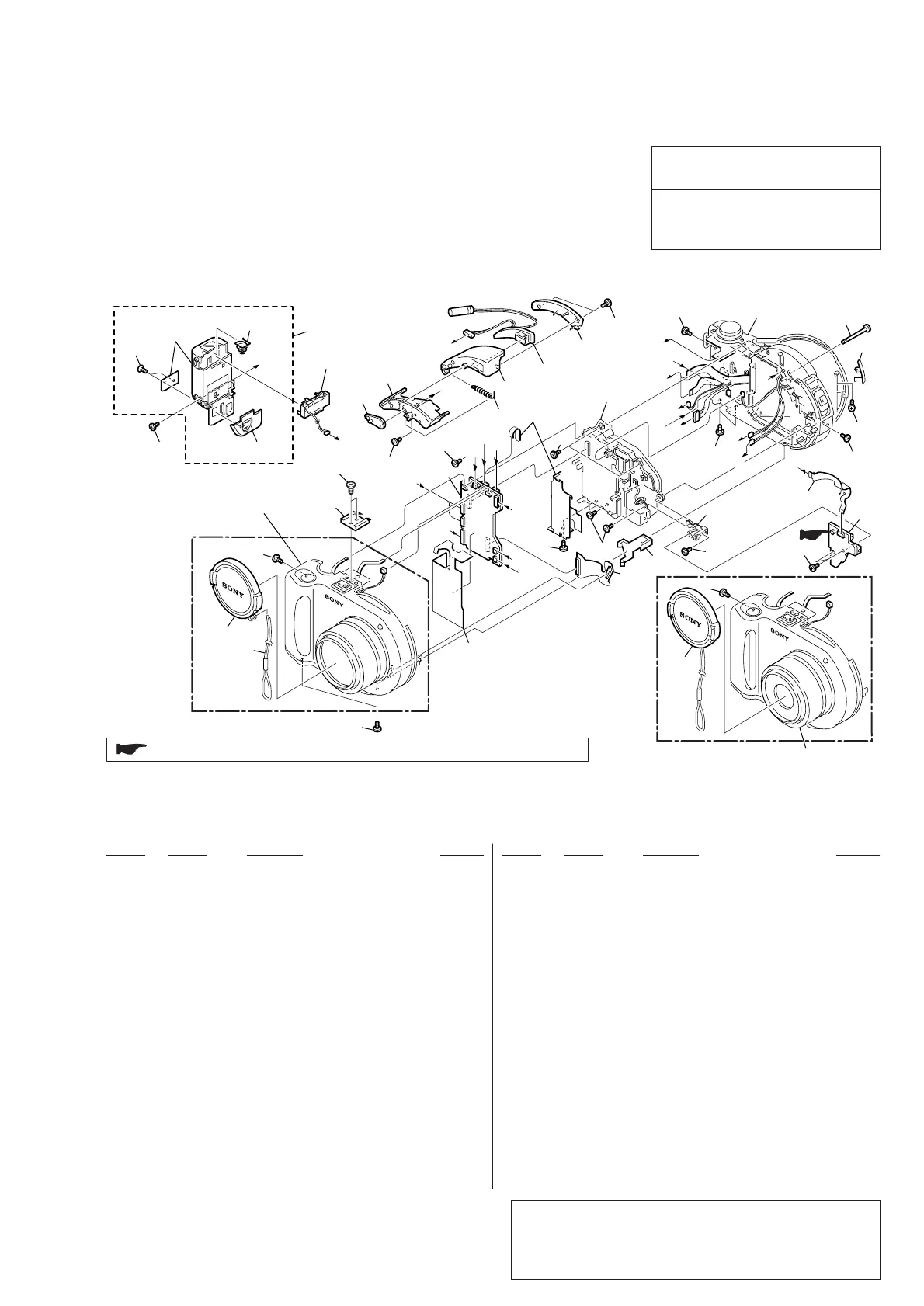

6-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3951-672-1 CAP ASSY, LENS (CD300)
1 X-3951-763-1 CAP ASSY, LENS (CD200)
2 3-968-729-71 SCREW (M2), LOCK ACE, P2
3 3-067-469-11 SHOE, ACCESSORY
4 3-069-159-21 PROCESS, (M2) INTERIOR LOCK
5 3-914-366-01 SCREW (DIA. 1.7X4), PRECISION
6 3-067-937-01 LID, BT (CD300)
6 3-067-937-11 LID, BT (CD200)
7 3-068-462-01 SPRING, ST-POP-UP
8 3-318-382-01 SCREW (1.7X3), TAPPING
9 3-969-380-01 SPRING, BATTERY
10 X-3951-639-1 HOLDER ASSY, BT (CD300)
10 X-3951-651-1 HOLDER ASSY, BT (CD200)
11 3-068-464-01 LEVER, ST SENSOR
12 A-7074-898-A SY-67 (300) BOARD, COMPLETE (SERVICE)
(CD300)
12 A-7074-900-A SY-67 (200) BOARD, COMPLETE (SERVICE)
(CD200)
13 3-068-461-01 BASE, STROBOSCOPE
14 3-067-950-01 LID, CPC (CD300)
14 3-067-950-11 LID, CPC (CD200)
15 X-3951-647-1 CASE ASSY, STROBOSCOPE (CD300)
15 X-3951-655-1 CASE ASSY, STROBOSCOPE (CD200)
0 16 1-476-676-11 FLASH UNIT
17 3-067-949-01 COVER, STROBOSCOPE (CD300)
17 3-067-949-11 COVER, STROBOSCOPE (CD200)
18 A-7010-815-A DDX-G2100 COMPLETE ASSY (SERVICE)
19 3-068-474-01 SCREW (M2), SPECIAL (STEP)
20 1-681-545-11 FP-361 FLEXIBLE BOARD
21 3-068-475-01 NUT PLATE (SIDE)
22 A-7074-836-A JK-208 BOARD, COMPLETE
23 3-068-875-01 RETAINER, B2B
24 1-681-548-21 FP-364 FLEXIBLE BOARD
25 3-713-791-11 SCREW (M1.7X5), TAPPING, P2
26 3-067-797-01 STRING (T), CAP (CD300)
BT901 1-694-815-11 TERMINAL BOARD, BATTERY
Exploded view and parts list of DDX-
G2100 COMPLETE ASSEMBLY are not
shown. Page 6-8 is not shown.
JK-208
SY-67
MD-083
J
D
2
2
BT901
Cabinet (front) section,
Lens cabinet section (See page 6-3),
Lens section (See page 6-4)
Cabinet (rear) section,
(See page 6-5, 6-6)
not
supplied
not
supplied
not
supplied
I
A
B
C
F
H
G
C
F
K
K
E
E
J
2
26
1
5
11
3
4
5
5
5
6
5
13
16
(Note)
18
(Note)
17
19
2
2
25
2
22
23
24
5
5
21
12
5
8
14
5
7
15
9
20
10
: BT101(Lithium battery) JK-208 board on the mount position. (See page 4-60)
Note: The charging capacitor is charged to the maximum of 300V.
There is a danger of electric shock due to the high voltage when the capacitor is touched by bare hand.
Discharge the voltage remained in the capacitor, referring to the Service Note (See page 5).
G
H
I
B
A
D
(CD300)
1
(CD200)
Cabinet (front) section,
Lens cabinet section
(See page 6-2),
Lens section
(See page 6-4)
