Sony MVC-CD200 Service Manual

2-9

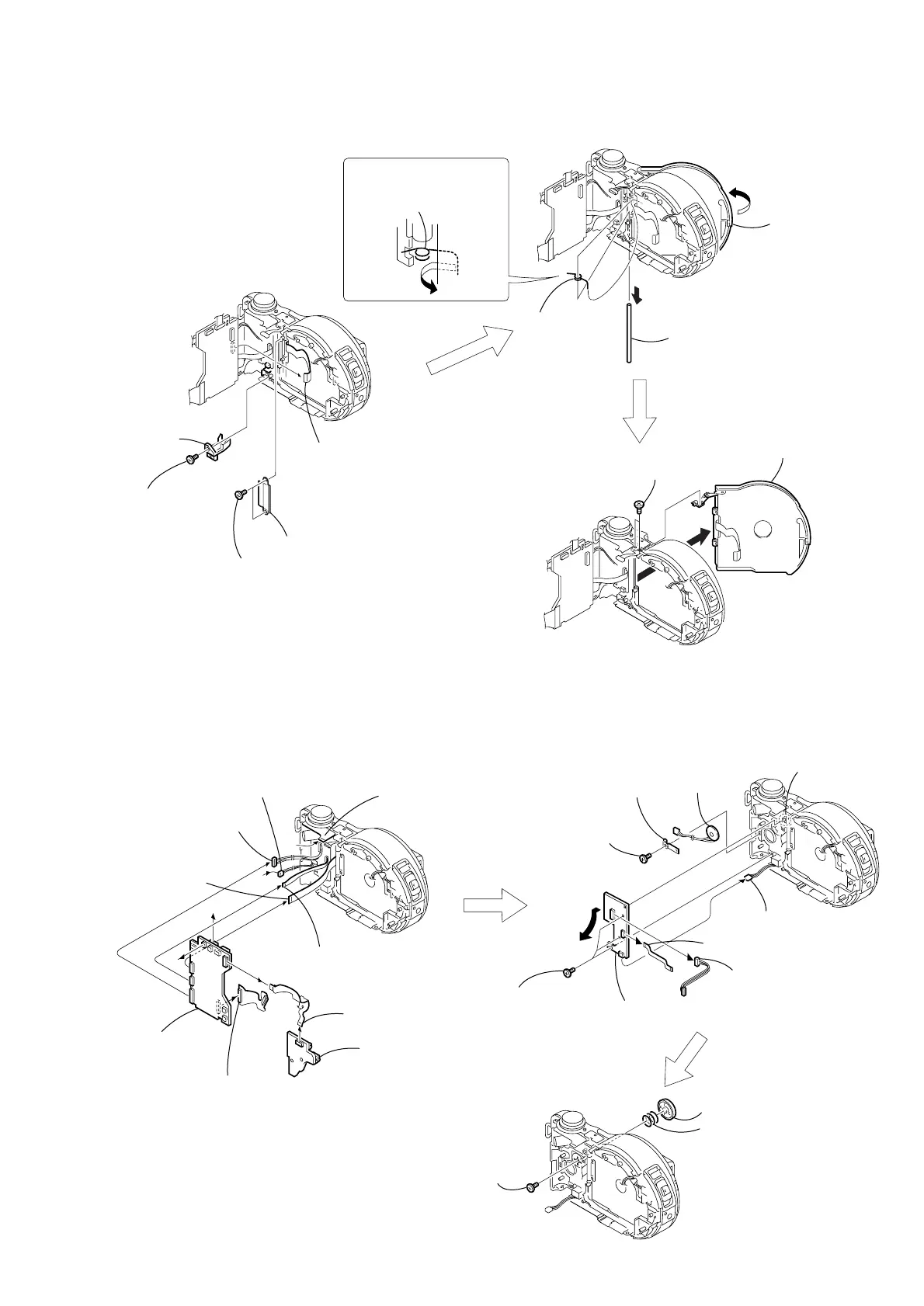

2-9. LID CD SECTION
2-10.FUNCTION BUTTON (FS-83 BOARD)
FS-83
FS-83
FS-83
SY-
67
SY-
67
SY-
67
5 FP-363 flexible
board (33P)
3 PRE
open spring
4 Flexible cover (CD)
2 Parallel
pin cover
3 Two precision
screws
(DIA 1.7 × 4)
1 Two screws
(M 1.7 × 3), P2
1 Precision
screw
(DIA 1.7 × 4)
1 Open the lid
CD section
2 Remove the Parallel pin (DIA 3)
in the direction of the arrow A.
Remove the PRE open
spring in the direction of the
arrow C.
2 Remove the lid CD section in
the direction of the arrow B.
A
B
C
JK-208
FS-83
SY-67
A
B
B
A
9 SY-67 board
2 FP-361 flexible
board (27P)
1 FP-364 flexible
board (70P)
8 Harness
(FS-136) (14P)
5 Harness
(FS-136) (14P)
6 DC-IN
connector (3P)
4 Control switch block
(ZK-503) (14P)
7 FP-362 flexible
board (11P)
4 FP-362 flexible board (11P)
5 Speaker (2P)
9 Speaker
2 Dowel
8 Speaker
retainer
6 FP-363 flexible
board (33P)
3 JK-208 board
3 Remove the FS-83 board
in the direction of the arrow.
7 Precision
screw
(DIA 1.7 × 4)
1 Three
precision
screws
(DIA 1.7 × 4)
3 Function button
2 F button spring
1 Special head screw
(M 1.7 × 3)
