Sony MVC-CD200 Service Manual

5-11

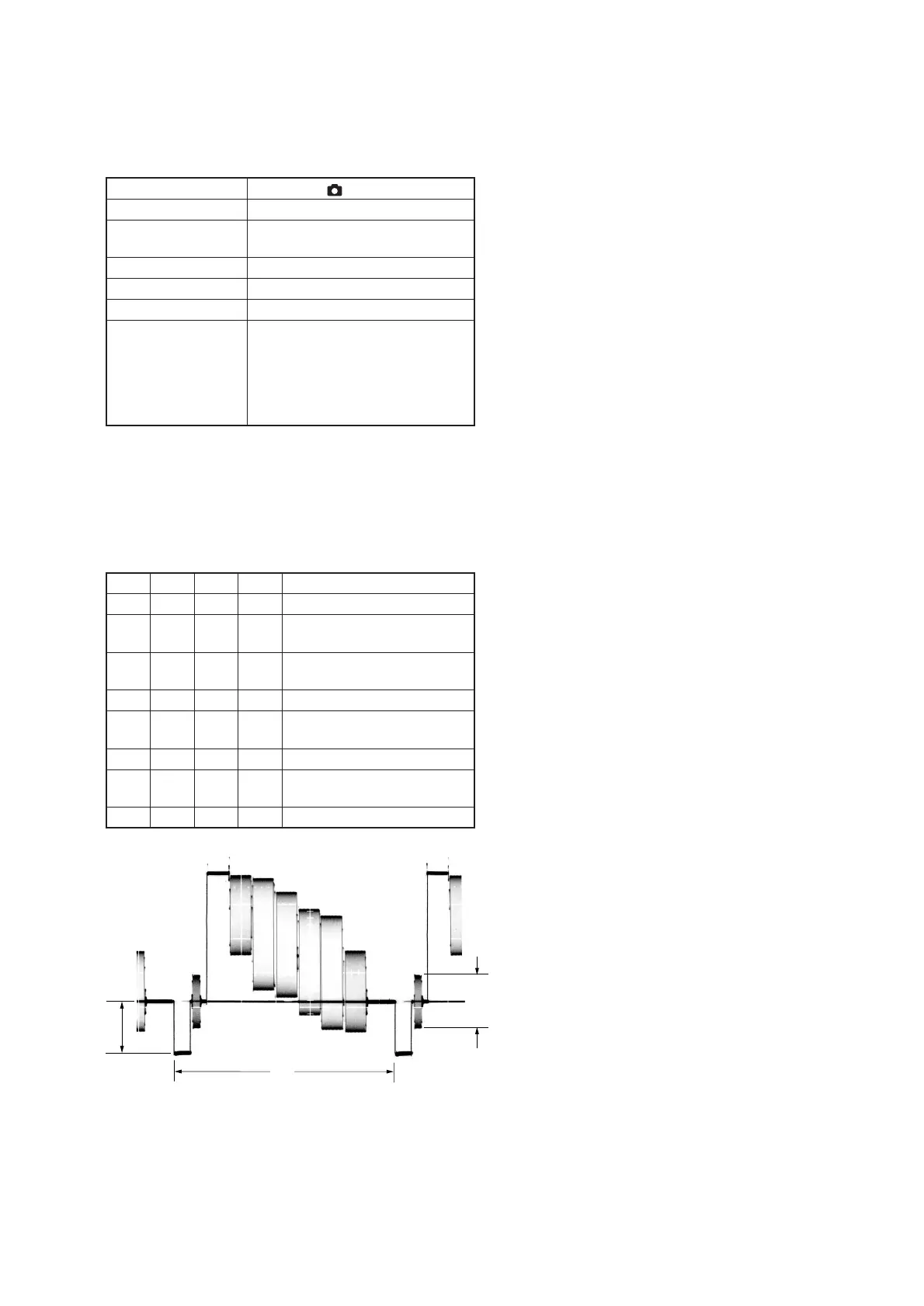

1-3. VIDEO SYSTEM ADJUSTMENTS
1. Video Output Level Adjustment (SY-67 board)
Adjust the sync level and burst level of the composite video signal
output.
Mode Still (Auto ( ))
Subject Arbitrary
Measurement Point Video terminal of AV OUT jack
(75Ω terminated)
Measuring Instrument Oscilloscope
Adjustment Page D
Adjustment Address C6, C7
Specified Value Sync level:
A=286 ± 5mV (NTSC mode)
A=300 ± 5mV (PAL mode)
Burst level:
A=286 ± 5mV (NTSC mode)
A=300 ± 5mV (PAL mode)
Note: If “CLOCK SET” display appeared in the screen after the power is
turned on, set the clock, or cancel the display.
SETUP setting:
VIDEO OUT (SETUP 2) ...................... NTSC (NTSC mode)
............................ PAL (PAL mode)
Adjusting method:
Order Page Address Data Procedure
1 0 01 01 Set the data.
2 4 F1 04 Set the data, and press PAUSE
button.
3 D C6 Change the data and set the sync
level (A) to the specified value.
4 D C6 Press PAUSE button.
5 D C7 Change the data and set the burst
level (A) to the specified value.
6 D C7 Press PAUSE button.
7 4 F1 00 Set the data, and press PAUSE
button.
8 0 01 00 Set the data.
B
H
A
Fig. 5-1-8.
