5-21

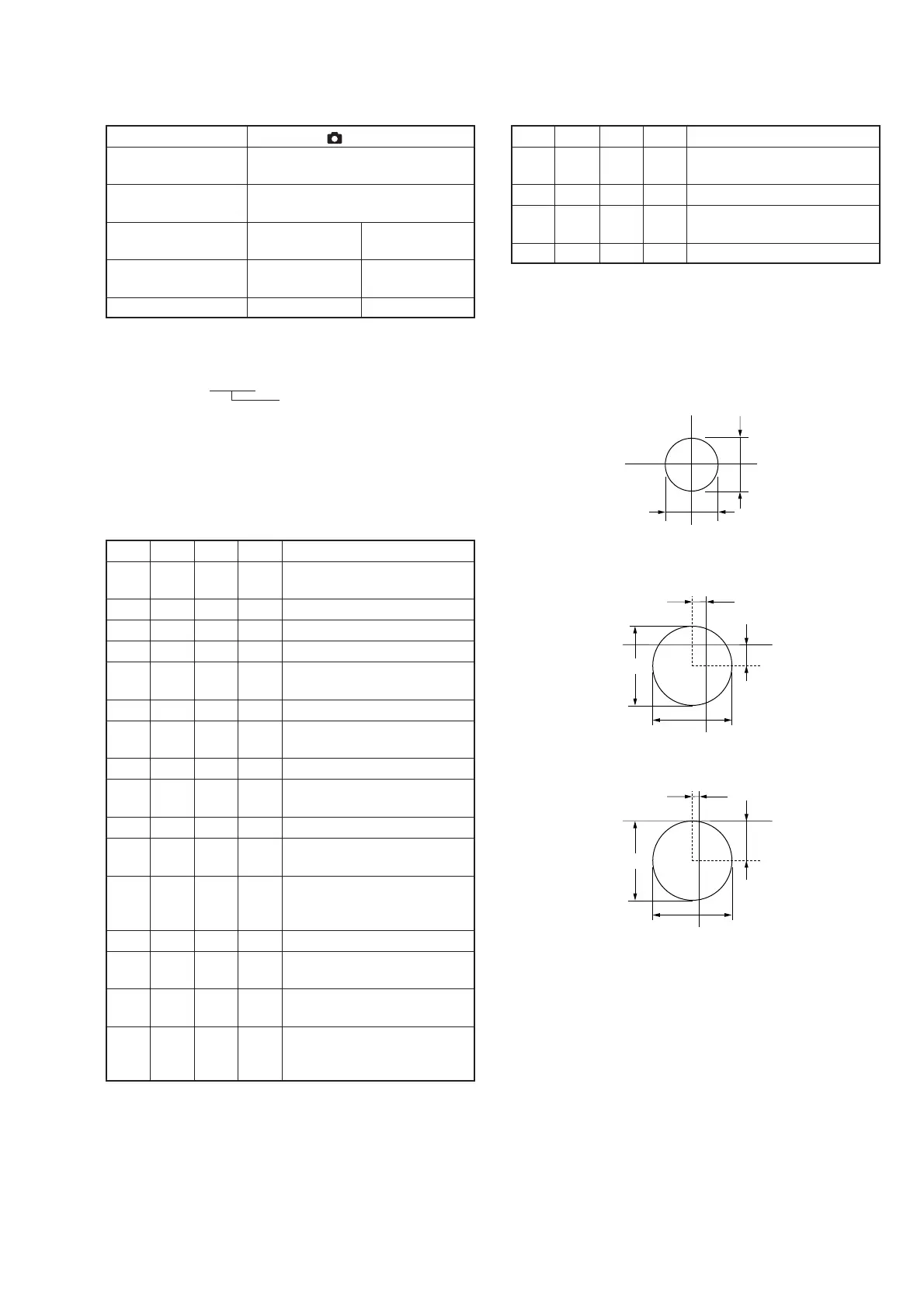

13. White Balance Check
Mode Still (Auto ( ))
Subject Clear chart
(Color reproduction adjustment frame)
Filter Filter C14 for color temperature
correction
Measurement Point Display data of Video output
page 1 (Note2) terminal
Measuring Instrument
Adjustment remote
Vectorscope
commander
Specified Value 3E00 to 4200 Fig. 5-1-14.
Note1: This adjustment should be carried out upon completion of “Data
Setting during Camera System Adjustments”.
Note2: Displayed data of page 1 of the adjustment remote commander.
1 : XX : XX
Display data
Note3: Check that the data of page: 6, address: 02 is “00”. If not, to page:
6, address: 01, set data: 00, and press the PAUSE button.
Switch setting:
ZOOM....................................................................WIDE end
FOCUS............................................................ Manual (0.3m)
Checking method:
Order Page
Address
Data Procedure
1 Check that the lens is not covered
with any filter.
2 0 01 01 Set the data.
3 4 06 01 Set the data.
4 E 52 Write down the data.
5 E 52 0E Set the data, and press PAUSE
button.
INDOOR white balance check
6 6 01 0F Set the data, and press PAUSE
button.
7 0 03 04 Set the data.
81
Check that the display data (Note2)
satisfies the specified value.
9 0 03 05 Set the data.
10 1
Check that the display data (Note2)
satisfies the specified value.
11 Check that the center of the white
luminance point is within the
circle shown Fig. 5-1-14. (A).
OUTDOOR white balance check
12 Place the C14 filter for color
temperature correction on the lens.
13 6 01 3F Set the data, and press PAUSE
button.
14 Check that the center of the white
luminance point is within the
circle shown Fig. 5-1-14. (B).
Processing after Completing Adjustments:
Order Page
Address
Data Procedure
1 6 01 00 Set the data, and press PAUSE
button.
2 4 06 00 Set the data.
3 E 52 Set the data that is written down
at step4, and press PAUSE button.
4 0 01 00 Set the data.
R-Y
4mm
B-
4mm
R-Y
B-Y
1.0mm
6mm
6mm
1.5mm
Fig. 5-1-14 (A).
R-Y
B-Y
0.5mm
6mm
6mm
3mm
Fig. 5-1-14 (B).
MVC-CD200
MVC-CD300
