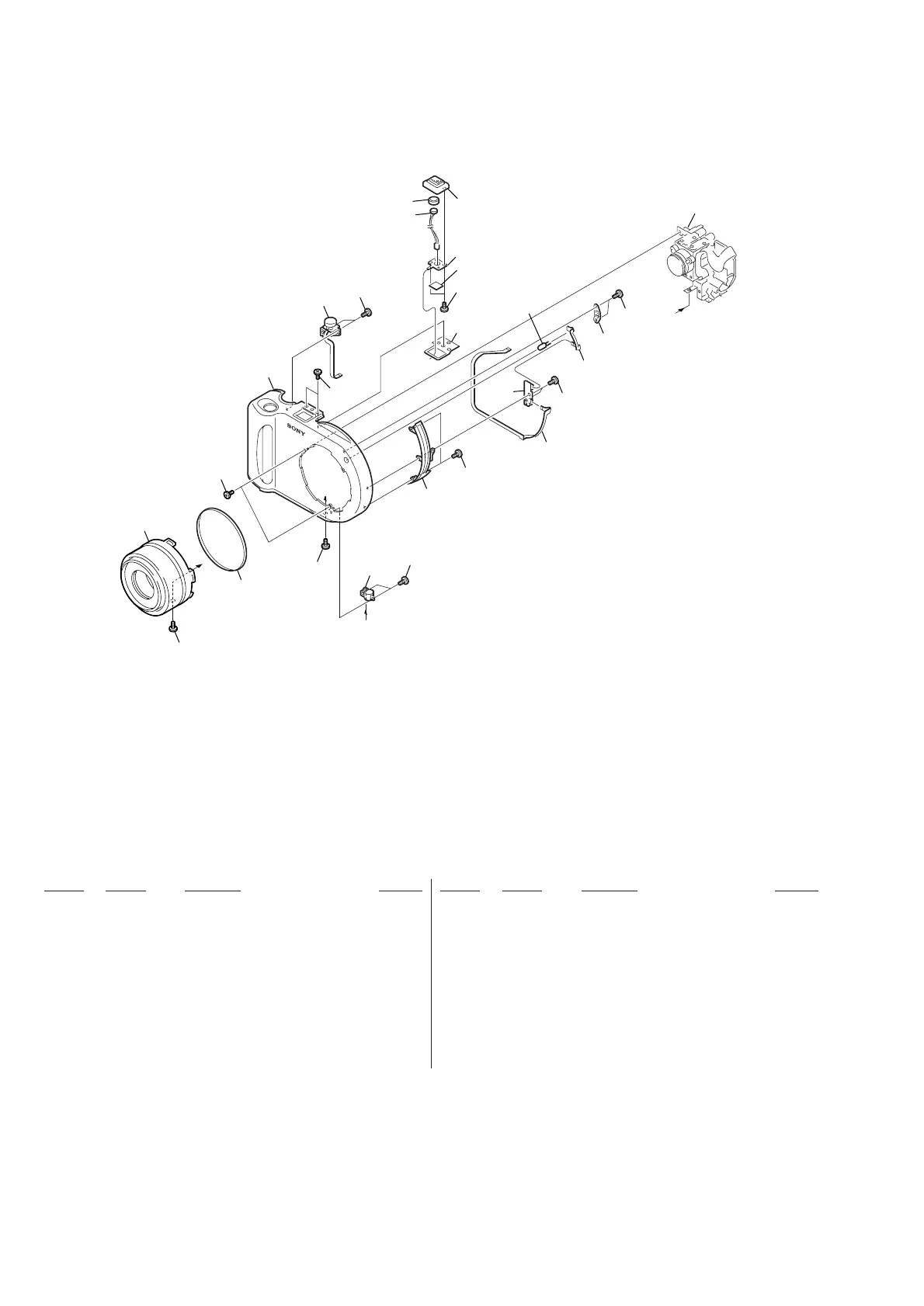

6-1-2. CABINET (FRONT) SECTION, LENS CABINET SECTION
(CD200)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-968-729-71 SCREW (M2), LOCK ACE, P2
52 X-3951-650-1 CABINET ASSY, LENS
53 3-914-366-01 SCREW (DIA. 1.7X4), PRECISION
54 3-060-274-01 SCREW, TRIPOD
55 X-3951-652-1 CABINET (FRONT) ASSY
56 3-989-735-61 SCREW (M1.7), LOCK ACE, P2
57 1-476-674-11 SWITCH BLOCK, CONTROL (RL-503)
58 3-067-948-11 PLATE, SIDE ORNAMENTAL
59 3-713-791-05 SCREW (B1.7)
60 3-068-402-01 SHEET METAL, RETAINER
61 3-068-488-01 CUSHION, MICROPHONE
62 3-062-299-01 SHEET, MICROPHONE
63 X-3951-646-1 HOLDER ASSY, MICROPHONE
64 1-681-549-11 FP-369 FLEXIBLE BOARD
65 A-7074-907-A TK-61 (200) BOARD, COMPLETE
66 1-681-550-11 FP-370 FLEXIBLE BOARD
67 3-068-494-01 CAP, LED
LED901 8-719-084-32 DIODE TLOH20TP
MIC901 1-542-457-11 MICROPHONE
B
A
B
A
52
51
51
58
53
64
53
65
59
60
66
67
53
51
53
61
62
55
57
56
63
53
54
not
supplied
Lens section (See page 6-4
)
not
supplied
LED901
MIC901
