Sony MVC-CD200 Service Manual

6-4

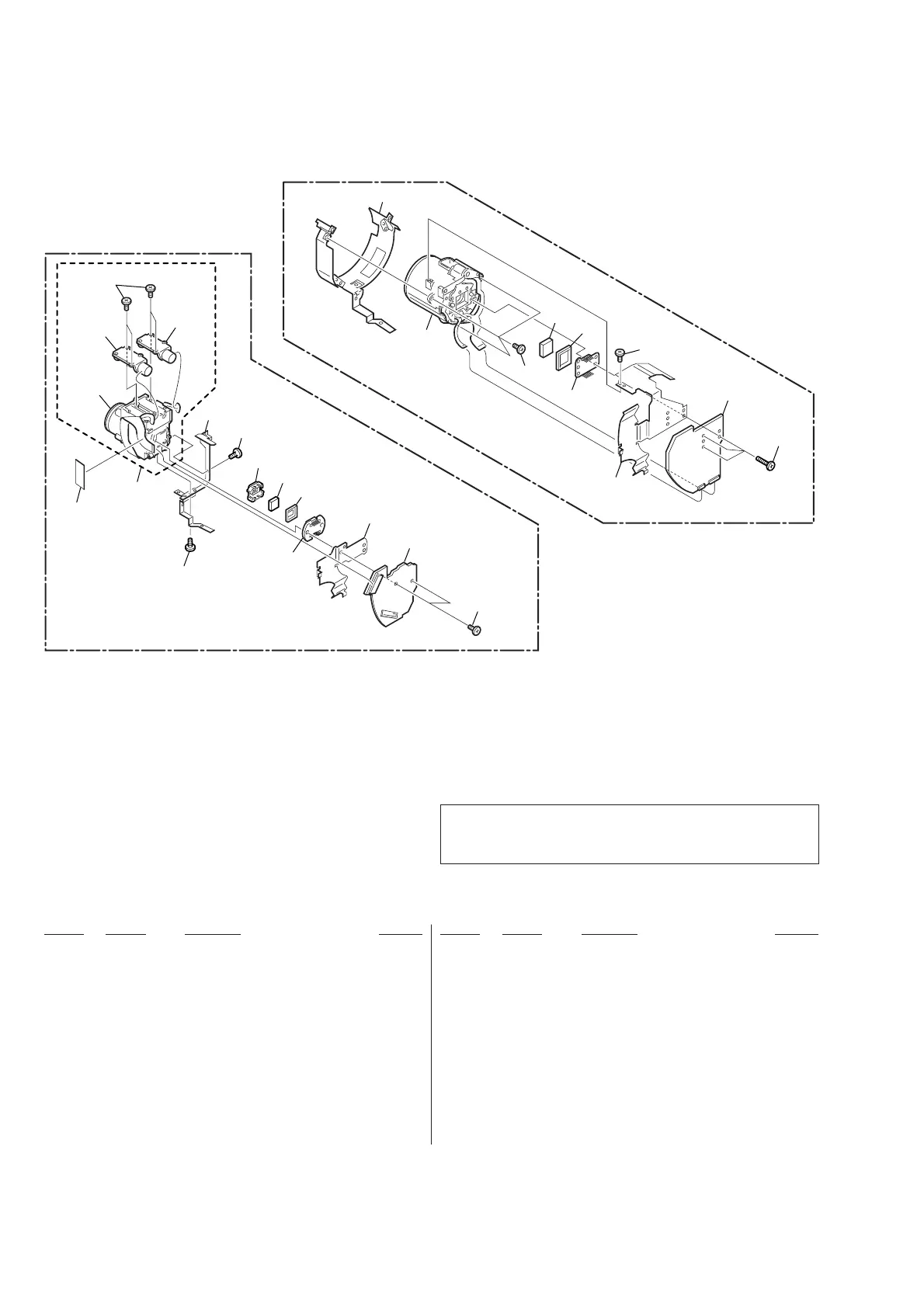

6-1-4. LENS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 3-831-441-11 SPACER (CD200)
152 1-758-415-11 LENS, ZOOM (VCL-6103WA) (CD200)
153 3-068-533-01 FRAME (M), LENS (CD200)
154 3-914-366-01 SCREW (DIA. 1.7X4), PRECISION (CD200)
155 3-058-032-01 ADAPTOR (CL), CCD FITTING (CD200)
156 1-758-436-11 FILTER BLOCK, OPTICAL (CD200)
157 3-060-714-01 RUBBER (CL), SEAL (CD200)
158 A-7074-843-A CD-333 BOARD, COMPLETE (CD200)
159 3-947-268-11 TITE (2), +B TAPPING (P) (CD200)
160 3-068-443-01 FRAME (H), LENS (CD300)
161 A-7031-247-A LENS ASSY (CD300)
162 3-989-735-31 SCREW (M1.7), LOCK ACE, P2 (CD300)
163 1-758-437-11 FILTER BLOCK, OPTICAL (CD300)
164 3-067-751-01 RUBBER (N), SEAL (CD300)
165 3-713-791-05 SCREW (B1.7) (CD300)
166 A-7074-840-A CD-334 BOARD, COMPLETE (CD300)
167 3-318-203-11 SCREW (B1.7X6), TAPPING (CD300)
IC101 A-7031-236-A CCD BLOCK ASSY (CCD IMAGER) (CD200)
IC401 A-7031-268-A CCD BLOCK ASSY (CCD IMAGER) (CD300)
M001 3-709-573-01 MOTOR UNIT, FOCUS (CD200)
M002 3-709-574-01 MOTOR UNIT, ZOOM (CD200)
CD-333
CD-334
IC101
M002
M001
157
156
155
IC401
158
159
154
153
160
(CD200)
(CD300)
161
163
164
165
154
152
151
166
167
162
not
supplied
not
supplied
not
supplied
not
supplied
Be sure to read “Precautions Upon Replacing CCD Imager”
on pages 4-15 (CD200) and 4-16 (CD300) when changing
the CCD imager.
