Sony RM-IP500 User Manual

38
Adjusting a Camera
(excluding ILME-FR7)
The functions that can be operated vary
depending on the camera model and
configuration. For details, see “Function of
Buttons/Knobs in Each Block by Camera Model”
(page 64).

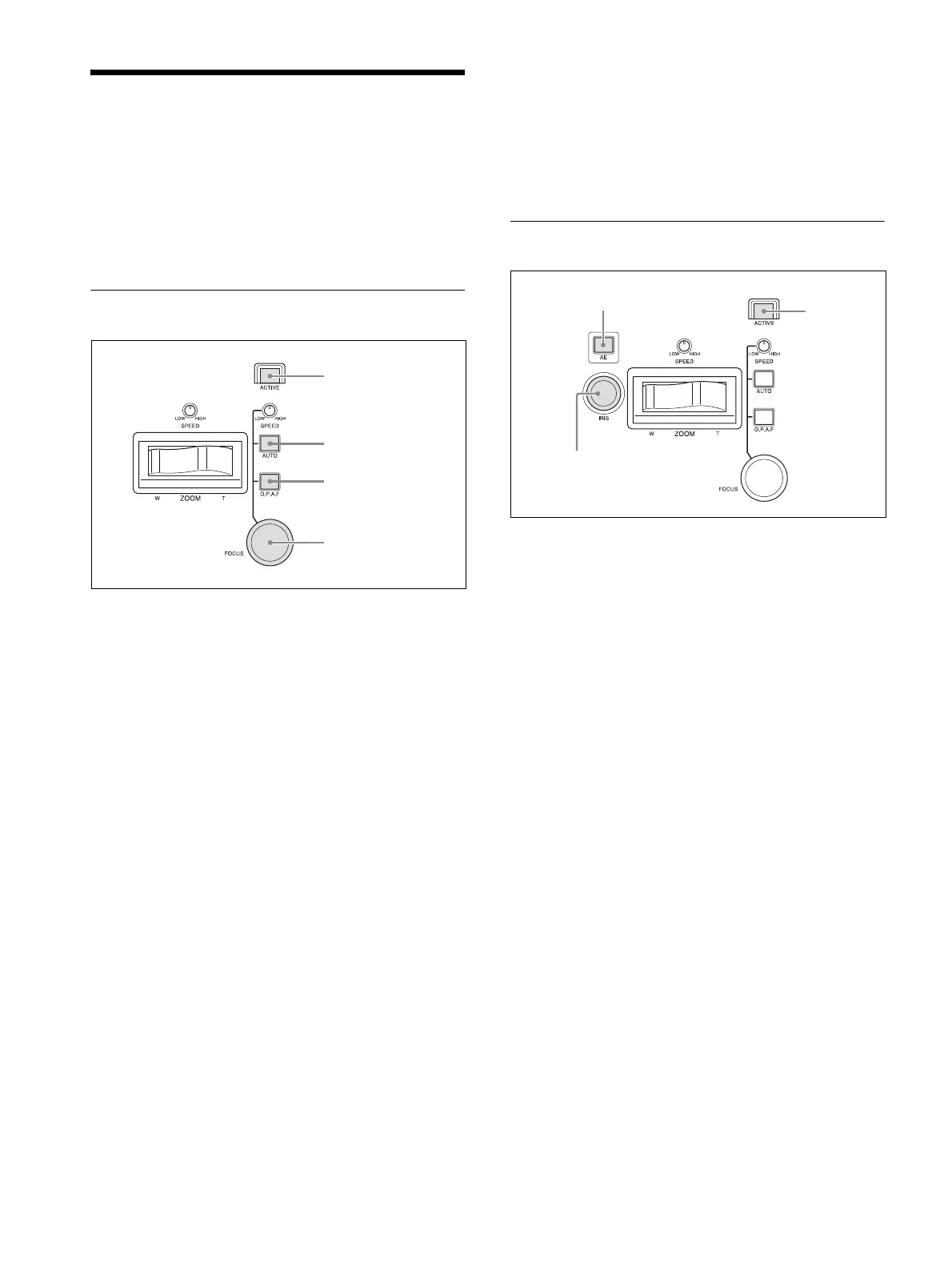

Adjusting the focus
1 Select the target camera to control.
For details about selection, see “Selecting a
Camera” (page 34).
2 Press the ACTIVE button, turning it on
(button is lit), on the lens control block.
The lens control block becomes enabled.
To adjust the focus automatically
Press the AUTO FOCUS mode button, turning it
on (button is lit yellow).
Auto focus mode is activated.
In auto focus mode, the ca
mera focuses on the
subject in the center of the screen automatically.
To adjust the focus manually
Press the AUTO FOCUS mode button, turning it
off (button is not lit). Turn the FOCUS knob
counterclockwise/clockwise to adjust the focus
while monitoring the image of the subject.
The focus speed is set using the FOCUS SPEED
kn
ob. Turning the knob clockwise increases the
focus speed, and turning counterclockwise
decreases the focus speed.
One-push auto focus during manual
focus adjustment
Press the O.P.A.F (one-push auto focus) button.
The button blinks yellow for a few seconds, and
then the camera focuses on the subject in the
center of the screen automatically.
Adjusting the brightness
1 Select the target camera to control.
For details about selection, see “Selecting a
Camera” (page 34).
2 Press the ACTIVE button, turning it on
(button is lit), on the lens control block.
To adjust the exposure automatically
Press the AE button, turning it on (button is lit).
To adjust the exposure manually
1 Set CONFIG >RM SETUP >AE CONFIG to
MANUAL or IRIS Pri in the RM menu.
For details about AE CONFIG, see “AE
CONFIG” (page 73).
2 Press the AE button, turning it off (button
is not lit).
3 Turn the IRIS knob to adjust the iris of the
camera.
To operate using IRIS, GAIN, and
SHUTTER buttons
1 Set CONFIG >RM SETUP >AE CONFIG to
MANUAL, IRIS Pri, GAIN Pri, or SHUTTER Pri
in the RM menu.
For details about AE CONFIG, see “AE
CONFIG” (page 73).
2
Auto adjust
One-push auto
adjust
Manual adjust
2
Auto adjust
Manual adjust
