Sony RM-IP500 User Manual

82
Specifications
Input/output connectors
Control input/output
VISCA RS-422 OUT connector:
RJ
-45
LAN connector: RJ-45, 10BASE-T/
10
0BASE-TX auto sensing
GPI I/O: D-sub 15-pin TALLY IN/
CONT
ACT OUT
Control signal format (RS-422 communication)
9,600 bps/38,400 bps
Power connector
JEITA type 4 (12 V DC)
General specifications
Input voltage 12 V DC (10.8 V to 13.2 V)
Current consumption
0.6 A max. (All lamps lit)
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Dimensions 306 mm × 159.3 mm × 224.1 mm
(12
1
/
8
in × 6
3
/
8
in × 8
7
/
8
in)
(width / height / depth)
(excluding protrusions)
Mass Approximately 2400 g (5 lb 4.7 oz)
Optional accessories
AC adapter (AC-UES1230 series)
For details about the recommended AC adapter,
conta
ct your Sony sales representative.
Design and specifications are subject to change
with
out notice.

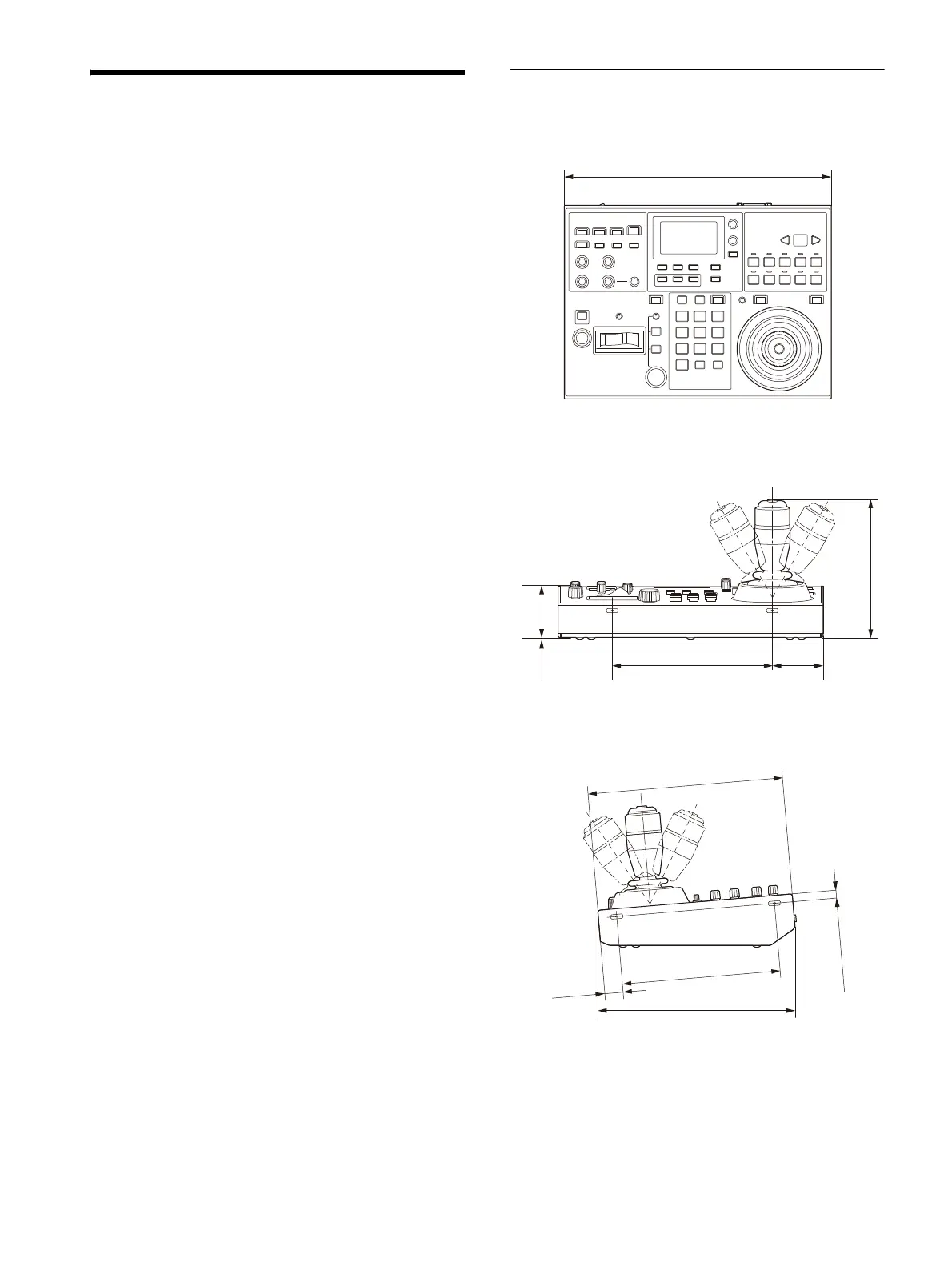

Dimensions
Top
Front
Side
306 (12
1
/
8
)
Unit: mm (in)
63 (2
1
/
2
)
159.3 (6
3
/
8
)
58.9
(2
3
/
8
)
1.8
(
3
/
32
)
Unit: mm (in)
180 (7
1
/
8
)
2
2
2
(
8
3
/
4
)
224.1 (8
7
/
8
)
2
1
(
2
7
/
3
2
)
(
l
ef
t
/
r
i
g
h
t
)
1
8
0
(
7
1
/
8
)
(
l
e
f
t
/
r
i
g
h
t
)
8
.
5
(
1
1
/
3
2
)
(
f
r
o
n
t
/
b
a
c
k
)
Unit: mm (in)

Sony RM-IP500 Specifications

General

Interface	Wired
Product color	Black
Brand compatibility	Sony
Remote control proper use	-
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Built-in display	Yes
Maximum range	- m
I/O ports	RJ-45, D-Sub 15-pin, DC
Rechargeable	No
Harmonized System (HS) code	85299097

Weight and Dimensions

Depth	224.1 mm
Width	306 mm
Height	159.3 mm
Weight	2400 g
