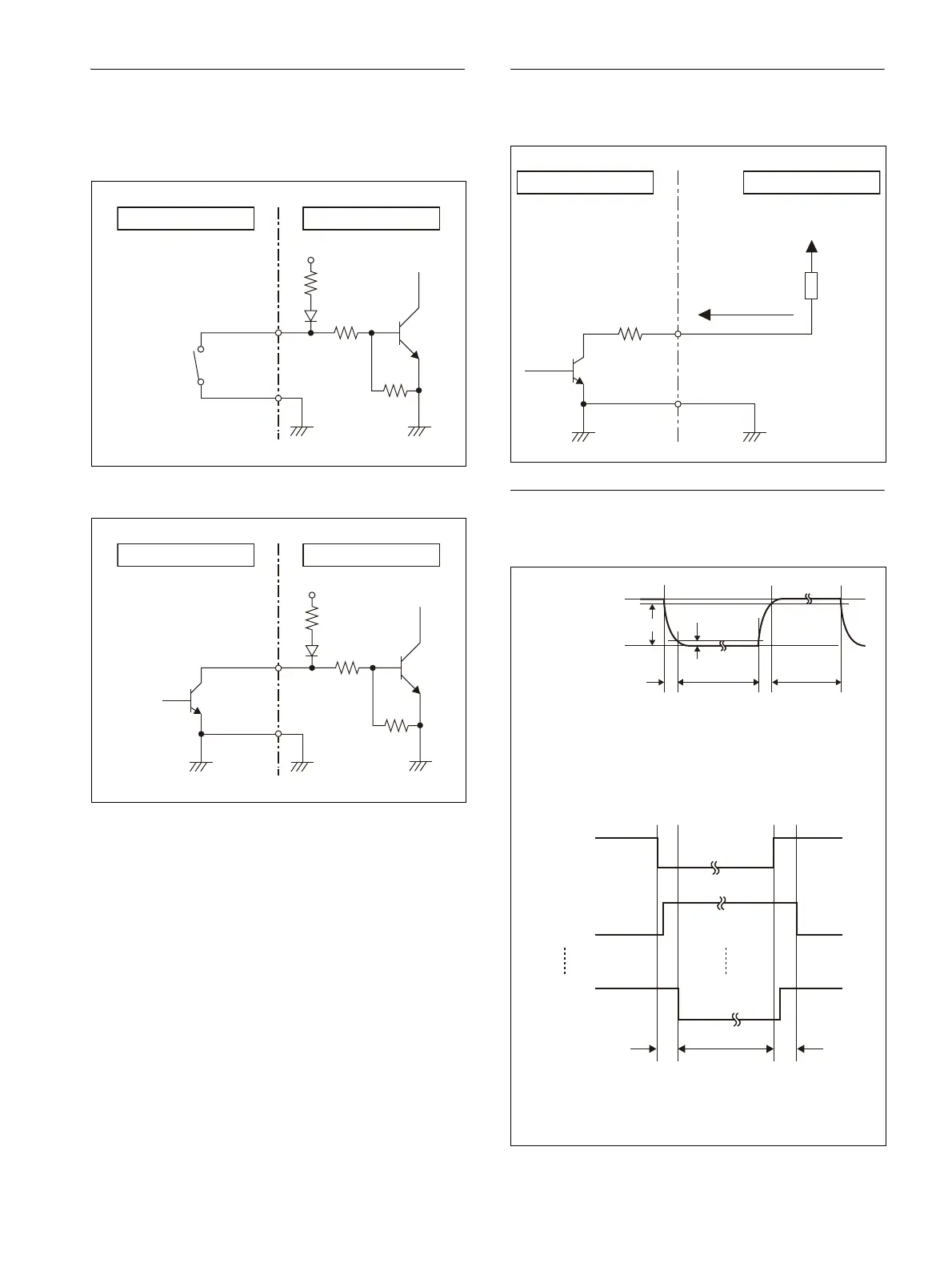

TALLY/CONTACT connector input
connection example
Switch or relay connection
Open-collector connection
TALLY/CONTACT connector output
connection example
Input waveform of TALLY/
CONTACT connector
External device RM-IP500
10 kΩ
47 kΩ
47 kΩ
+3.3 V
External device RM-IP500
10 kΩ
47 kΩ
47 kΩ
+3.3 V
External deviceRM-IP500
Recommended voltage:
5 V (Maximum 24 V)
Maximum load
current: 100 mA
4.7 Ω
Load
Thold
Tally in 1
Tally in 2
Tally in 7
Tskew Tskew
90%
10%
Tfall Trise
ThighTlow
Approx. 2.7 V
(open voltage)
In Expand mode, the following can also
be applied:
0.2 V or less
(closed voltage)
Tfall, Trise: within 5 msec
Tlow, Thigh: 33 msec or more
Tskew: within 0.5 msec
Thold: 33 msec or more

Sony RM-IP500 Specifications

General

Interface	Wired
Product color	Black
Brand compatibility	Sony
Remote control proper use	-
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Built-in display	Yes
Maximum range	- m
I/O ports	RJ-45, D-Sub 15-pin, DC
Rechargeable	No
Harmonized System (HS) code	85299097

Weight and Dimensions

Depth	224.1 mm
Width	306 mm
Height	159.3 mm
Weight	2400 g
