1 Select the target camera to control.
For details about selection, see “Selecting a
Camera” (page 34).
2 Press the ACTIVE button, turning it on
(button is lit), on the color adjustment
block.
3 Adjust the black balance using the R-
BLACK knob and B-BLACK knob.
Adjust the R-BLACK value using the R-BLACK
knob
, and the B-BLACK value using the B-
BLACK knob.
To adjust the master black
1 Set the M.BLACK value using OPERATION
>BLACK in the RM menu.
2 Adjust the master black using the MASTER
BLACK knob.
Turning the knob counterclockwise
d
ecreases the master black level, and
turning clockwise increases the master black
level.
Recording Video to a
Memory Card (ILME-
FR7)
On the ILME-FR7, you can record video to a
memory card inserted in the camera.
1 Insert a memory card in the camera.
For details about preparation for recording,
r
efer to the Help Guide of the camera.
2 Press the REC START/STOP button in the
color adjustment block of the unit.
The camera starts recording and the button
lights up
red.
To stop recording, press the REC START/STOP
b
utton again. Recording stops and the button
turns off (not lit).
To play back the memory card video
1 Set each of Thumbnail and Slot Select to
one of the assignable buttons (ASSIGN 1 to
ASSIGN 9) of the camera, and assign each
to an assign button of the unit.
For details about assign buttons, see
“Assigning Functions to Assign Buttons”
(page 51).
2 Press the assign button that was assigned
with Thumbnail in step 1.
The thumbnail screen with the clips recorded
o
n the memory card is output as the camera
image. Press the [Slot Select] button to
switch between memory cards.
3 Select the clip you want to play back in
CAM GUI operation mode.
For details about CAM GUI operation, see
“Operating with the Screen Display Overlaid

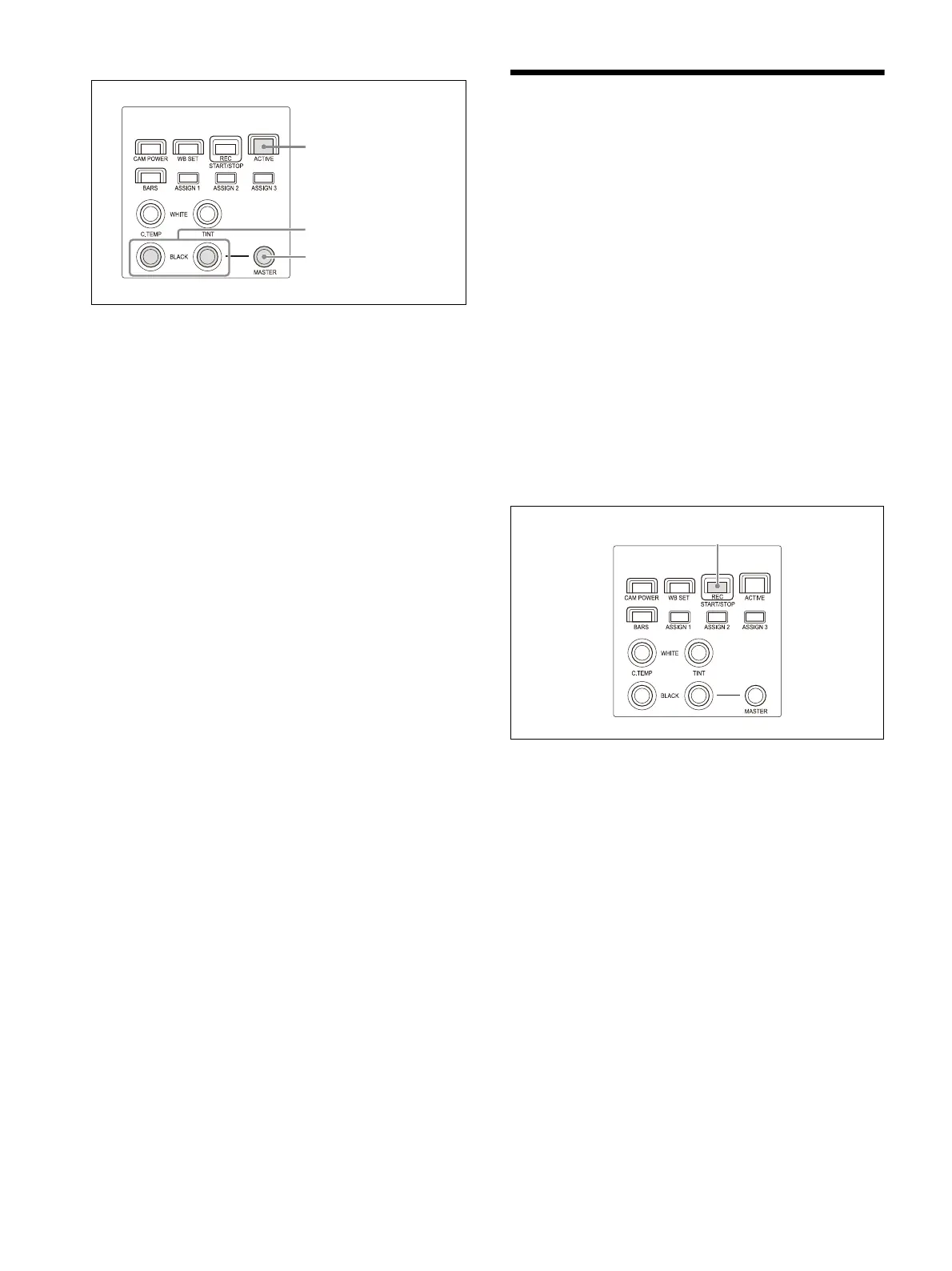

2
Manual adjust
Master black adjust
REC START/STOP button
