Suzuki 2005 GSF1200 User Manual

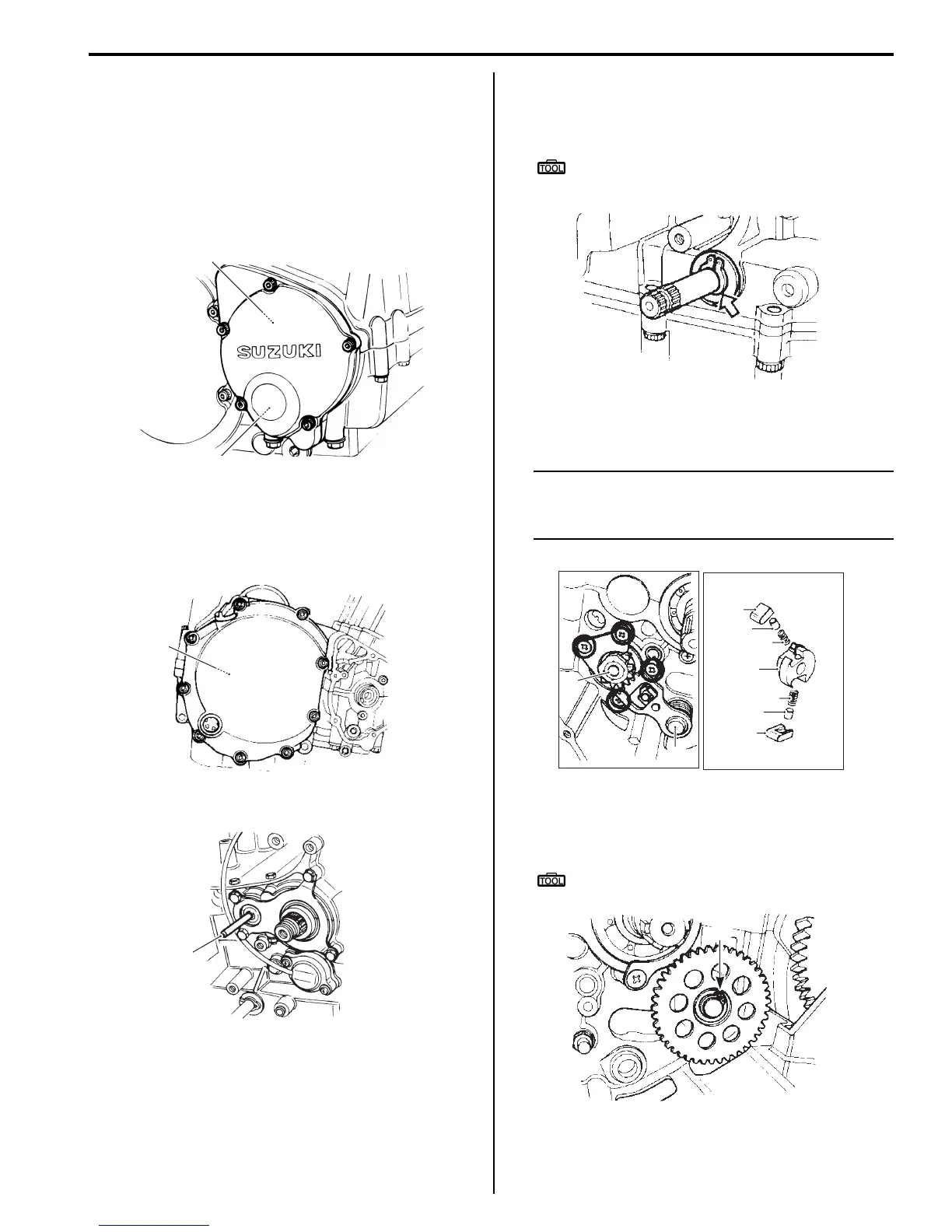

Engine Mechanical: 1D-43
CKP Sensor / Oil Pressure Switch
1) Remove the CKP sensor component parts (1). Refer
to “CKP Sensor Removal and Installation: in Section
1H”.
2) Disconnect the oil pressure switch lead wire and
remove the oil pressure switch (2). Refer to “Oil
Pressure Switch Removal and Installation: in
Section 1E”.
Clutch
1) Remove the clutch component parts (1). Refer to
“Clutch Removal: in Section 5C”.
2) Draw out the clutch push rod (2).
Gearshift
1) Remove the snap ring and washer from the gearshift
shaft.
Special tool
: 09900–06107 (Snap ring pliers)
2) Draw out the gearshift shaft (1), and then remove the
gearshift cam driven gear (2).
NOTE
When removing the gearshift cam driven
gear, do not lose the gearshifting pawl (3), pin
(4) and spring (5).
Oil Pump Driven Gear
1) Remove the snap ring (1).
Special tool
: 09900–06107 (Snap ring pliers)
1
2
I649G1140096-02
1
I649G1140098-02
2
I649G1140099-02
I649G1140109-01
1
2
3
4
5
2
5
4
3
I649G1140110-02
1
I649G1140111-01

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
