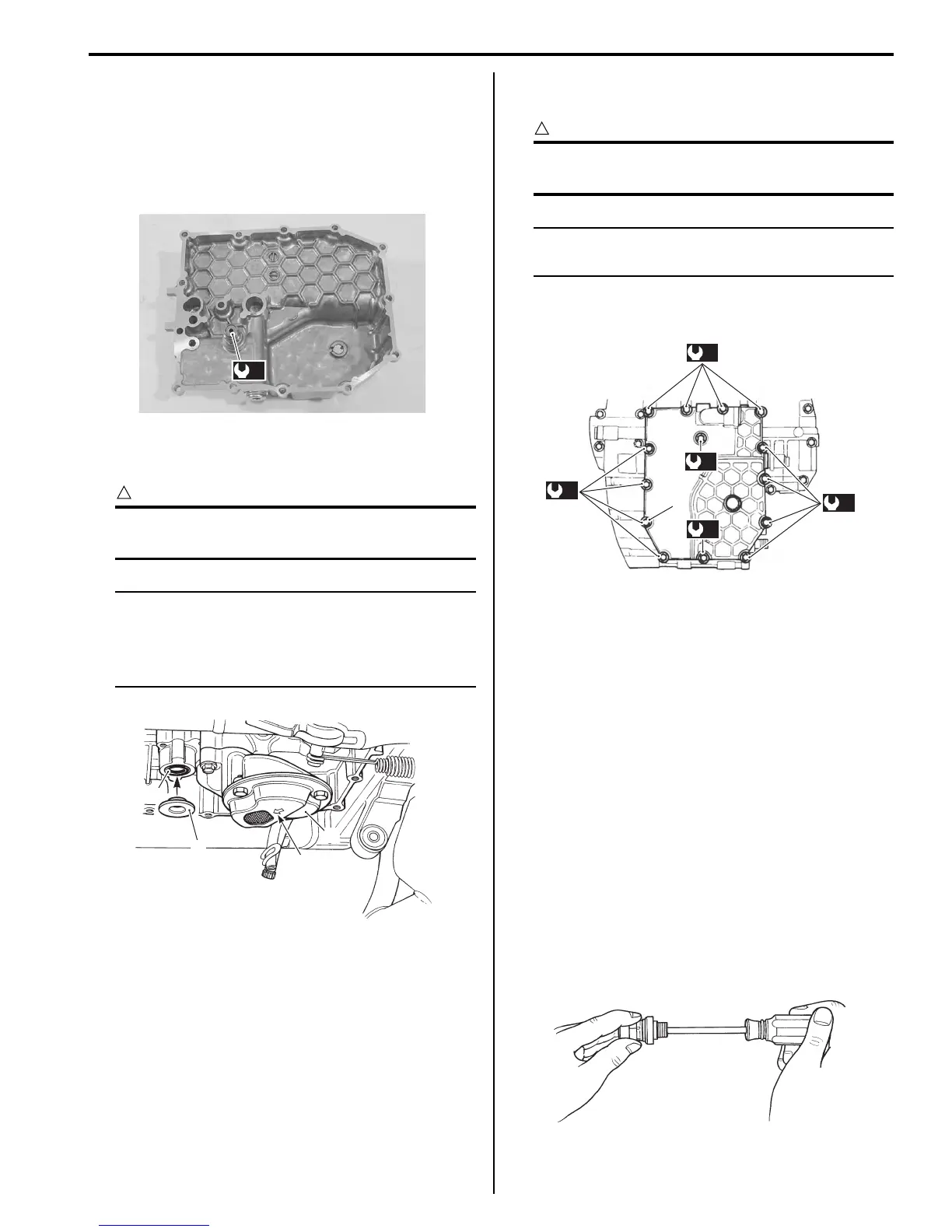

Engine Lubrication System: 1E-5
Installation
1) Tighten the oil pressure regulator to the specified
torque.
Tightening torque
Oil pressure regulator (a): 28 N·m (2.8 kgf-m,
20.0 lb-ft)
2) Install the oil sump filter (1).
3) Install a new O-ring (2) and shim (3).
CAUTION
!
Replace the gasket and O-ring with new ones
to prevent oil leakage.
NOTE
• When installing the oil sump filter, make
sure that the arrow mark “A” points
towards the front of the motorcycle.
• Do not loose the O-ring (2) and shim (3).
4) Install a new gasket and the oil pan. Tighten the oil
pan bolts to the specified torque.
CAUTION
!
Replace the oil pan gasket and gasket
washer with new ones to prevent oil leakage.
NOTE
Install a new gasket washer (4) to the oil pan
bolt as shown.
Tightening torque
Oil pan bolt (b): 14 N·m (1.4 kgf-m, 10.0 lb-ft)
5) Install the oil cooler hose. Refer to “Oil Cooler / Oil
Cooler Hose Removal and Installation: in Section
1F”.
6) Install the exhaust pipe and muffler. Refer to
“Exhaust Pipe / Muffler Removal and Installation: in
Section 1K”.
7) Pour engine oil. Refer to “Engine Oil and Filter
Replacement: in Section 0B”.
Oil Pressure Regulator Inspection
B649G11506024
Inspect the oil pressure regulator in the following
procedures:
1) Remove the oil pressure regulator. Refer to “Oil Pan
/ Oil Sump Filter / Oil Pressure Regulator Removal
and Installation: ”.
2) Check the operation of the oil pressure regulator by
pushing on the piston with an appropriately shaped
tool. If the piston does not operate, replace the oil
pressure regulator with a new one.
(a)
I649G1150006-03
1
2
3
“A”
I649G1150007-01
4
(b)
(b)
(b)
(b)
(b)
I649G1150008-01
I649G1150009-01
