Lighting Systems: 9B-1
Lighting Systems
Repair Instructions

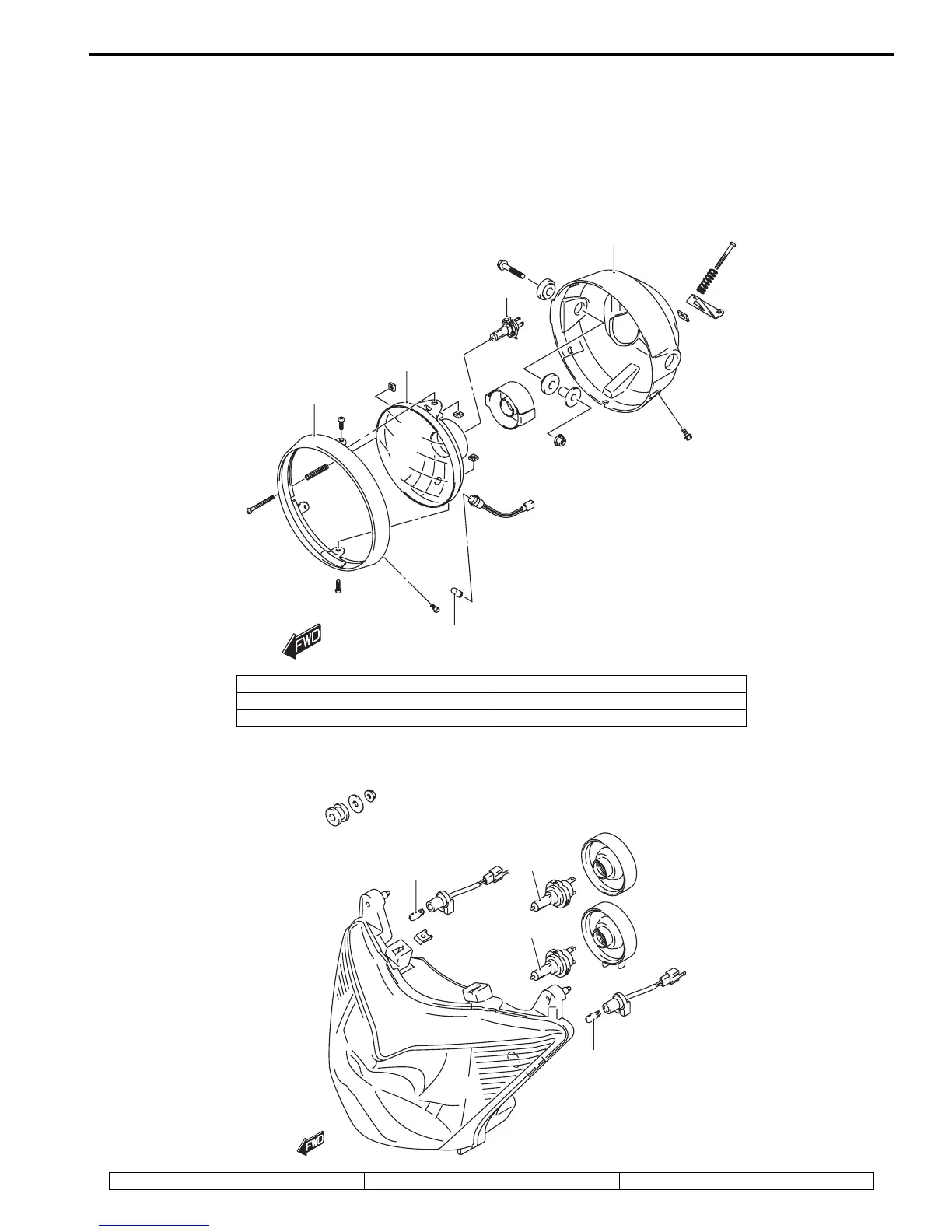

Headlight Components
B649G19206001
GSF1200
GSF1200S
4
3
2
1
5
I649G1920001-02
1. Headlight rim 4. Headlight housing
2. Headlight unit 5. Position light bulb (12 V 5 W)
3. Headlight bulb (12 V 60/55 W, H4)
1
3
2
3
I649G1920002-03
1. Headlight high beam bulb (12 V 55 W, H7) 2. Headlight low beam bulb (12 V 55 W, H7) 3. Position light bulb (12 V 5 W x 2)

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
