Rear Suspension: 2C-6
Cushion Lever Bearing

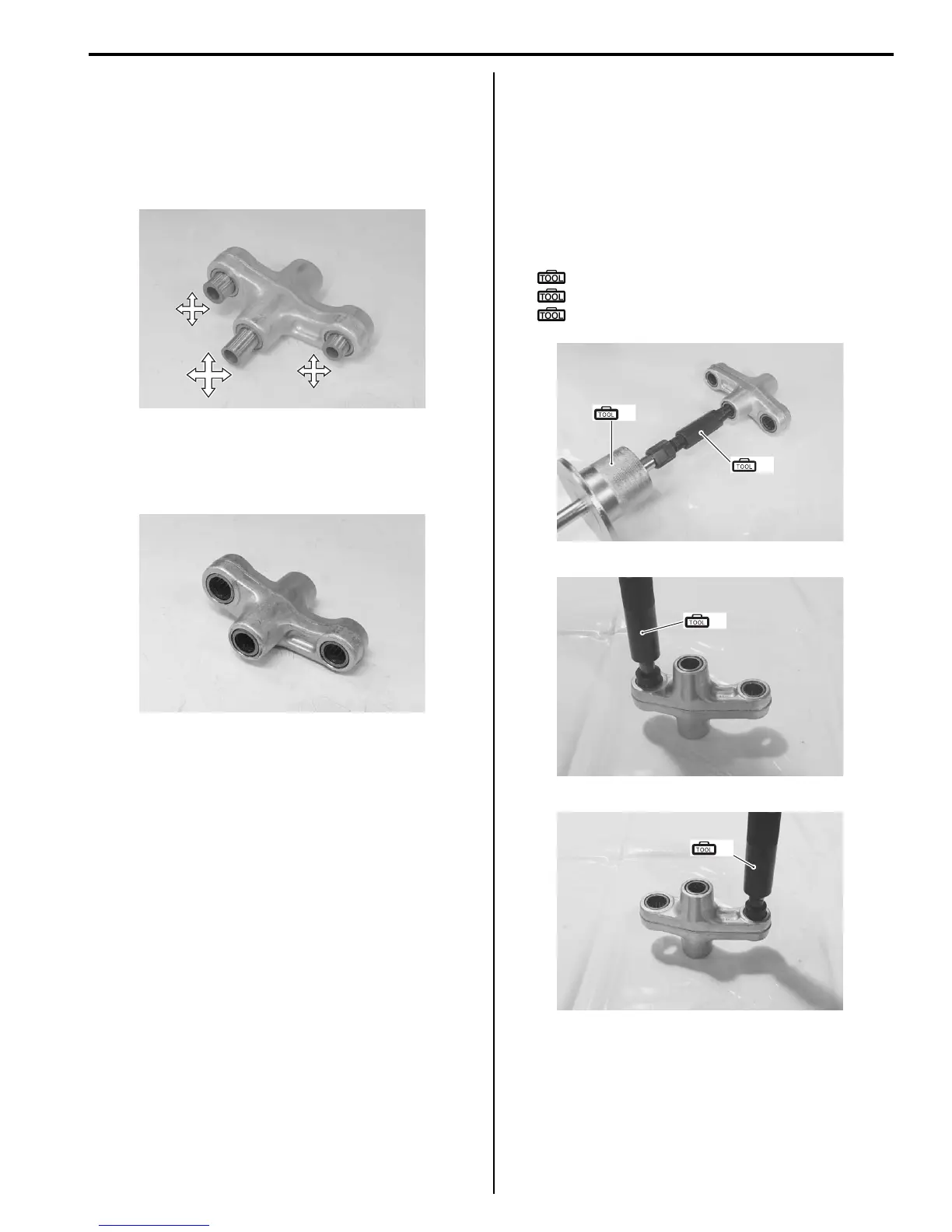

1) Insert the spacers into bearings.
2) Check the play by moving the spacers up and down.
If excessive play is noted, replace the bearing with a
new one. Refer to “Cushion Lever Bearing Removal
and Installation: ”.
Cushion Lever
Inspect the cushion lever for damage. If any defect is
found, replace the cushion lever with a new one.
Cushion Rod
Refer to “Swingarm Related Parts Inspection: ”.
Cushion Lever Bearing Removal and
Installation
B649G12306015
Removal
1) Remove the cushion lever. Refer to “Rear Shock
Absorber Removal and Installation: ”.
2) Remove the cushion lever bearings using the special
tools.
Special tool
(A): 09923–73210 (Bearing remover)
(B): 09930–30102 (Sliding shaft)
(C): 09913–70210 (Bearing installer set)
I649G1230011-01
I649G1230012-01
(A)
(B)
I649G1230013-02
(C)
I649G1230014-02
(C)
I649G1230015-02
