5B-22 Manual Transmission:
Gearshift Lever Height Inspection and
Adjustment
B649G15206039

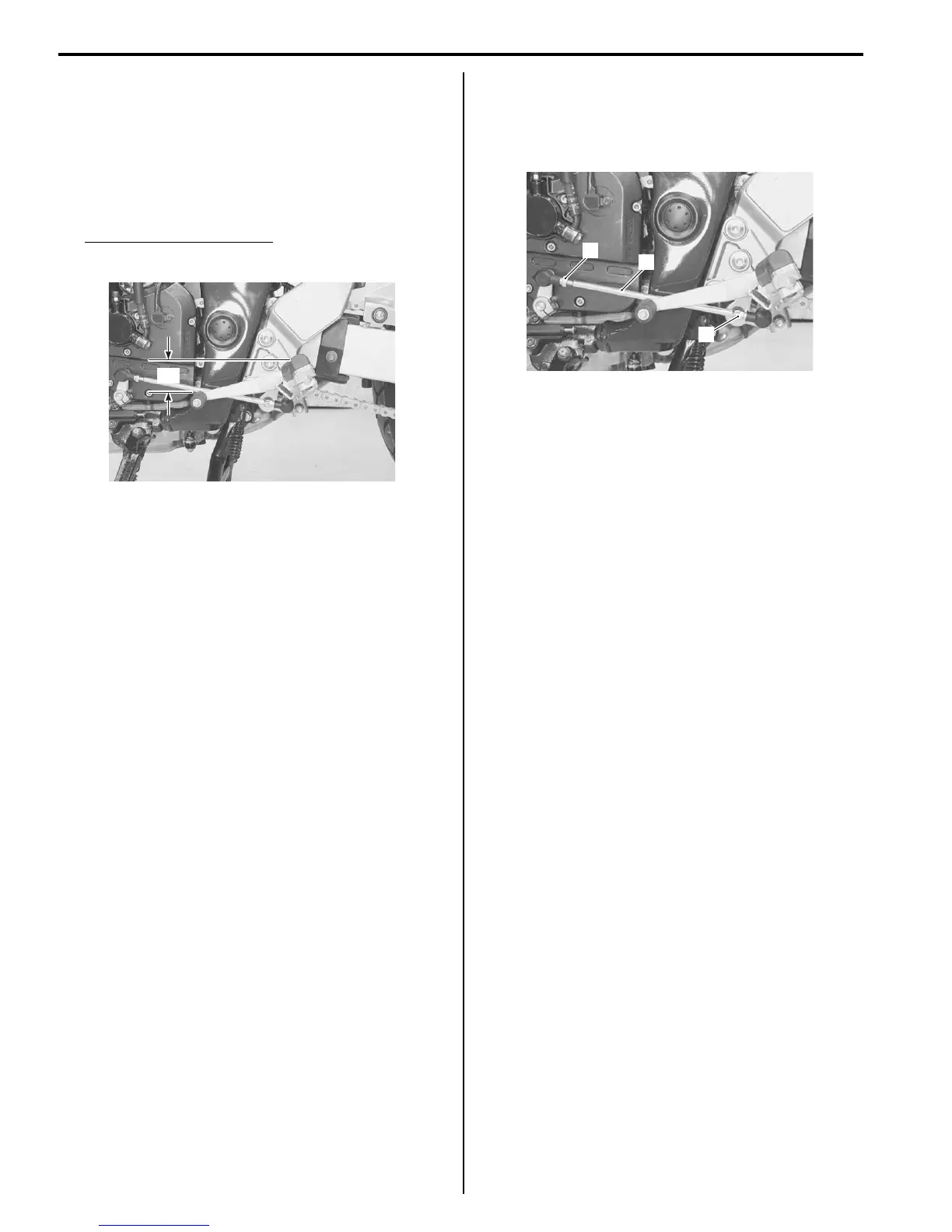

Inspect and adjust the gearshift lever height in the
following procedures:
1) Inspect the gearshift lever height “a” between the
pedal top face and footrest.
Adjust the gearshift lever height if necessary.
Gearshift lever height “a”
Standard 55 mm (2.2 in)
2) Loosen the lock-nuts (1).
3) Turn the gearshift link rod (2) until the gearshift lever
is 55 mm (2.2 in) below the top of the footrest.
4) Tighten the lock-nuts securely.
“a”
I649G1520082-01
1
1
2
I649G1520083-01

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
